R6
Greatcity
8462219000

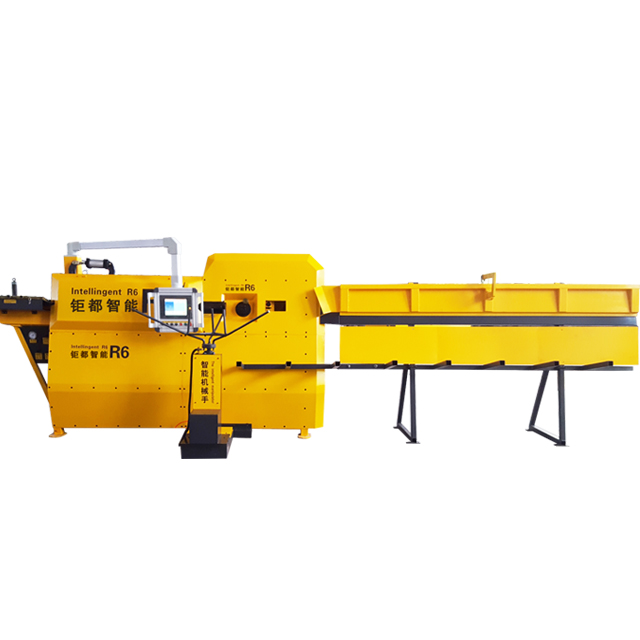

2D cnc stirrup bending machine from feeding, descaling, straightening extends curved shape, cut a variety of processes single one alive, directly produced a variety of specifications of various sizes, fully meet the design requirements . A variety of specifications can be processed in various sizes square, rectangle , diamond, polygon, etc.
CNC Rebar Stirrup Bending Machine can automatically complete straightening steel , length, bend-shaping and cutting and other functions , saving time , high production efficiency can be achieved automatic , uninterrupted processing operation .
2D cnc stirrup bending machine is widely used in railways ,highways , bridges , real estate, steel plants and other larges areas.
Stirrup bender properties: automatic straightening, bending and cutting in one shape.
Hydraulic Control
Accuracy<1mm
Bending shape>800
Max bending diameter 14mm
R6 2D cnc stirrup bending machine technical specification:
Model | R6 |
Single bar diameter (mm) | 5-10 |
Double bar diameter (mm) | 5-8 |
Max bending angle ( °) | 180 |
Max towing speed (m / min) | 60 |
Max bending speed ( °/ sec ) | 800 |
Length accuracy (mm) | 1 |
Angular accuracy ( °) | 1 |
Number of processing | 2 |
Power (kw) | 21 |
Shape processing (kinds) | 500 |
Working temperature (℃) | -5 -- 40 |
Weight (kg) | 1980 |
Dimensiion (mm) | 3300*1000*1980 |
Average power(kw / h) | 5 |
R6 2D cnc stirrup bending machine video link on youtube
https://www.youtube.com/watch?v=3OYruHNWVR0
Characteristic of 2D cnc stirrup bending machine
1.Automatic wire feeding system ( CNC ).
2.Moveable air compressor design, to ensure better cooling effect, easy transportation and installation
3.Split, multi-blade design to reduce consumption costs
4.Large storage capacity can save 500 processing geometric graphics, high degree automation
5.Automatic double wire intake system, high processing efficiency
6. High power feeding motor to ensure bending bar accuracy.
7.The intelligent fault identification alarm system maintenance more convenient
8. Aerodynamic design observation door, easy adjustment and maintenance, and more security and fast.
9.Heavy-duty design line planes, equipped with a brake and buffer device can prevent chaotic lines caused by downtime
10. High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with lower operating costs
11. 12S type - Touch-screen pannel, easy to operate, and more fast
1. What is the materials using for 2D cnc stirrup bending machine ?
Round steel and thread steel;
2. What is the max bending diameter?
Max bending diameter is 14mm;
3. Can you make the english language or other language of the CNC control system for the customers?
Yes. Of course. We can make different language for the cnc control. Just tell us which language you need;
4. Can you change the machine's color for the customers?
Yes. We can make the color as what you want;
5. What is the delivery time?
If we have machines in stock, delivery time is 2-3 days. If we don't have the stock. The delivery time is 5-8 days;
Packing of 2D cnc stirrup bending machine ?
1. 1 pc wood case , weight 1980kg,dimension:3300*1000*1980mm.
2. The packing can do as customers' requirement.
Shipping
By sea to your nearest port;
By air to your nearest airport;
By express (DHL,UPS,FEDEX,TNT,EMS)to your door;
Ship to the warehouse in China according to the customers’ requirement
Quality gurantee
12months Quality warranty period (after put into operation formally).
Provide technical guide for dust collector forever.
After Quality Warranty period, will provide the spare parts with cost price.
All the machines provided by our factory will be tested before ship.
