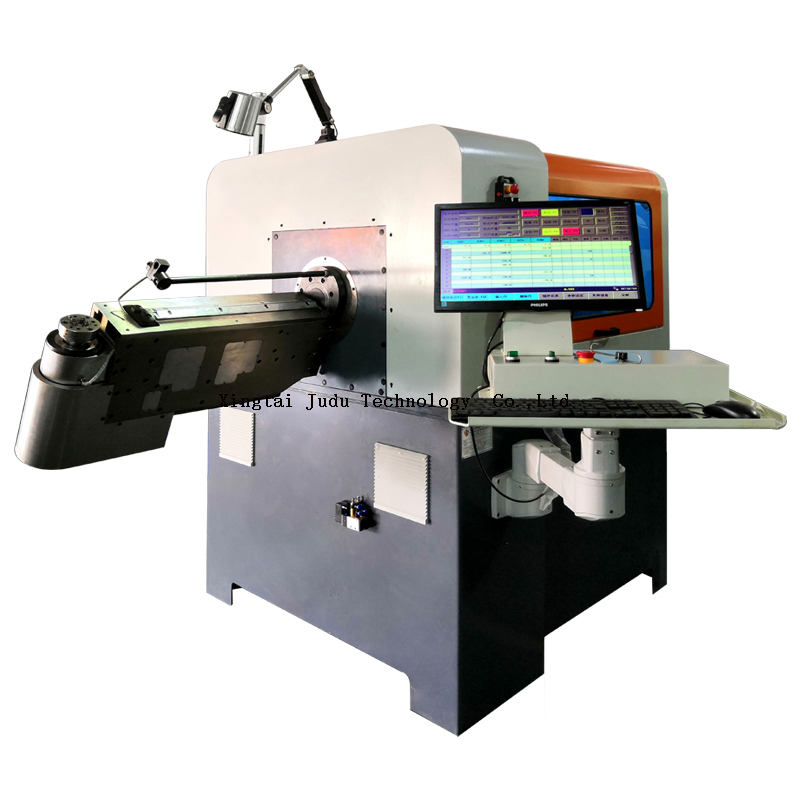

Car Curtain Wire Bending Machine technical specification
Note that any customization is permissible
Model | ZD-3D-5012 |
Production scope | 5-12MM iron Wire 4-10MM Steel wire
|
Processing stroke | 550MM |
Line speed | 1 meter per second
|
Rotating arm servo motor power | 3.5KW
|
Wire feeding servo motor power | 5.5KW |
Folding angle servo motor power | 3.8KW
|
Lifting servo motor power | 1.0KW |
cutting servo motor power | 2.0KW |
Automatic wire feeder | 2500KG |
Threading wheel | 5.0/6.0/7.0/8.0/9.0/10.0/11.0/12.0 |
Folding column | 5.0/6.0/7.0/8.0/9.0/10.0/11.0/12.0 |
Twisted | 5.0/6.0/7.0/8.0/9.0/10.0/11.0/12.0 |
Cutting tool mold | standard one for large / medium / small
|
Application | Suitable for production of planar three-dimensional wire bending molding products |
Car Curtain Wire Bending Machine on youtube :
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Car Curtain Wire Bending Machine
Packing: In standard export wooden case
Delivery time:within 15 days after receiveing your advanced payment.
Payment terms:. 30%T/T in advanced payment,the left payment should be paid after we finish our production.( we will take machine and packing photoes for your checking )
We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him ASAP.
