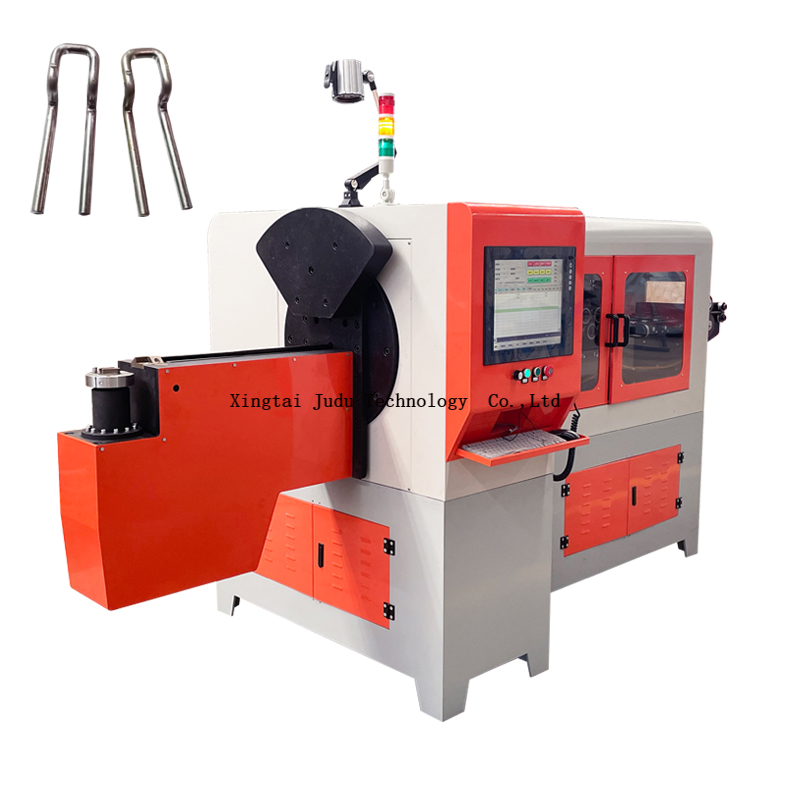

3d cnc Wire Bending Machine Structural principle
1. The precision servo motor drives the wire reel to rotate. The professional line forming machine computer system is used to control each drive to perform various steps. The servo motor slow-rise ramp-down curve and servo motor speed can be arbitrarily modified according to the need to eliminate the impact of mechanical transmission. , to ensure that the actual length of the transmission line is consistent with the theoretical calculation length;
2. In the design budget, the length of each MM has been divided into 10 segments of pulses, further ensuring the accuracy of the setting of the line can be controlled at 300 ± 10 wire;
3, adjustable servo shear cutting, can ensure the neatness of the circle cut, the cutting time and the retracting time can be directly modified on the text display;
4, the design has manual slow feeding, slow returning function, easy to operate, reduce material loss
3d cnc Wire Bending Machine technical specification
| No. of Axis | 5 axis | 5 axis | |
input OD of Wire | hard material: 3-7mm soft material:4-8mm | hard material: 4-8mm soft material:5-12mm | |
No. of Feeding Round | 4 set | 4set | |
Power of Wire Feeding Motor | 5.5kw | 5.5kw | |
Send shaft reducer | 1:5 | 1:10 | |
Power of Turning Motor | 5.5kw | 5.5kw | |
Power of Wire Cuter Motor | 1.0kw | 1.0kw | |
Power of Moving Motor | 1.0kw | 1.0kw | |
Power of Angle Control Motor | 2.0kw | 2.0kw | |
Angular speed reducer | 1:5 | 1:10 | |
Weight of Machine | 3800kg | 3800kg | |
machine voltage | 380V/50HZ/3PH | 380V/50HZ/3PH | |
mahcine size | 3600mm X 1600mm X 2070mm | 3600mm X 1600mm X 2070mm | |
3d cnc Wire Bending Machine Features
1. The fluctuation of the power supply current and voltage for more than 1 second should be within ±5%, and the equipment can operate normally.
2. The distance between the automatic feeding frame and the host is more than 2000mm.
3. The device is equipped with a USB interface for data reading.
4, the computer operating system can access the Internet to achieve remote control and operation. Production efficiency and output There is a display on the man-machine interface, and the equipment can be automatically shut down after the specified output is reached.
5. After the equipment is used, the gear box and the guide rail slider should be regularly greased for 60 working days.
