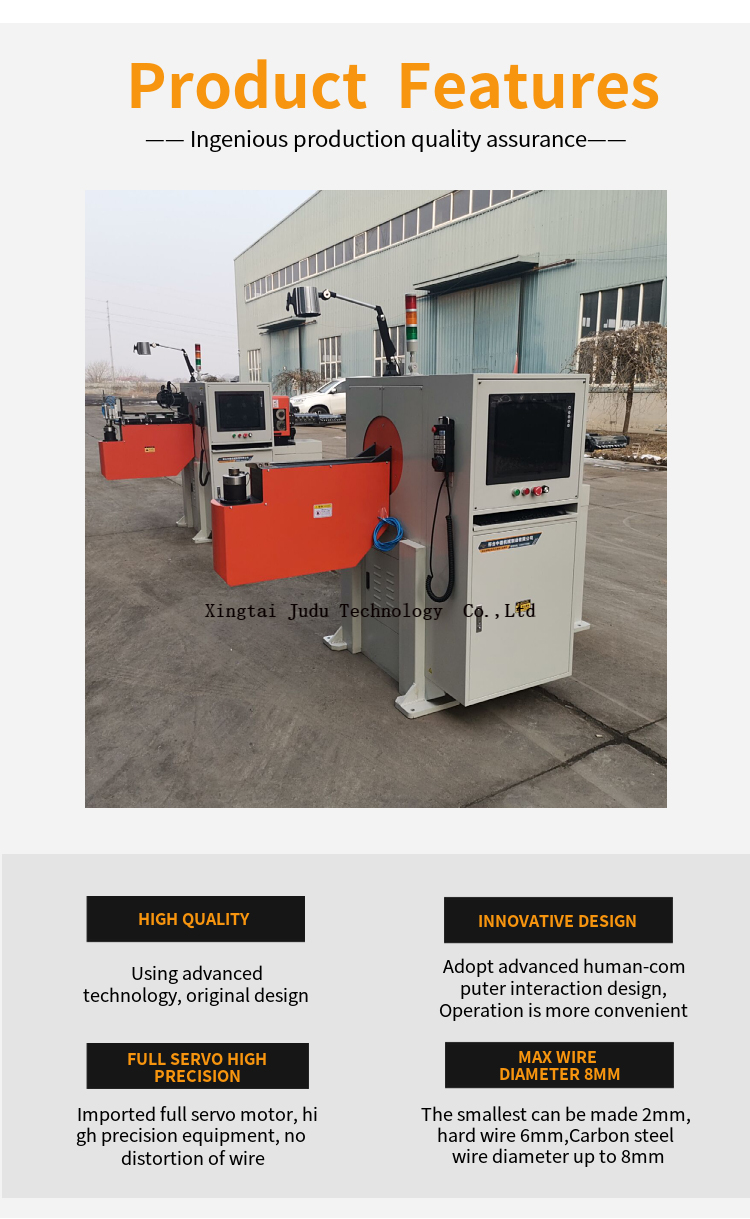

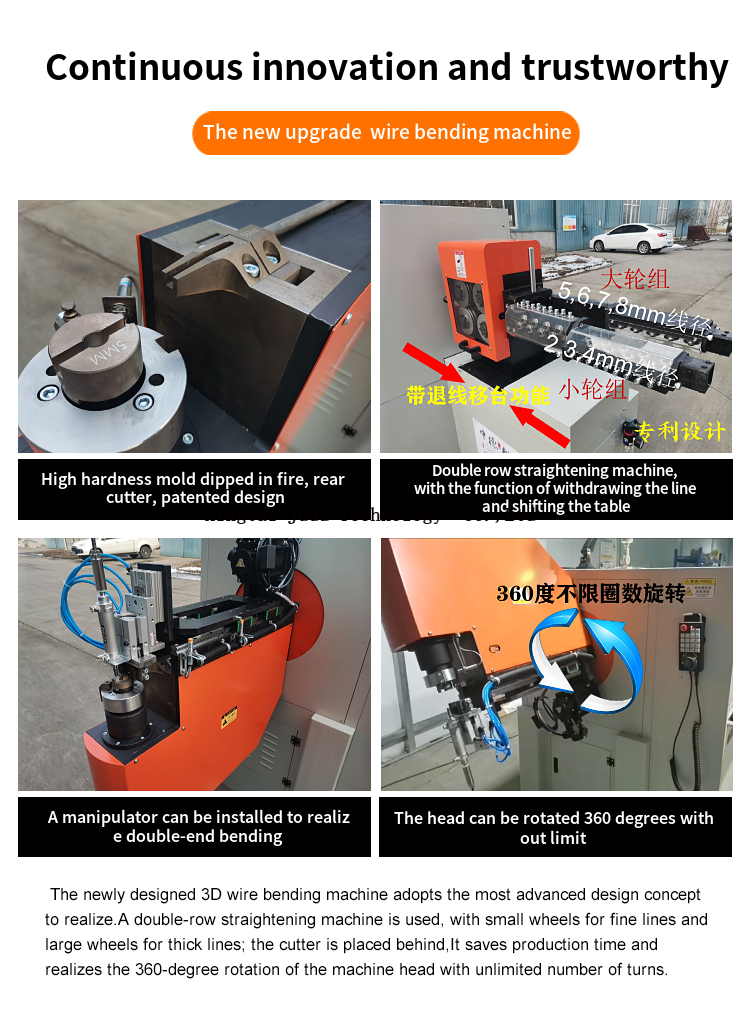

1.Adopt dedicated computer system by Taiwan 3d wire bender machine and imported high-density servo motor.
2.Easy to operate, accurate positioning and can store hundreds of different processing procedure, shorten the time for the next time debugging
3.According to the situation on the screen, can modify Angle at any time.
4.When there is no line, broken line or tangled lines, automatic stop designed. And the line automatic acceleration make production easier and effective.
5.Applicable to products: car seat suspension spring, visor skeleton, car lock rod, wire arts and crafts, clean tableware bracket, storage cage, shopping carts, etc
Pls contact freely, i will show more testing video 3d wire bender machine as your request.

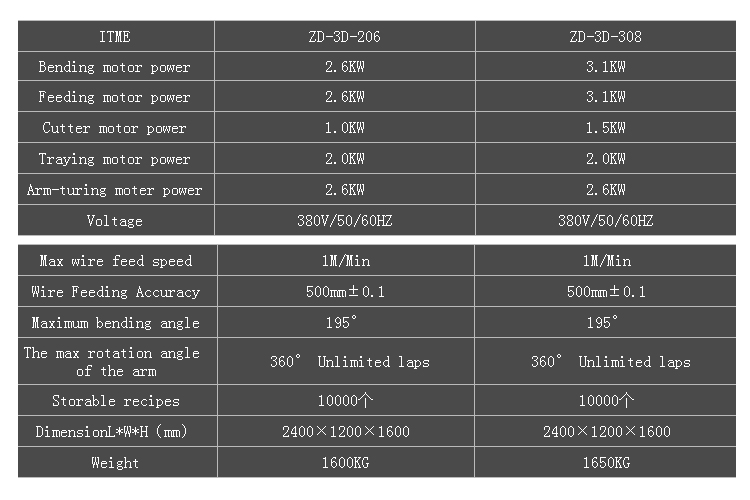

3d wire bender machine technical specification
Note that any customization is permissible
Model | 3D |
Diameter | Steel: 2-6 mm Ordinary wire: 3-8 mm |
Type | hydraulic |
Hydraulic power motor | 2.2 kW |
Motor power servo motor | 5.5 kW |
Feeding wire | 10000.00 mm |
Traction Servo speed | 1:20 |
Molding/ turning speed | 1:5 |
Molding /turning power | 3.8*2 kW |
Lifting/ turning servo | 1:5/1:20 |
Lifting / turning servo | 0.75*2 kW |
Control shaft system | 5 |
Molding machine size | 3*1.35*1.95 mm |
Motorized machine size | 1*1*0.75 mm |
Input voltage | 380V/50Jz/3Ph |
Net weight | 2.8 T |
3d wire bender machine video on youtube :
Application:
3d wire bender machine is mainly used in automobile parts industry, including automobile seat steel wire, automobile seat parts forming, pet cage forming, kitchen and bathroom hardware parts forming, garden tool parts forming, electronic products forming, toy parts forming, electrical parts forming, sports automobile parts forming, stationery parts forming, instrument parts forming, instrument parts forming, hair accessories forming All kinds of high-precision metal wire forming parts required for parts forming, kitchen and bathroom hanging parts forming, crafts forming, supermarket shelf parts forming, etc.
Pre-sale Service
1.Supply item design,process design.
2.Help you to chose the fitest machine.
3.Making the machine according to your requirement.
Sale Service
1.Acceptance equipment together with you .
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for 2 years .
2. 3d wire bender machine arrives at the user manufacturer. Our company dispatches technicians to install the machine free of charge and conduct free on-site training. The training content includes equipment operation, maintenance and basic maintenance.
3, the folding machine is free of charge for two years. During the warranty period, the product is in normal use and the product cannot operate normally. Our company is responsible for free warranty and replacement of spare parts; beyond the warranty period, our company only charges spare parts cost and maintenance service fee. The product provides a lifetime service.
3d wire bender machine
Packing: In standard export wooden case
Delivery time:within 15 days after receiveing your advanced payment.
Payment terms:. 30%T/T in advanced payment,the left payment should be paid after we finish our production.( we will take machine and packing photoes for your checking )
We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him ASAP.
FAQ
Q1: Is it easy to operate your 3d wire bender machine?
A1: Yes, very easy. No need special training actually, we will send you operation videos, and you or your worker will clearly know how to operate and how to adjust the height.
Of course, if you feel necessary to be trained, customer could come to our factory, or we send technician to customer's country.
Q2: what is the power supply of machine?
A1: generally it is 380V, 3PH, 50HZ, but we could also make 400V/420V/440V/ 50HZ/60HZ, as customer requires.
Q3: what is the steel bar diameter your machine could deal with?
A3: 4mm, 5mm, 6mm, 7mm, 8mm etc. One machine work with one wire diameter.
Q4: what is the machine warrenty:
A4: 13 months after machine delivering from our factory. ( we give one month more for considering shipping time)
Contact us:
