ZD-2D-206
Greatcity
8463300000

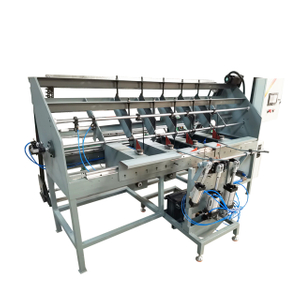

Judu Technology has experience to provide some new technology to make life better. With its developed and fast R&D work, GreatCity makes the difference to develop the type of machine that it is more useful in different area, especially, in construction. And if any buyer would try to find any way to facilitate to work in his/her project, GreatCity is here to support you either in offering a high quality machine or for an after sale service. One of the particular service that GreatCity Technology is offering you a new Two-dimensional Wire Forming Machine With Butt Welding with a high design to reproduce many profiles of shape that you need to make.
Two-dimensional Wire Forming Machine With Butt Welding technical specification :
Model | ZD-2D-206 |
number of axles | 3 |
processing wire dameter range | 2—6mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 100 |
Servo motor power of feeding shaft(kW) | 1.5 |
Power of Servomotor for Cutter Shaft(kW) | 1.5 |
Power of Folded Axis Servomotor(kW) | 1.5 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 25-30pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 600 |
Dimension (length*width*height mm) | 2400×1000×1400 |

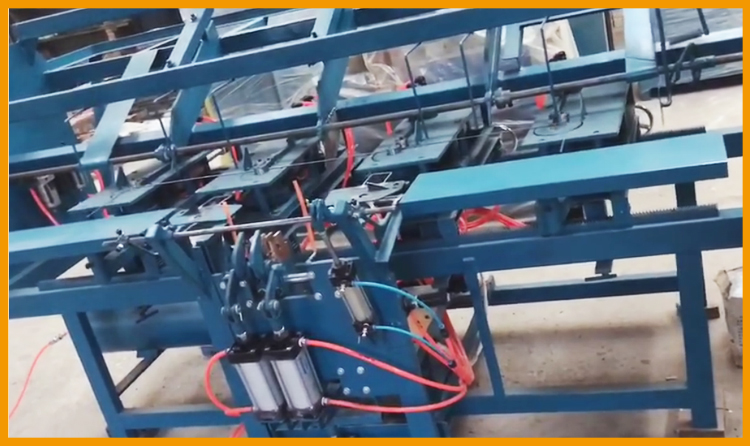

1. A CNC automatic wire forming machine. The angled parts cooperate with each other to produce different products. The commissioning time is short. For new products, only simple adjustments are needed. After commissioning, the products can be produced and the delivery speed can be improved.
2. The function of the transfer line is made by the rotation of the wire itself, which makes the production of multi-angled corners more convenient, faster and faster.
