ZD-2D-612
Greatcity
8463300000

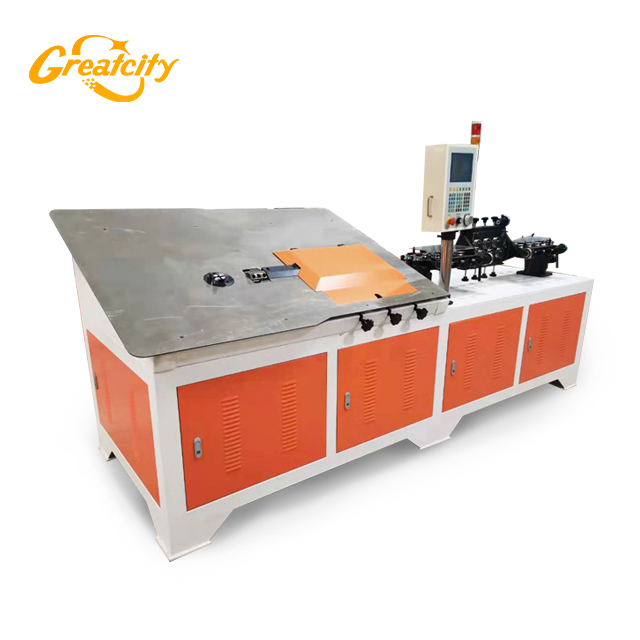

16mm Wire Bending Machines is to produce kinds of 2D wire forms expertly with high precision and fast speed. Adopts brand servo motor and screen display with top controller.
Advantages & Feature:
1. The error of full servo motor is smaller, the bending efficiency is higher, and the error is smaller than that of similar products of hydraulic press.
2. CNC operation is simpler and easier to learn than the same type of PLC products. Generally, the simple program can be edited by oneself within half an hour with elementary school education.
3. Because all the servo motors are used, there will be no hydraulic failure, the failure rate is lower, the scrubbing is more convenient, and the pollution caused by oil pollution will not occur.
16mm Wire Bending Machines Application field :
1)Auto Industry area
2)Metal wire industry
3)Display table and cargo shelf
4)Furniture and Kitchen
5)Hardware industry
6)Mattress, Sofa spring area
7)Architecture area
8)Hardware Artcraft
ZD-2D-612 model 16mm Wire Bending Machines technical specification:
Model | ZD-2D-612 |
number of axles | 3 |
processing wire dameter range | 6—12mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 22 |
Servo motor power of feeding shaft(kW) | 4.5 |
Power of Servomotor for Cutter Shaft(kW) | 2.3 |
Power of Folded Axis Servomotor(kW) | 3.8 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 20-24pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 2300 |
Dimension (length*width*height mm) | 3250×1200×1300 |
16mm Wire Bending Machines video link on youtube :
The process shapes of automatic 16mm Wire Bending Machines
Our machine could process 500 kinds shapes
Main accessories of wire bending machine
16mm Wire Bending Machines
Packaging
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
FAQ:
1.what is 16mm Wire Bending Machines Packaging?
Free fumigation safe Wood case package.
2.what is MOQ?
1set can be acceptable for trail order.
Over 1 sets can have wholesale price. Welcome to join us as our sales agent in your market.
3.can we do OEM and ODM?
Can changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
4.what is your warranty?
Warranty 1 year
5.what time for delivery?
7-10 days for our own design.(motor:380v 50hz 3phases)
15-20 days for cusmoized model.
6.How to do payment?
TT, 40-50% in advance as deposit ,balanced paid off when we finish the production and test well before shippment.
16mm Wire Bending Machines is to produce kinds of 2D wire forms expertly with high precision and fast speed. Adopts brand servo motor and screen display with top controller.
Advantages & Feature:
1. The error of full servo motor is smaller, the bending efficiency is higher, and the error is smaller than that of similar products of hydraulic press.
2. CNC operation is simpler and easier to learn than the same type of PLC products. Generally, the simple program can be edited by oneself within half an hour with elementary school education.
3. Because all the servo motors are used, there will be no hydraulic failure, the failure rate is lower, the scrubbing is more convenient, and the pollution caused by oil pollution will not occur.
16mm Wire Bending Machines Application field :
1)Auto Industry area
2)Metal wire industry
3)Display table and cargo shelf
4)Furniture and Kitchen
5)Hardware industry
6)Mattress, Sofa spring area
7)Architecture area
8)Hardware Artcraft
ZD-2D-612 model 16mm Wire Bending Machines technical specification:
Model | ZD-2D-612 |
number of axles | 3 |
processing wire dameter range | 6—12mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 22 |
Servo motor power of feeding shaft(kW) | 4.5 |
Power of Servomotor for Cutter Shaft(kW) | 2.3 |
Power of Folded Axis Servomotor(kW) | 3.8 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 20-24pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 2300 |
Dimension (length*width*height mm) | 3250×1200×1300 |
16mm Wire Bending Machines video link on youtube :
The process shapes of automatic 16mm Wire Bending Machines
Our machine could process 500 kinds shapes
Main accessories of wire bending machine
16mm Wire Bending Machines
Packaging
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
FAQ:
1.what is 16mm Wire Bending Machines Packaging?
Free fumigation safe Wood case package.
2.what is MOQ?
1set can be acceptable for trail order.
Over 1 sets can have wholesale price. Welcome to join us as our sales agent in your market.
3.can we do OEM and ODM?
Can changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
4.what is your warranty?
Warranty 1 year
5.what time for delivery?
7-10 days for our own design.(motor:380v 50hz 3phases)
15-20 days for cusmoized model.
6.How to do payment?
TT, 40-50% in advance as deposit ,balanced paid off when we finish the production and test well before shippment.
