ZD-2D-308
Greatcity
8463300000
wire bending cutting machine

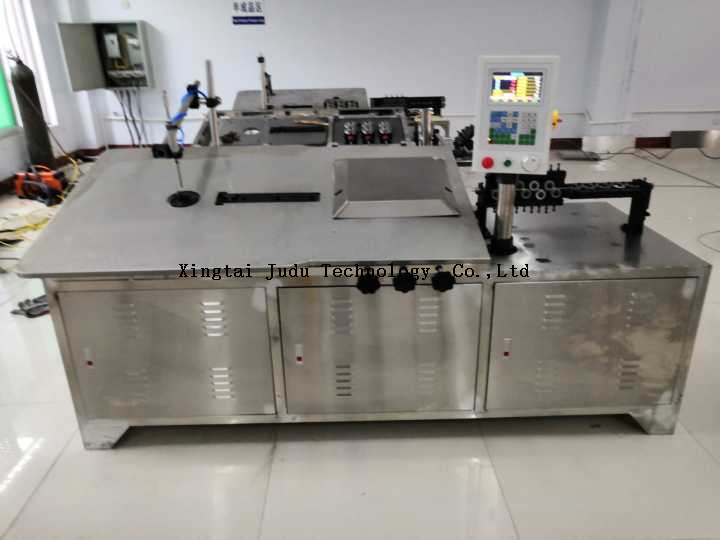

2D wire bending machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Mitsubishi servo motor and screen display with Taiwan controller. It is combined with hydraulic system .
D-2D-308 model wire bending cutting machine technical specification:
Model | ZD-2D-308 |
number of axles | 3 |
processing wire dameter range | 3—8mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 22 |
Servo motor power of feeding shaft(kW) | 2.6 |
Power of Servomotor for Cutter Shaft(kW) | 2.0 |
Power of Folded Axis Servomotor(kW) | 2.0 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 20-24pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 800 |
Dimension (length*width*height mm) | 3000×1000×1400 |
wire bending cutting machine video link on youtube :
https://www.youtube.com/embed/eeFWDMDSQjc?si=97KvVO0vICSzl9aa
Application of wire bending cutting machine:
1. Forming of automobile parts, forming of automobile seat frame, forming of door lock pull rod, forming of serpentine spring, forming of bicycle parts, forming of basket, etc;
2. Daily hardware: kitchen display frame forming, shelf bending, eggbeater bending, cabinet basket bending, refrigerator grid forming, toilet shelf forming;
III. molding of iron wire process products, lighting products, fishing gear accessories products, including wine rack molding, domestic fruit tray molding, garden gardening flower rack molding, Christmas wire gift molding;
IV. pet cage forming;
V. hook forming;
Design concept of wire bending cutting machine:
It can be produced without straightening the material and opening the mold. What shape do you need to bend? As long as it is on a plane, our machine can meet your needs.
It is suitable for iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square and flat wire), square (bent), round, hexagon, ellipse and irregular shape, various plane buckles, various hooks, etc.
It is mainly designed for the molding of various wire rods, such as wire crafts, hardware kitchen and bathroom hanging rack, daily hardware, auto parts, sun visor framework, square snake spring, special-shaped spring, pet cage breeding cage, supermarket hook, wire basket, bicycle parts, lighting lampshade, gardening flower rack, etc., with full processing ability and high processing speed and precision.
Our Company:
Xingtai judu technology company is a professional wire bending cutting machine manufacturer integrating scientific research, production and sales, with an annual production capacity of 1000
The company has a professional technical team, with the concept of "focusing on quality, attentive service" to seek development, looking forward to the presence of new and old customers and friends, and create the future together!
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
