ZD-2D-206
zhongde machinery
8463300000
|
Product Description
Application Video
https://www.youtube.com/embed/p3MkYQa0pgk?si=nNkV7MKalu2-8bTK

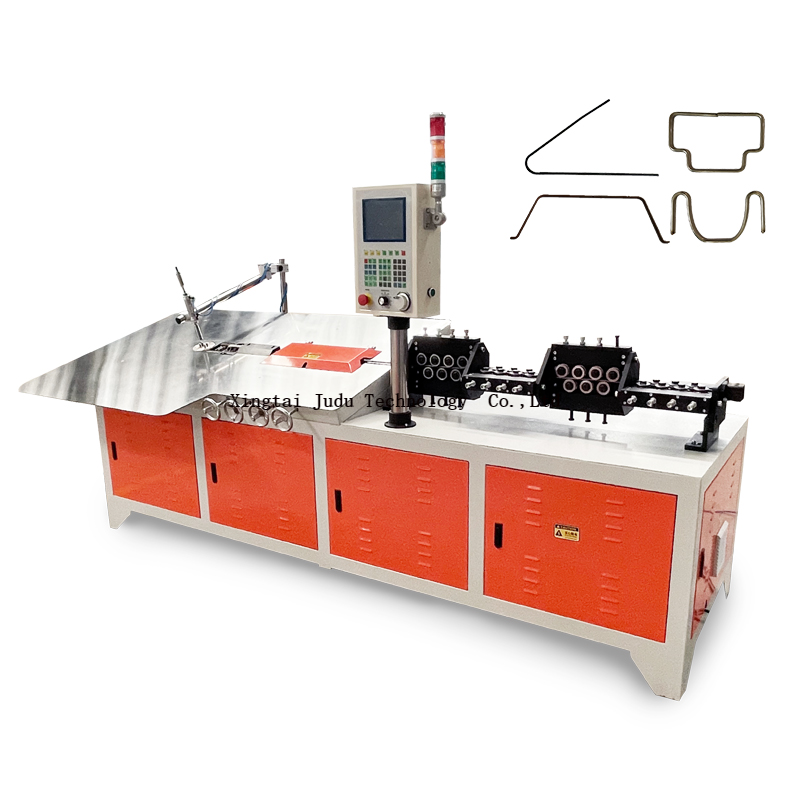

ZD-2D-206/ZD-2D-308 automatic wire bending machine technical parameter | ||||||
ITEM | ZD-2D-206 | ZD-2D-308 | ITEM | ZD-2D-206 | ZD-2D-308 | |
Diameter | 2-6mm | 3-8mm | Total power | 6.7kw | 7.8kw | |
Feeding servo | Motor | 2.6kw | 3.8kw | Cylinder Matching | 0.5mpa | 0.5mpa |
speed ratio | 1:8 | 1:8 | No of Motor | 3pcs | 3pcs | |
Cutting servo | motor | 1.5kw | 2.0kw | No of Reducers | 3pcs | 3pcs |
speed ratio | 1:10 | 1:10 | Output | 10-30pc/min | 10-30pc/min | |
Bending motor | Motor | 2.6kw | 3.8kw | weight | 600kg | 650kg |
speed ratio | 1:8 | 1:8 | Dimension | 2500*950*1400mm | 2500*950*1400mm |
Comment & FAQ
We are a high quality supplier of Alibaba. We will compensate you according to the contract stipulation for the machines that are transacted according to the credit guarantee order.
