| Usage: | |
|---|---|
| Raw Material: | |
| Power: | |
| Key Selling Points: | |
| Application: | |
| Quantity: | |

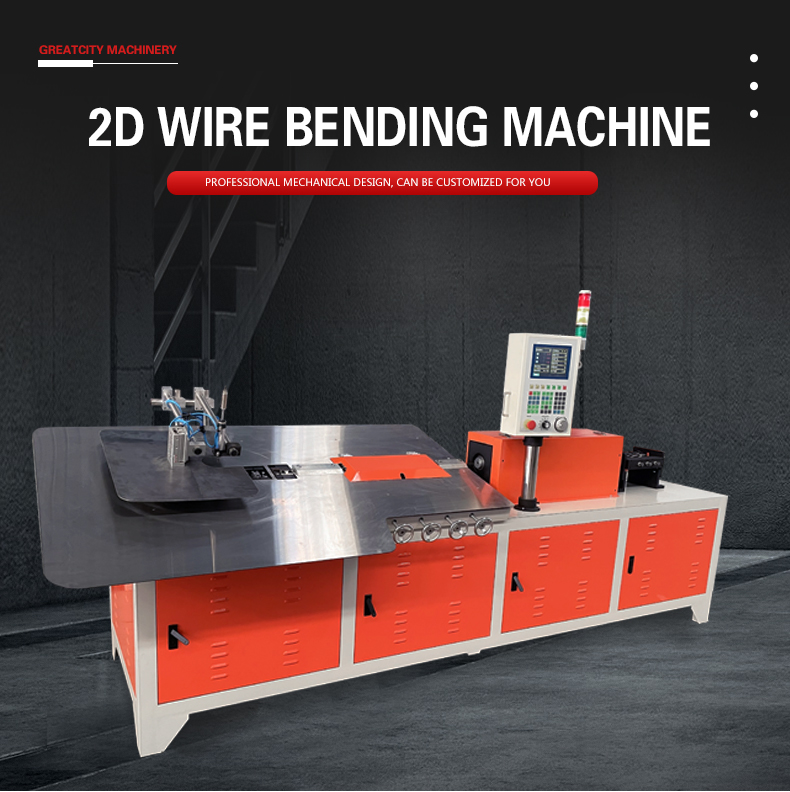

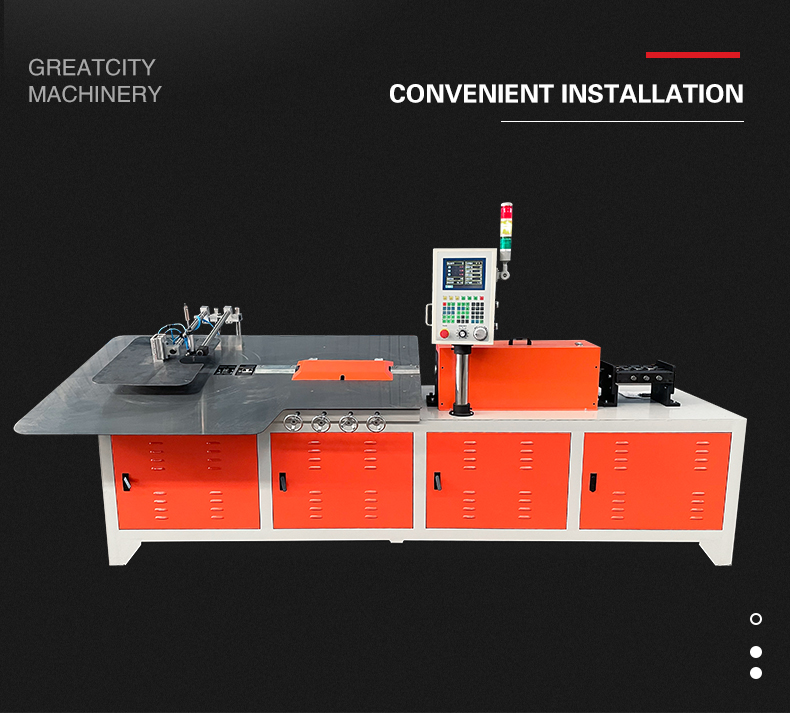

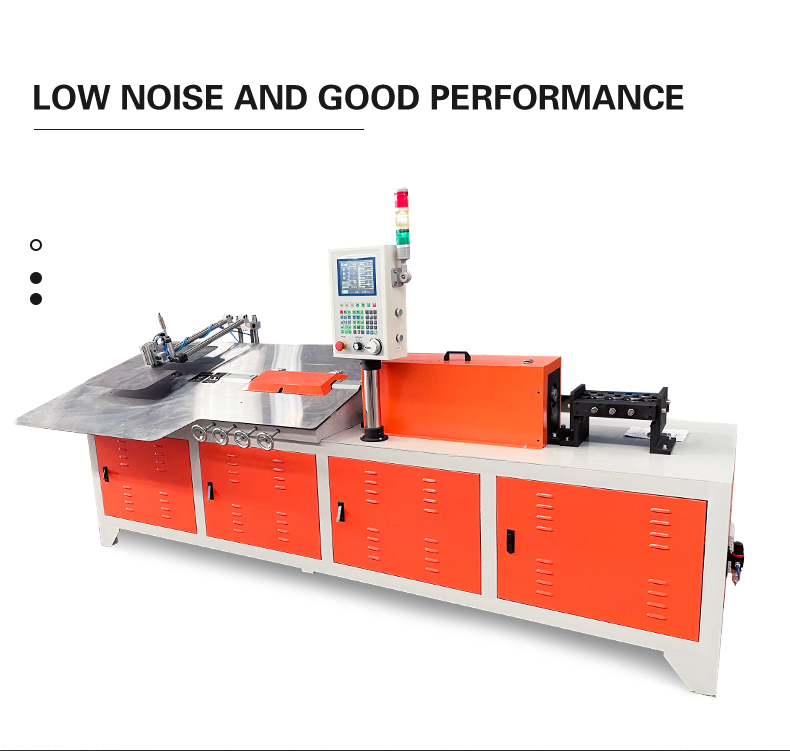

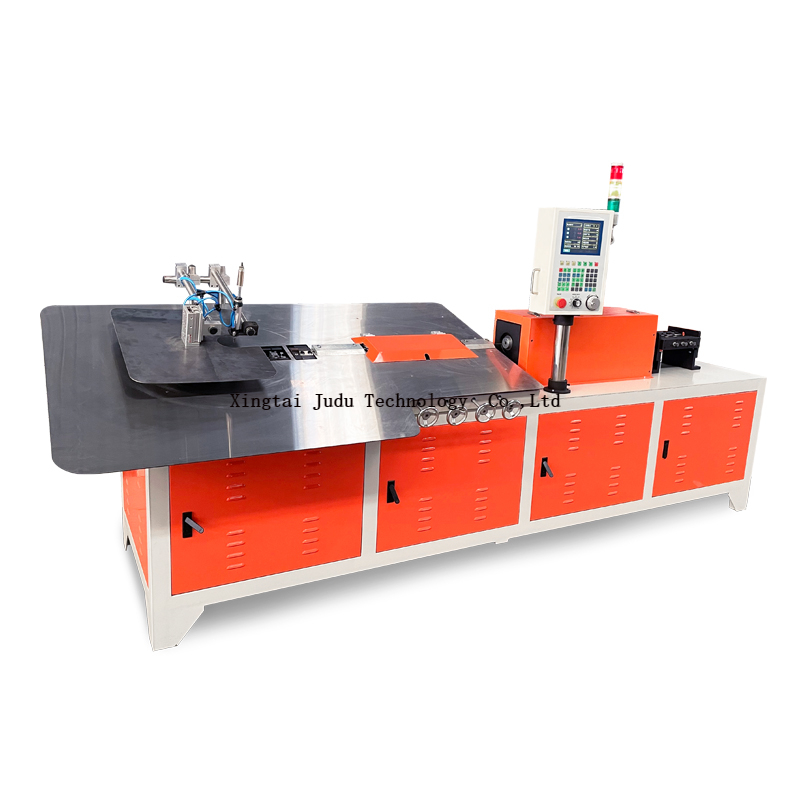

1.Servo drive, Stable performance;
2.High precision, no noise; 2D CNC rebar bender and stainless wire bending machine
3.Easy to operate,adopt special microcomputer control,intelligent forming,high efficiency,save electricity;
4.Automatic straightening, wire feeding, forming, cutting and record number;
5.Wire feeding wheels, straightening wheels, forming wheels adopt the German high quality alloy, after vacuum heat treatment ,the high abrasion resistance and long service life;

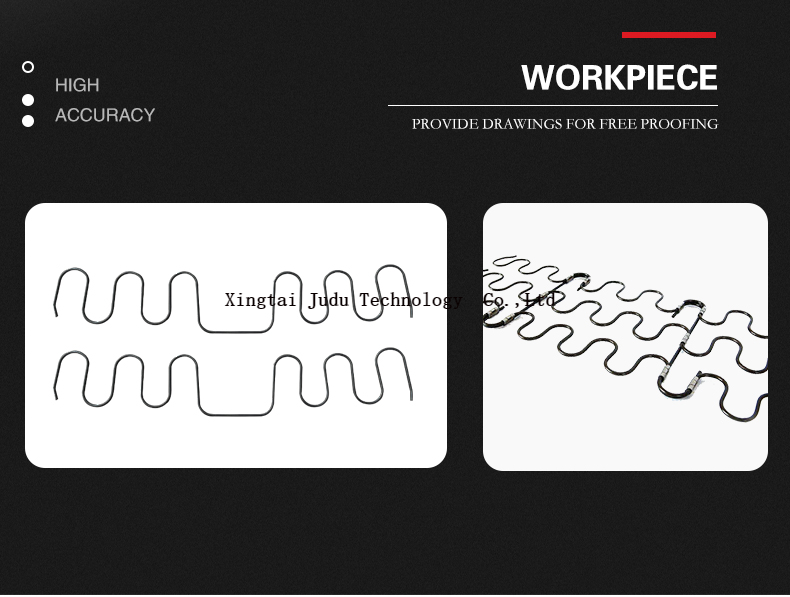

6.Suitable for forming Various 2D shapes for all kinds of metal ( such as steel, iron, stainless steel and aluminum wire, etc. )

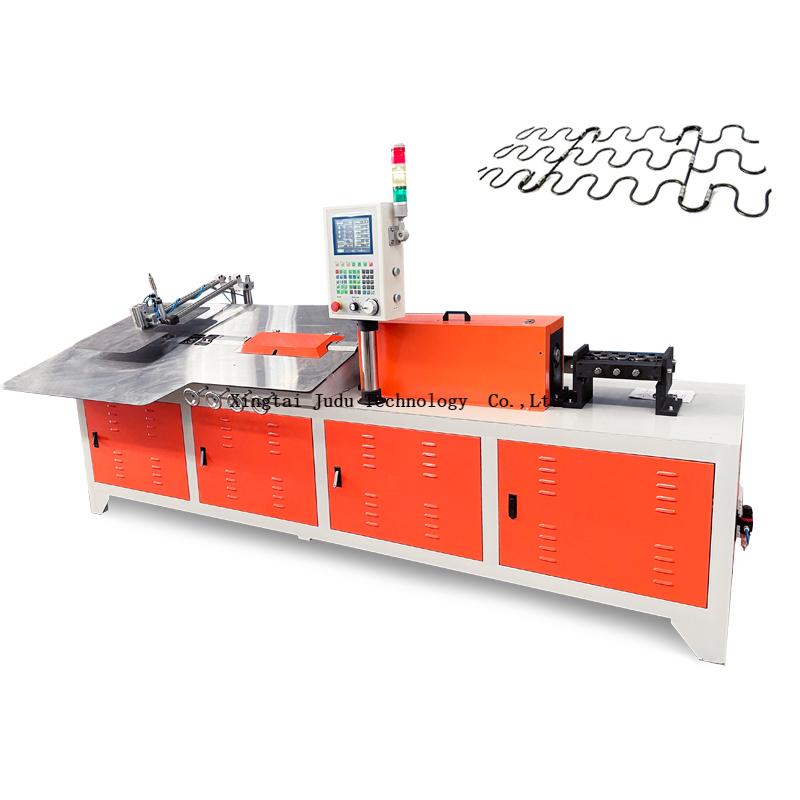

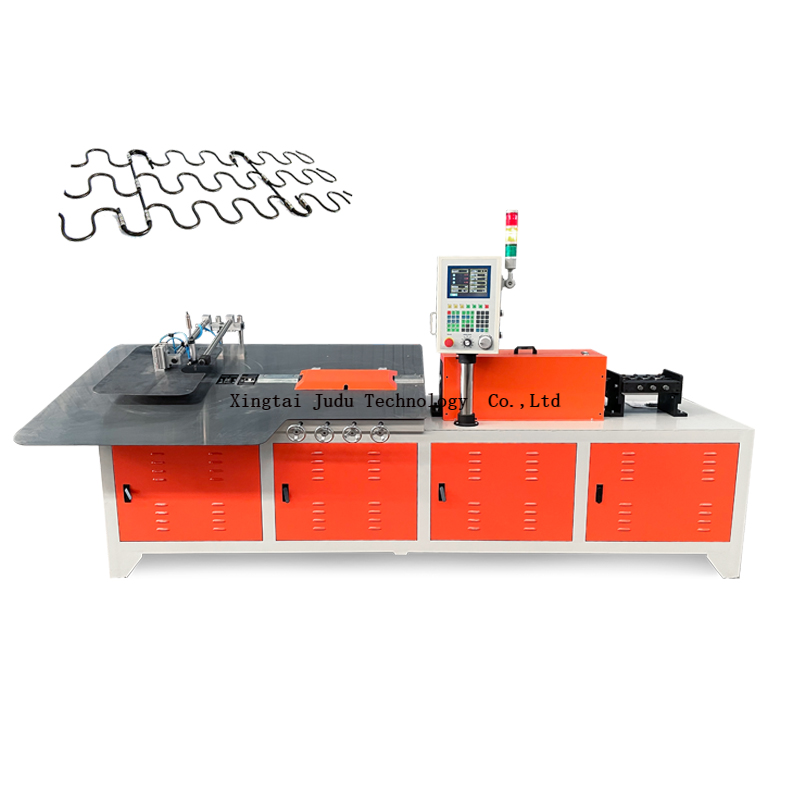

2d wire bending machine for snake spring technical specification :
Model | ZD-2D-206 |
number of axles | 3 |
processing wire dameter range | 2—6mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 100 |
Servo motor power of feeding shaft(kW) | 1.5 |
Power of Servomotor for Cutter Shaft(kW) | 1.5 |
Power of Folded Axis Servomotor(kW) | 1.5 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 25-30pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 600 |
Dimension (length*width*height mm) | 2400×1000×1400 |
2d wire bending machine for snake spring Video link on youtube:
https://www.youtube.com/watch?v=R4xWtGvQJdM
https://www.youtube.com/watch?v=1xewxXQ7xUM
1. A CNC automatic wire forming machine. The angled parts cooperate with each other to produce different products. The commissioning time is short. For new products, only simple adjustments are needed. After commissioning, the products can be produced and the delivery speed can be improved.
2. The function of the transfer line is made by the rotation of the wire itself, which makes the production of multi-angled corners more convenient, faster and faster.
1.Servo drive, Stable performance;
2.High precision, no noise; 2D CNC rebar bender and stainless wire bending machine
3.Easy to operate,adopt special microcomputer control,intelligent forming,high efficiency,save electricity;
4.Automatic straightening, wire feeding, forming, cutting and record number;
5.Wire feeding wheels, straightening wheels, forming wheels adopt the German high quality alloy, after vacuum heat treatment ,the high abrasion resistance and long service life;
6.Suitable for forming Various 2D shapes for all kinds of metal ( such as steel, iron, stainless steel and aluminum wire, etc. )
2d wire bending machine for snake spring technical specification :
Model | ZD-2D-206 |
number of axles | 3 |
processing wire dameter range | 2—6mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 100 |
Servo motor power of feeding shaft(kW) | 1.5 |
Power of Servomotor for Cutter Shaft(kW) | 1.5 |
Power of Folded Axis Servomotor(kW) | 1.5 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 25-30pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 600 |
Dimension (length*width*height mm) | 2400×1000×1400 |
2d wire bending machine for snake spring Video link on youtube:
https://www.youtube.com/watch?v=R4xWtGvQJdM
https://www.youtube.com/watch?v=1xewxXQ7xUM
1. A CNC automatic wire forming machine. The angled parts cooperate with each other to produce different products. The commissioning time is short. For new products, only simple adjustments are needed. After commissioning, the products can be produced and the delivery speed can be improved.
2. The function of the transfer line is made by the rotation of the wire itself, which makes the production of multi-angled corners more convenient, faster and faster.
