CNC stirrup hoop wire rebar bending machine with all Servo Motor

1.Bending and shearing mechanism: driven by imported servo motor, the bent arm can rotate and flex at high speed. The shearing mechanism completes the shearing action at high speed to ensure the bending accuracy of the steel bar.
2.Control system: This machine adopts foreign mature control system, high reliability. The control system has the function of fault identification and alarm.
Power:
Certification:
Scope:
Traction speed:
Application:
Availability:
Quantity:
  • R7
  • Greatcity
  • 8462219000


CNC stirrup hoop wire rebar bending machine  with all Servo Motor


 Introduction of Rebar Stirrup Hoop Wire Rebar Bending Machine:

Intelligent R7 mode is a new CNC rebar bending machine. It is at the fasted speed, R7 has better stability  and the high percent of pass than R6 model. We can also make as customized nfor the client on the basis of R6 CNC steel bar bending machine to make it has the function of reversal . It will be more practical.



 Product Features
1. This equipment adopts CNC controlling system;
2. Accomplish the functions of rebar's feeding, straighten, bending and cutting etc; can be processed in various sizes square, rectangle, triangle, polygon, etc.
3. Continuously bend various stirrup of plane figure;
4. Widely used in construction industry and rebar manufacturing enterprise;
5. Efficiency and accurate processing precision


Stirrup Hoop Wire Rebar Bending Machine  technical specifications:

MODEL

R7

process diameter of single rebar

4-10mm

process diameter of double rebar

4-8mm

max bending angle

180

max towing speed

60m/min

max bending speed

800

length accuracy

1mm

angular accuracy

1

processing quantity

2

power

21kw

steel processing shape

150type

working temperature

-5-40

weight

1980kg

dimension

3300*1000*1980mm


We also have other models of this type machine including R6,R8 and R9 cnc automatic rebar

stirrup bender bending machine,please tell us your rebar information,so that we can quote you the right model of our machine accordingly.


Stirrup Hoop Wire Rebar Bending Machine video link on youtube :
https://www.youtube.com/watch?v=npwgnHDCwX4&t=3s

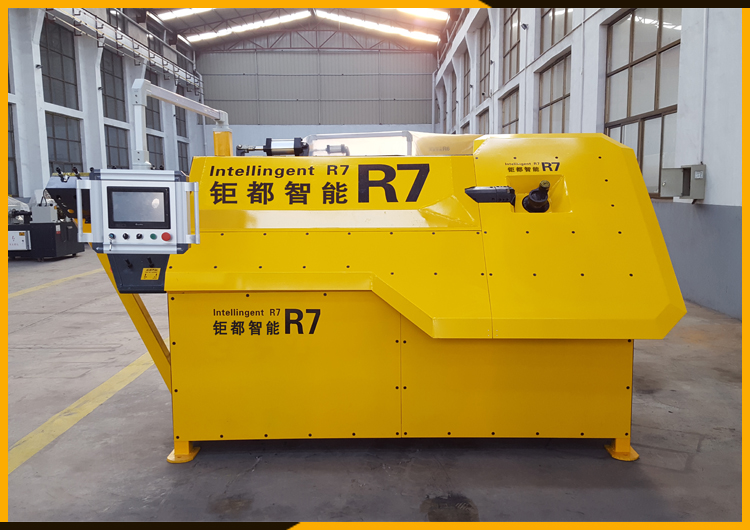

rebar stirrup bending machine - greatcity machinery (25)

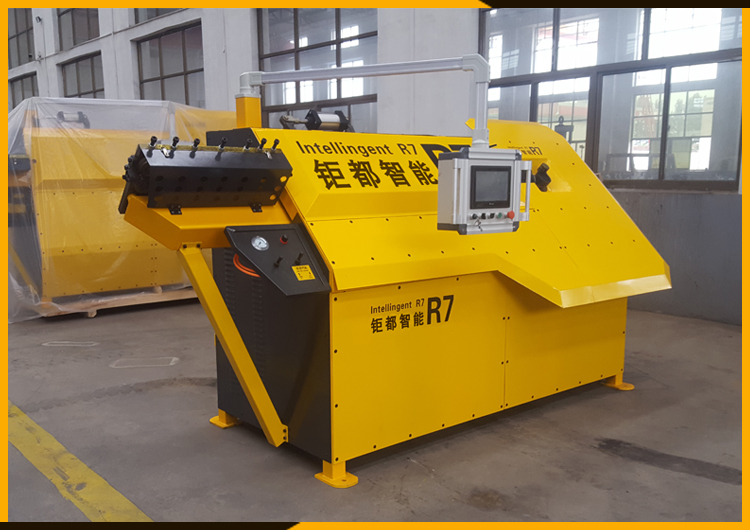

rebar stirrup bending machine - greatcity machinery (26)

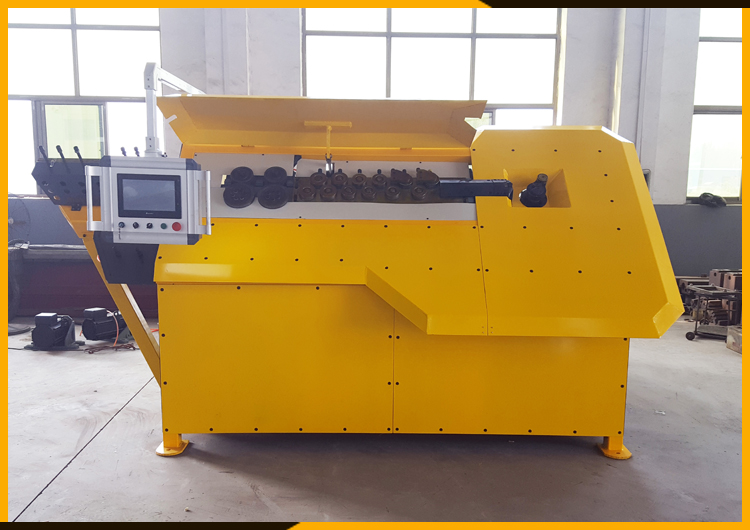

rebar stirrup bending machine - greatcity machinery (27)

R7 stirrup bending machine customer visting - greatcity machinery

Features of Stirrup Hoop Wire Rebar Bending Machine

· The rebar bending machine adopt servo controlling system;

· Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc.;

· The rebar bending machine Max bending diameter of rebar is 14mm;

· The rebar bending machine Continuously bend various stirrup of plane figure;

· The rebar bending machine Widely used in construction industry and rebar manufacturing enterprise;

· The rebar bending machine High efficiency and accurate processing precision.

steel bar bending machine _06 (9)

steel bar bending machine _06 (10)

Recommended application industry:

Stirrup Hoop Wire Rebar Bending Machine is widely used in the construction industry,large steel processing plants,and high-speed railway,high way,water conservancy construction,etc.

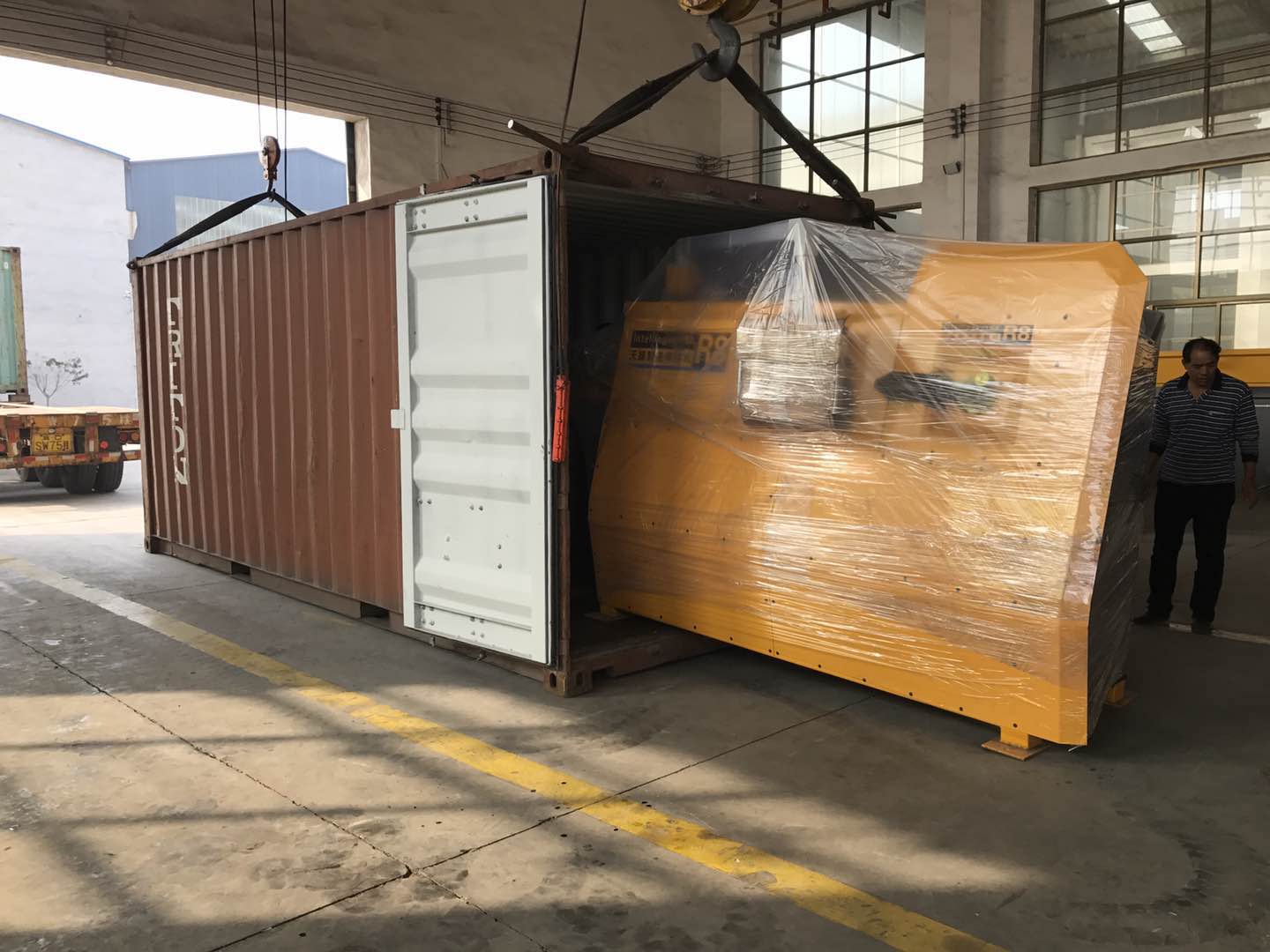

r7 stirrup bending machine shipping

Packing &shipping :

We test the Stirrup Hoop Wire Rebar Bending Machine before it is packaged and transported:

One set Automatic Stirrup bending machine
1, could packed in iron frame, than cover by tarpaulin
2, could packed in wooden case,

Machine packed in two wooden cases, total diminsion 17.76CBM, gross weight 3166kgs.
3, also could packed in nude

Customer can select the spare parts:

air compressor and flexible framework


steel bar bending machine _06 (1)
