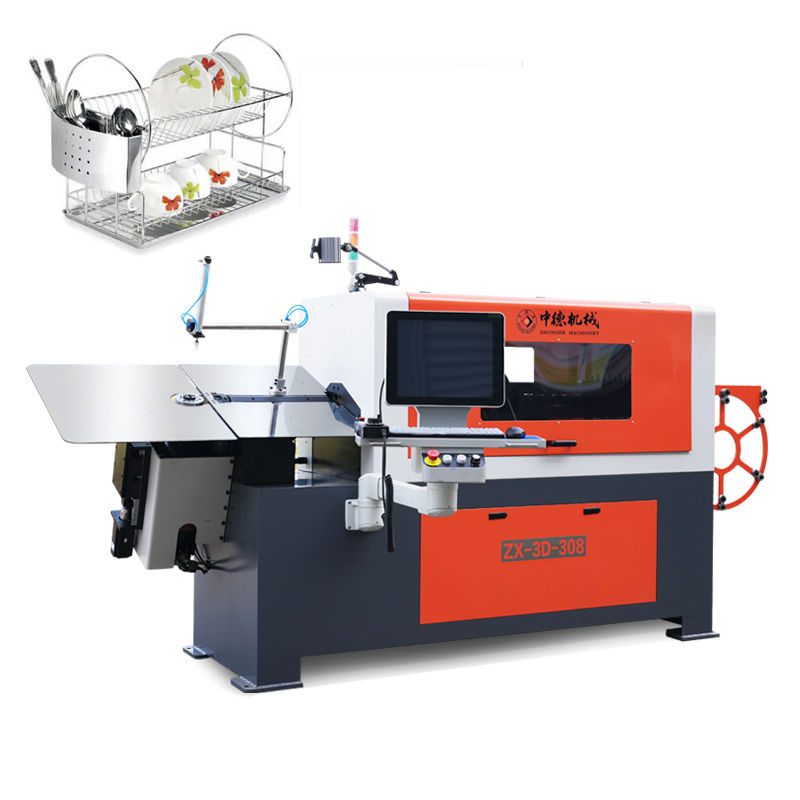

China Greatcity New Style 3d cnc wire bending machine price

1. wire bending machine price Replacing manual work with machine to improve production efficiency, no need to open the mould, PLC operation setting parameters for one-time forming, high forming accuracy and cost savings.
2. Suitable for iron wire, steel wire, stainless steel and non-ferrous metal wire (round, square, flat), square, round, polygon and irregular shape, all kinds of plane buckles, all kinds of hooks.

After-sales Service :
Raw Material:
Product:
Extra Services:
Control system::
Quantity:
  • JD-3D-80
  • Greatcity
  • 8463300000

The feature of  cnc wire bending machine price  :

1. The fluctuation of the power supply current and voltage for more than 1 second should be within ±5%, and the equipment can operate normally;
2. The distance between the automatic feeding rack and the host is more than 2000mm;
3. The device is equipped with a USB interface to enable data reading;
4, the computer operating system can access the Internet, to achieve remote control and operation, production efficiency and output, display in the human-machine interface, the equipment can automatically stop after reaching the specified output;
5. After the equipment is used, the gear box and the guide rail slider should be regularly greased, with a cycle of 60 working days;



Technical parameters of  cnc wire bending machine price:

Rotary arm motor power 2.7KW rotary arm reducer 1:7 Taiwan Pinhong
Wire motor power 3.5KW wire reducer 1:5 China Taizhou
Angle motor power 2.0KW angle reducer 1:10 Taiwan GST
Lift motor power 1.0KW lifting reducer 1:32 Newcastle, Germany
Cutter motor power 1.0KW cutter speed reducer 1:28 Taiwan Pinhong



Pls contact freely, i will show more testing video  cnc wire bending machine as your request.

cnc wire bending machine price  technical specification

Model No
JD-3D-51000
JD-3D-51200
No. of Axis
5 axis
5 axis
input OD of Wire
hard material: 3-7mm    soft material:4-8mm
hard material: 4-8mm     soft material:5-12mm
No. of Feeding Round
4 set
4set
Power of Wire Feeding Motor
5.5kw
5.5kw
Send shaft reducer
1:5
1:10
Power of Turning Motor
5.5kw
5.5kw
Power of Wire Cuter Motor
1.0kw
1.0kw
Power of Moving Motor
1.0kw
1.0kw
Power of Angle Control Motor
2.0kw
2.0kw
Angular speed reducer
1:5
1:10
Weight of Machine
3800kg
3800kg
machine wight
380V/50HZ/3PH
380V/50HZ/3PH
mahcine size
3600mm X 1600mm X 2070mm
3600mm X 1600mm X 2070mm


cnc wire bending machine price  video on youtube :

Application Field of cnc wire bending machine price :

1) Auto Industryarea

2) Netal wire industry

3) Furniture and kitchen

5) Hardware industry

6) Mattress, sofa spring srea

7) Architecture area

8) Hardware Artcrafe


3d wire bending machine (1)


3d wire bending machine (2)

3d wire bending machine (3)

3D wire bending machine _06 (7)


Pre-sale Service

1.Supply item design,process design.

2.Help you to chose the fitest machine.

3.Making the machine according to your requirement.



Sale Service

1.Acceptance equipment together with you .

2.Help you to make the method statement and the details of the process.



After Service

1.Guarantee for 2-5 years.

2.Quality problem,we will sent you the accessories.

3.within  whole wanranty(without accessories charge).

3d_09

The package of  cnc wire bending machine :price In standard export wooden case

Delivery time:within 15 days after receiveing your advanced payment.

Payment terms:. 30%T/T in advanced payment,the left payment should be paid after we finish our production.( we will take  machine and packing photoes for your checking )

We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him ASAP.


弯线机_07

弯线机_06

Our Comopany:

Founded in 1990, Xingtai JUDU Technology Co.,LTD   research and development ,product and sell cnc wire bending machine price , 3d wire bendng machine and wire bending machine with butt welder  around fifteen years ;
We are engaged in machinery export for more than 8 years;
Participated in domestic and international machinery exhibitions many times .
There is a research and development team;
Machine quality assurance and ability to provide OEM, personalized service.
Many model machine have CE certifacate and patent certificate;
We have our own production workshop;the factory is large in scale and strong in strength; factory direct sales ,so price have advantage.
We have our own freight agent and deliver the goods on time .
 At the same time, we can produce other kinds of machinery . These products have been exported to the USA, Germany, Pakistan and Australia....

Welcome you to negotiate business!
