| Color:: | |
|---|---|
| Usage: | |
| Raw Material: | |
| Application: | |
| Function: | |
| Quantity: | |
Introduction of automatic stirrup bending machine
1.This bending machine adopts servo controlling system;
2.Automatically accomplish the functions of rebar's feeding,straightening,bending and cutting etc.;
3.Max bending diameter of rebar is 14mm;
4.Continuously bend various stirrup of plane figure;
5.Widely used in construction industry and rebar manufacturing enterprise;
6.High efficiency and accurate processing precision.
Features of automatic stirrup bending machine
1.Automatic wire feeding system(CNC);
2.Large storage capacity can save 500 processing geometric graphics,high degree automation;
3.Automatic double wire intake system,high processing efficiency;
4.High power feeding motor to ensure bending bar accuracy;
5.The intelligent fault identification alarm system maintenance more convenient;
6.Aerodynamic design observation door,easy adjustment and maintenance,and more security and fast;
7.Heavy-duty design line planes,equipped with a brake and buffer device can prevent chaotic lines caused by downtime;
8.High quality special material and high treatment to make straightening wheels,traction wheels,the metering wheel,longer life with lower operating costs;
9.Touch-screen console,easy to operate,and more fast.
automatic rebar stirrup bending machine technical specification:
Model | F8 |
Single bar diameter (mm) | 5-10 |
Double bar diameter (mm) | 5-8 |
Max bending angle ( °) | 180 |
Max towing speed (m / min) | 120 |
Max bending speed ( °/ sec ) | 1000 |
Length accuracy (mm) | 1 |
Angular accuracy ( °) | 1 |
Number of processing | 2 |
Power (kw) | 15.2 |
Shape processing (kinds) | 500 |
Working temperature (℃) | -5 -- 40 |
Weight (kg) | 1100 |
Dimensiion (mm) | 3100*1100*1700 |
Average power(kw / h) | 5 |
F8 automatic rebar stirrup bending machine video link on youtube
https://www.youtube.com/watch?v=6HIvPFYYDDU
https://www.youtube.com/watch?v=PHpfnUS4mfo

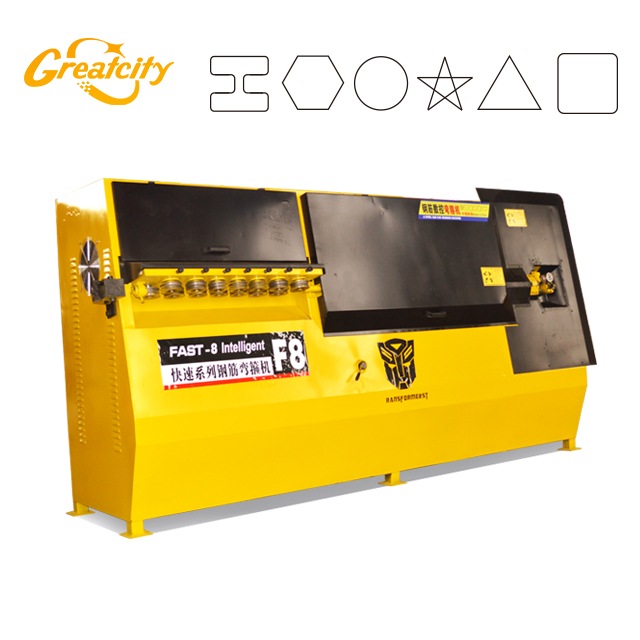

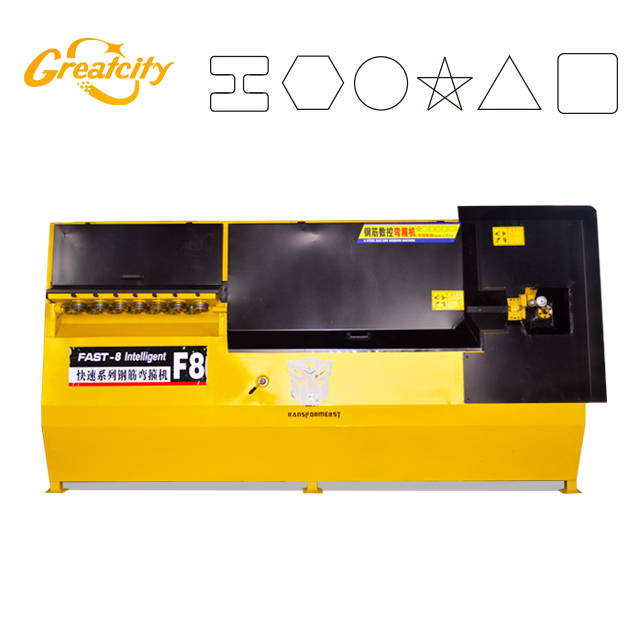

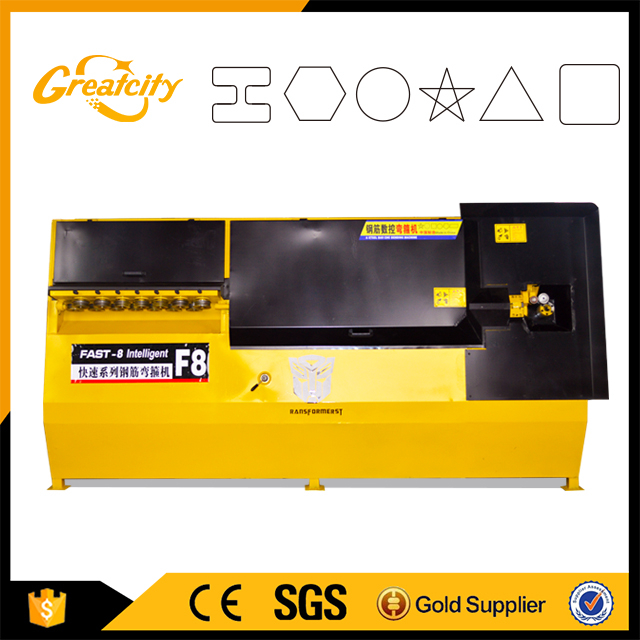

F8type automatic rebar stirrup bending machine
Packaging : standard export wooden case packing. you can by sea or air. We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him ASAP.
Delivery time:6-10 days after receiving the deposit.
Xingtai Judu Technology Co.,Limited was founded in 1990.Specialized in machinery export,has been in this field for more than 20 years.The automatic stirrup bending machine is our advantage product.These machines now export to all over the world such as Asia,Africa,South America,Australia and so on.
Our factory located in Xingtai, Hebei province,China where is the 2th biggest steel manufacture all over the world.We can assure the quality and competitive price.We are currently seeking for global partners like agent and dealers.
1. What is the voltage/phase for this automatic stirrup bending machine ?
220V 50Hz/single phase ,380V 50Hz/three phase ,
also can made as the clients’ need
2. Can you make the logo or company name on the products or package?
Sure. customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
3.what is your warranty?
Warranty 1 year
4.what time for delivery?
3 days for our own design.(motor:380v 50hz 3phases)
10 days for cusmoized model.
5. How should I do if meet some trouble while using?
we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
