Ethylene oxide eto gas sterilization machine of medical devices price

eto sterilization machine ethylene oxide gas is an intelligent all-in-one machine with intelligent one-button operation, which is mainly
divided into three stages
Pre-treatment stage (to reach the optimal environment before sterilization)
Sterilization stage (time can be adjusted freely)
Compulsory elimination of ethylene oxide gas residual stage (freely adjustable times)
Type:
After-sale Service:
Heating method:
Sterilizing humidity:
Chamber materia:
Availability:
Quantity:
  • JD-H eto sterilizer

  • Greatcity


I.Product Application

Greatcity's eto sterilization machine ethylene oxide gas has been specially designed for sterilization of products sensitive to high temperature and to humidity (Syringes, Defluxers, Catheters, Cartridges for Dialysis, Plastic articles, Bandages, Sutures etc.). Sterilizer can be uses even for sterilization of powders which deteriorate by heating exposure. For the wide range of product that can be treated, such sterilizer find application in Disposable Surgical Products, Para Pharmaceutical and Pharmaceutical Industry, Laboratories, Hospital and Food Processing Industries.

Adinath Ethylene Oxide Gas Sterilizer can be realized in to satisfy different requirements working under pressure (1.5 kg/cm2 + vacuum) with mixtures of Ethylene Oxide and Carbon Oxide (usual composition 10% ETO + 90% CO2, 20% ETO + 80% CO2)


II.eto sterilization machine ethylene oxide gas Main Features

1. 20 Cubic Feet to 30 Cubic Meters chamber available.
2. Semi Automatic and Fully Automatic (PLC based) models available.
3. Capable of operation with 10% ETO + 90% CO2, 20% ETO + 80% CO2 and 30% ETO + 70% CO2        combinations.
4. Temperature range between 35 deg. C to 60 deg. C.
5. Flexibility in size of sterilizer as per particular object requirements.
6. Pneumatically operated automatic cartridge puncturing.
7. Double door machine also available.
8.Temperature and Pressure Gauge for easy monitoring.


III.The eto sterilization machine ethylene oxide gas   main technical parameters

SPECIFICATIONS

basic parameters
Working  temperature
30-70
Relative humidity
 % RH
40~80
Pressure
MPa
-0.08~+0.08
The rated voltage
V
380
Power
KW
15-70


 IV.eto sterilization machine ethylene oxide gas detailed picture show:

ethylene oxide sterilizer 6 (8)

ethylene oxide sterilizer 6 (9)

ethylene oxide sterilizer 6 (10)

ethylene oxide sterilizer 6 (6)

ethylene oxide sterilizer 6 (7)

We are a professional manufacturer of eto sterilization machine ethylene oxide gas . We have been manufacturing machines for some Top Construction Group from Spain, Korea and Germany since the year of 2010. Our company has got independent import and export rights. Thus, we can distribute several kinds of machine to clients globally. Some of our products have got European CE, FDA, ISO9001:2001, ISO13485:2003 and other certifications.

♥ Our Principle: "Credibility Supremacy, and Customer First"

♥ Our Promise: "High quality products, and Excellent Service"

♥ Our Value: "Being Honesty, Doing the Best, and Long-lasting Development"

♥ Our Aim: "Develop to be a leader in our industry in the world"

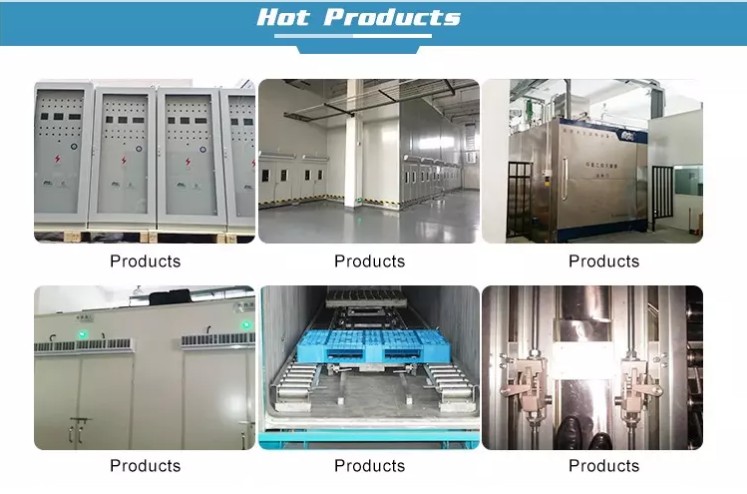

ethylene oxide sterilizer HOT PRODUCT

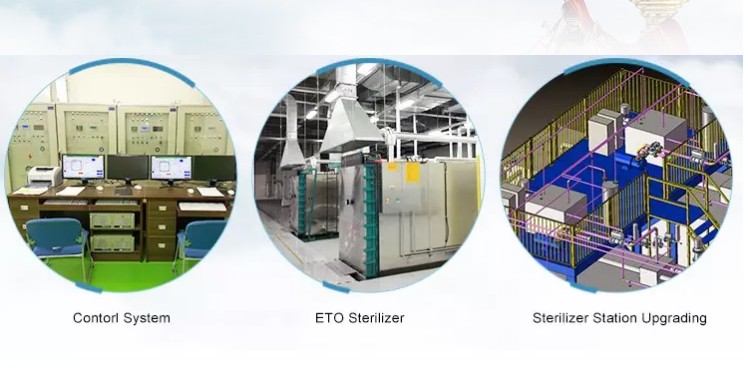

ethylene oxide sterilizer 8

ethylene oxide sterilizer7 (4)

ethylene oxide sterilizer7 (5)

ethylene oxide sterilizer7 (6)

ethylene oxide sterilizer7 (7)

ethylene oxide sterilizer7 (1)

Thank you for your intrests in Xingtai Judu Technology Co., Ltd . we love to talk and are not afraid to discuss any question about eto sterilization machine ethylene oxide gas   you are searching .



Click to submit your inquiry information to us ,  our team will contact you ASAP
