| Quantity: | |
|---|---|
JD-DF-102
Greatcity
8474100000

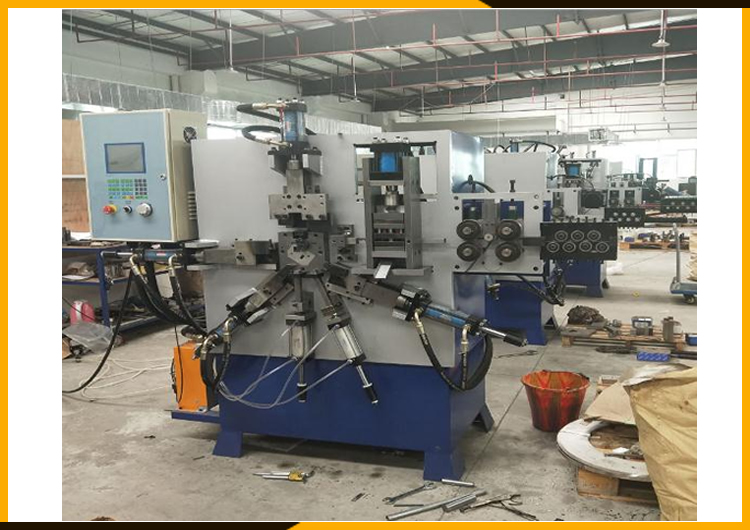

Product introduction:
The Flat Strip forming machine is mainly a special machine developed for flat materials such as stainless steel / galvanized sheet / aluminum. Our machine has one cylinder equivalent to a punch, and some machines have 10 actions equivalent to the function of 10 punches. The computer combines multiple cylinders. The equipment can complete CNC automatic: feeding-straightening-flattening-cutting-punching-lettering-multi-action bending-trimming is completed. It can complete the bending defects that cannot be completed by the punch, and the mechanical feeding precision is 0.2MM.
Technical parameter:
| Model | JD-SF-102 | JD-SF-202 | JD-SF-203 | JD-SF-204 | JD-SF-402 |
| Flat strip(W*T) | 10*2mm | 20*2mm | 20*3mm | 20*4mm | 40*2mm |
| Feeding length | 300mm | 300mm | 300mm | 300mm | 300mm |
| production rate | 25pcs/min | 20pcs/min | 15pcs/min | 10-12pcs/min | 10-12pcs/min |
| Motor power | 5.5kw | 5.5kw | 5.5kw | 5.5kw | 5.5kw |
| Size(L*W*H) | 190*127*185CM | 190*127*185CM | 190*127*185CM | 190*127*185CM | 190*127*185CM |
| weight | 1200kg | 1200kg | 1200kg | 1300kg | 1300kg |
wire pay off:

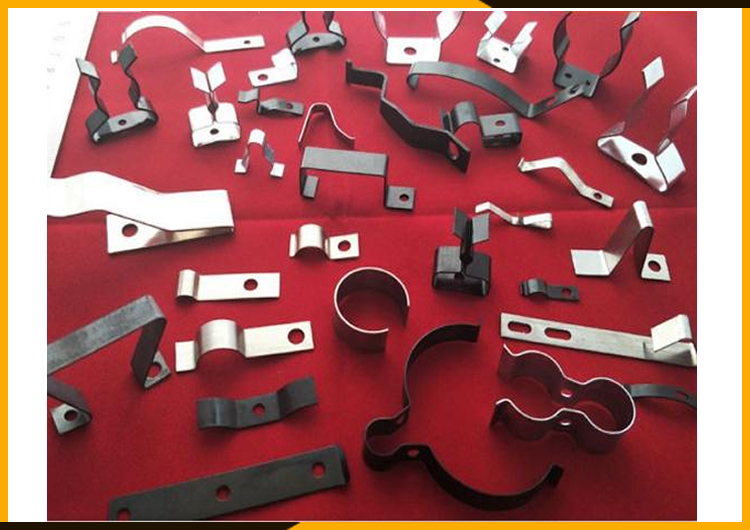

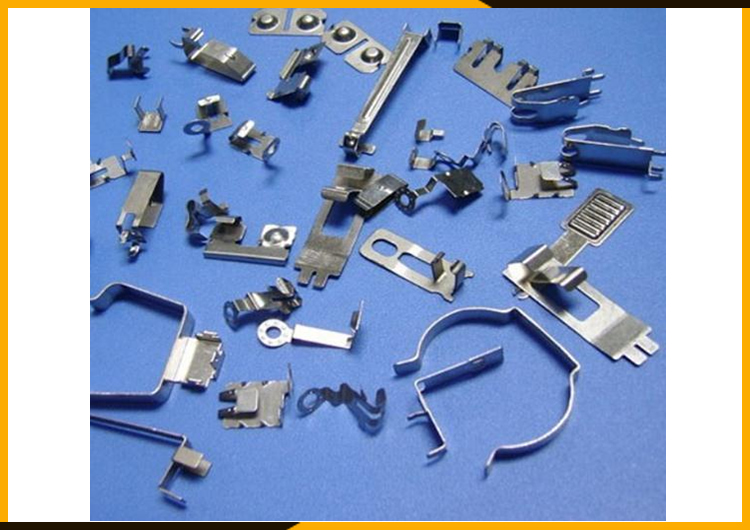

Workpiece sample show :
Our service :
1. We will send you the picture and video of machine after receiving your requirements.
2. We have produced rebar bending machine for 20 years. Any of your requirements could be customized.
3. Quality warranty is 5 years and after sales service for whole life.
4. Welcome you to visit our factory sincerely.
5. Send you the easy broken part of rebar bending machine.
6. Considering about the quality, our price will be reasonal. What is important, the quality and sincerity is the core of our business.
7. We will choose the suitable machine for you according to your rebar diameter, raw material, capacity and budget.Please feel free to tell me your erquirements as above.
if any Flat Strip forming machine inquiry ,feel free to contact me !
