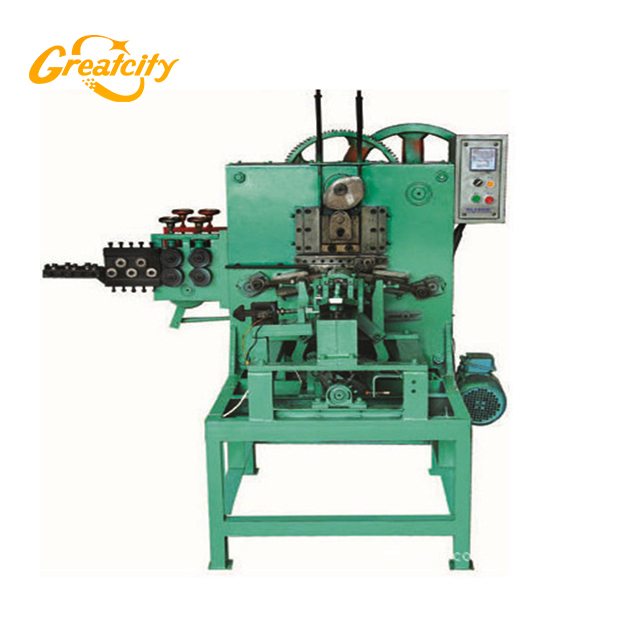

High Quality Automatic Chain Making Machine in China

1.This chain making machine in china is designed to expertly produce kinds of oval steel chains and small key chain fully automatically.
2.The machine has adopted mechanical driven system, with inching control, it can produce double hooked chain very fast and cost low consumption.
Wire diameter:
After-sales Service :
feeding length :
production capacity/minute:
  • JD-CM6
  • Greatcity
  • 8463300000

The main application

This chain making machine in china is widely used for iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat wire), woven into jewelry chain, luggage decoration chain, lighting chain, anti-theft chain, stainless steel chain, flower basket chain, double hook Chain, 8-character chain, etc.


1. The large gear adopts pearlescent ductile iron (QT600-3), and after heat treatment, its hardness is: HB280-320. The guide rail is made of alloy wear-resistant cast iron and heat-treated, and its wear resistance is good. The gear adopts 40Cr forging billet, and it is quenched and tempered and the tooth surface is high (medium) frequency quenched. The hardness reaches HRC52-55. The shafts are made of 45 # or 40Cr steel and have undergone quenching and tempering, and their comprehensive performance is high. Both the wire feeding and straightening wheels are made of high-quality alloy steel, and after vacuum heat treatment, the hardness reaches HRC58-62, which has high strength and good wear resistance.

2. Excellent materials, reasonable processing and heat treatment technology, high comprehensive mechanical properties and long service life of its parts.

JD-CM6 model chain making machine in china  technical specification :

Name Ring chain machine
wire diameter  2-6mm
Feeding length  0-235mm
production capacity/minute 40-50pcs
Motor power 1.5kw
Dimension 135*115*170cm
weight  700kg

chain making machine in china video on youtube:

chain making machine

chain making machine

chain making machine

chain making machine

chain making machine

chain making machine

chain making machine

chain making machine

chain workpiece

Package:Wooden package.
Shipping way:Every chain making machine in china will be tested before sending out and you can choose the shipping way of  by sea, by air or by land.

chain making machine

Our Company :

We are a professional manufacturer of construction machines. We have been manufacturing chain making machine in china for some Top construction Groups from Spain, Korea and Germany since the year of 2007. Our company has got independent import and export rights. Thus, we can distribute several kinds of machine to clients globally. Some of our products have got European CE, FDA, ISO9001:2001, ISO13485:2003 and other certifications.
   Our Principle: "Credibility Supremacy, and Customer First"
   Our Promise: "High quality products, and Excellent Service"
   Our Value: "Being Honesty, Doing the Best, and Long-lasting Development"
   Our Aim: "Develop to be a leader in our industry in the world"

chain making machine

We also have other chain making machine in china for oval chain and circle chain forimng. Please feel free to send your inquiry if you are interesting, greatcity at your service anytime, thanks in advance.
