ZD-2D-206/ZD-2D-308
Greatcity
8463300000
|
Product Description

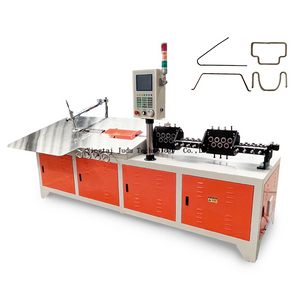

The 2D wire frame bending machine is a fully automatic machine for producing various two-dimensional die pressing parts. As long as the parameters are set on the operating table, the ideal two-dimensional shape can be bended at one time without additional dies. The line diameter range is suitable for 2.0-6.0 mm.
Processing wire, steel wire, stainless steel wire, non-ferrous wire (round, square, flat), bending, square, round, hexagonal, elliptical irregular shape and various flat buttons, hooks.
Application Video
https://www.youtube.com/embed/p3MkYQa0pgk?si=nNkV7MKalu2-8bTK
ZD-2D-206/ZD-2D-308 wire bending machine technical parameter | ||||||
ITEM | ZD-2D-206 | ZD-2D-308 | ITEM | ZD-2D-206 | ZD-2D-308 | |
Diameter | 2-6mm | 3-8mm | Total power | 6.7kw | 7.8kw | |
Feeding servo | Motor | 2.6kw | 3.8kw | Cylinder Matching | 0.5mpa | 0.5mpa |
speed ratio | 1:8 | 1:8 | No of Motor | 3pcs | 3pcs | |
Cutting servo | motor | 1.5kw | 2.0kw | No of Reducers | 3pcs | 3pcs |
speed ratio | 1:10 | 1:10 | Output | 10-30pc/min | 10-30pc/min | |
Bending motor | Motor | 2.6kw | 3.8kw | weight | 600kg | 650kg |
speed ratio | 1:8 | 1:8 | Dimension | 2500*950*1400mm | 2500*950*1400mm | |

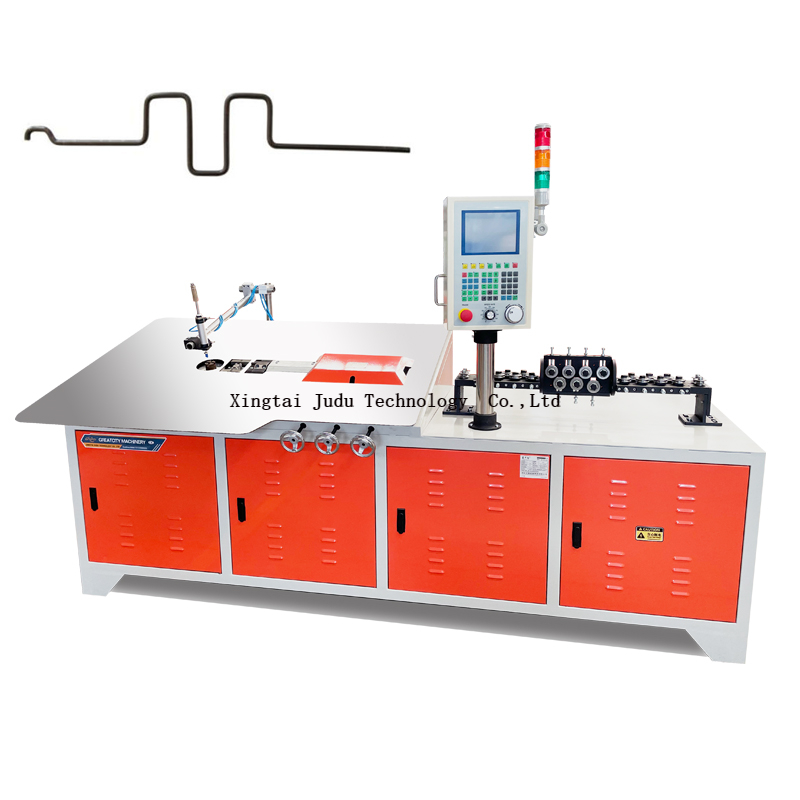

2d wire bending machine detailed picture
2d wire bending machine packing and shipping
Comment & FAQ
We are a high quality supplier of Alibaba. We will compensate you according to the contract stipulation for the machines that are transacted according to the credit guarantee order.
|
Company Profile
We are a professional manufacturer of CNC 2D steel wire bending machine. We have been manufacturing machines for some Top Construction Group from Spain, Korea and Germany since the year of 2010. Our company has got independent import and export rights. Thus, we can distribute several kinds of machine to clients globally. Some of our products have got European CE, ISO9001:2001, ISO13485:2003 and other certifications.
♥ Our Principle: "Credibility Supremacy, and Customer First"
♥ Our Promise: "High quality products, and Excellent Service"
♥ Our Value: "Being Honesty, Doing the Best, and Long-lasting Development"
♥ Our Aim: "Develop to be a leader in our industry in the world"
Production Process
Contact ways
|
