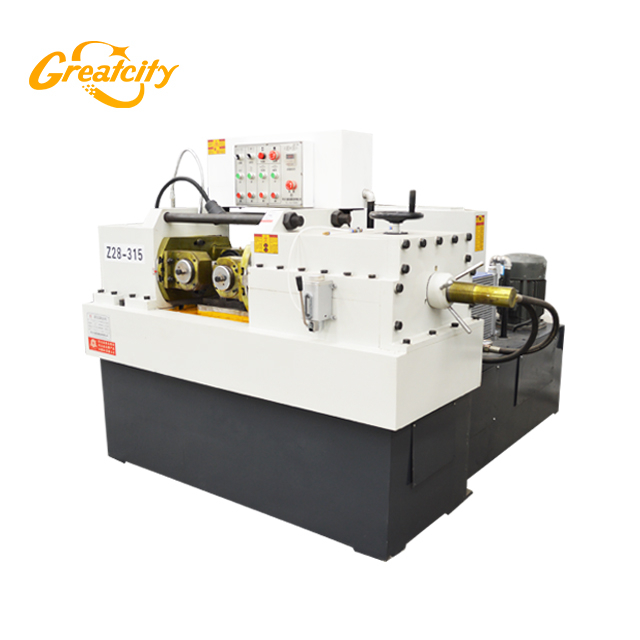

screw threading machine rolling
The Z28-185 rolling machine for thread is maily used for processing precision standard parts of thread and high strength,including regular thread,trapezoid thread and modulax thread.The objective material to be processed inchcde carbon steel ,alloy steel and nonferrous metal with elongation over 10% and tensile srength less than 100kgf/mm⊃2;
greatcity threading rolling machine can equipped the auto feeding and loading machine. pls inquiry for details.
Z28-315 model rebar screw threading machine rolling technical parameters:
| Model | Z28-315 |
| Object part for rolling diameter | Ø8-110mm |
| Object part for rolling thread range | 0.5-8mm |
| Inner dia. of roller wheels | Ø75mm |
| Width of both wheels | 50-120mm |
| Dia. of two roller wheels | Ø170-220mm |
| Max feeding power | 300Kn |
Hydraulic auto-feeding time regulation scope | 0.1-99.9 |
Mechanical transmission motor | 15kw/1450r/min |
Hydraulic cease time regulation scope | 5.5kw/1450r/min |
Cooling electric pump | 120w |
Outer sizes | 2150*1800*1600mm |
Weight | 4500kg |
screw threading machine rolling detailed show :
screw threading machine rolling Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
1. What’s the price of threading rollers?
Re: Kindly please let me know your rod material and the detailed size, such as diameter and thread pitch, etc., so that we can check for you accordingly.
2. We have different rod diameter from 20-80mm, how to choose threading rollers?
Re: The threading roller will be suitable for various length and diameter, but for different thread pitch, it should be changed accordingly.
3. How to operate the thread rolling machine, assuming it has auto cycle and foot pedal?
Re: The thread rolling machine is equipped with button control panel and foot pedal, so the working cycle can be exchanged as automatic work or inching.
4. What’s the capacity of the screw threading machine rolling and what’s the serve life?
Re: The speed of thread rolling machine is about 1m/min.
Generally speaking, the roller can be used for more than 60000 meters long.
Also it is relevant to the material hardness and your operation.
5. Do you have customers in our country?
We are the leader thread rolling machine supplier in China, also we have customers worldwide, such as America, Argentina, Brazil, Belarus, Bangladesh, Germany, Israel, India, and Italy, etc.
