Z28-150B
Greatcity
8462419000
manufacturer hot sale roller thread roll machine best price
Outline of roller thread roll machine:
Thread rolling machine is a multi-function cold extrusion machine.Thread rolling machine in its rolling pressure range of cold, the workpiece for thread,ruled, twill and other treatment;straight,helical and oblique spline gear rolling;straightening,reducing diameter,rolling and various forming rolling.roller thread roll machine has a safe and reliable electro-hydraulic execution and control system.Each work cycle can be selected in manual, semi-automatic and automatic ways.
Rolling wire cold rolling process is an advanced non-cutting processing, can effectively improve the internal and surface quality of the workpiece.
When processed, the radial compression stress generated, can significantly improve the fatigue strength of the workpiece and the reverse strength. It is an efficient, energy saving, low consumption of the ideal process.
Z28-150 type roller thread roll machine main purpose
The whole casting machine,the model is greater than the same product,the performance is more stable
The machine is compact,solid,reasonable design,easy maintenance and other characteristics by the majority of customers.This product is better than other similar models,suitable for ordinary thread,shaped bolts, thread thread processing,free transfer disorder.
Product parameters of roller thread roll machine
Item | Parameter | ||
Object part for rolling | Max Diameter | Radial direction feeding | Φ56mm |
Axix direction feeding | Φ30mm | ||
Thread range | Max thread range | Radial direction feeding | 5.5mm |
Axix direction feeding | 3.5mm | ||
Inner dia of both roller wheels | Φ54mm | ||
Dia of two roller wheels | Φ120-170mm | ||
Core distance ranges of both roller wheels | 125-225mm | ||
Thickness ranges of both roller wheels | 30-100mm | ||
Maximum hydraulic feedling power | 160kn | ||
Two main axis obliquity | ±5°c | ||
Both main axle rotation speed(YPM)(exchange gear) | (exchange gear)37/46/63/79rpm | ||
Hydraulic auto-feeding time regulation scope | Hydraulic rolling | 0.1-99.9s | |
Hydraulic cease | 0.1-99.9s | ||
Mechanical transmission motor | 7.5kw | ||
Hydraulic transmission motor | 2.2kw/1450r/min | ||
Cooling electric pump | 120w | ||
Outer sizes(L*W*H) | 1550×1550×1450mm (Excluding external hydraulic station) | ||
Machine weight | 2000kg |
roller thread roll machine video link on youtube
https://www.youtube.com/watch?v=PJHxY6FLL4Y

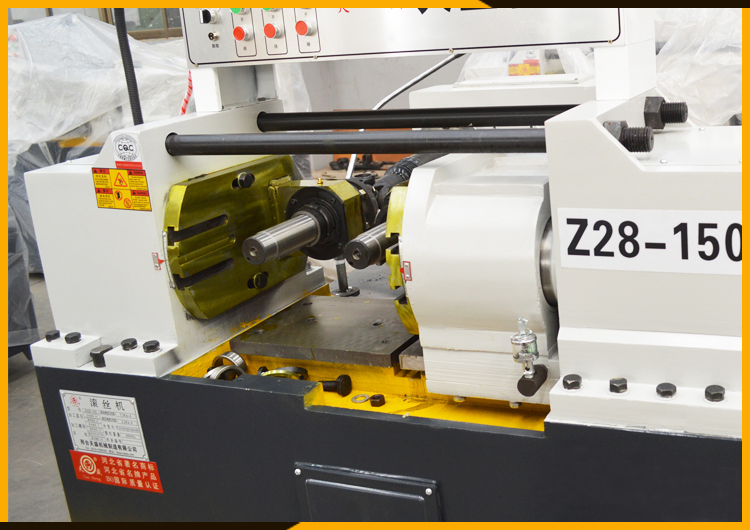

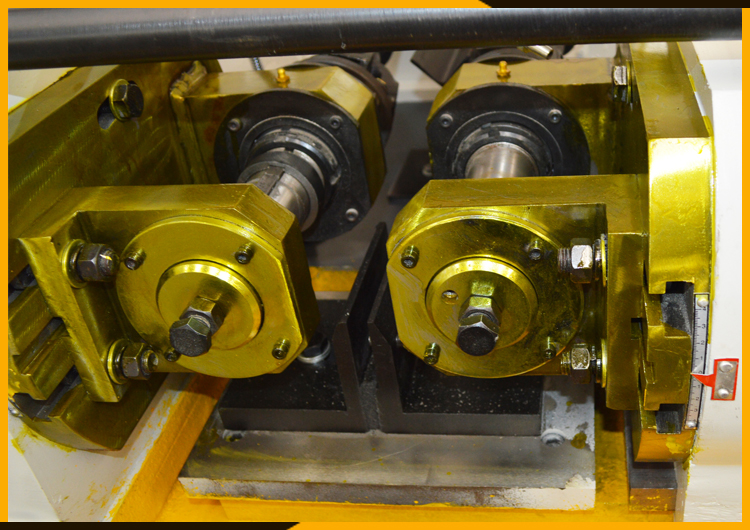

Z28-150 type thread rolling making machine details show

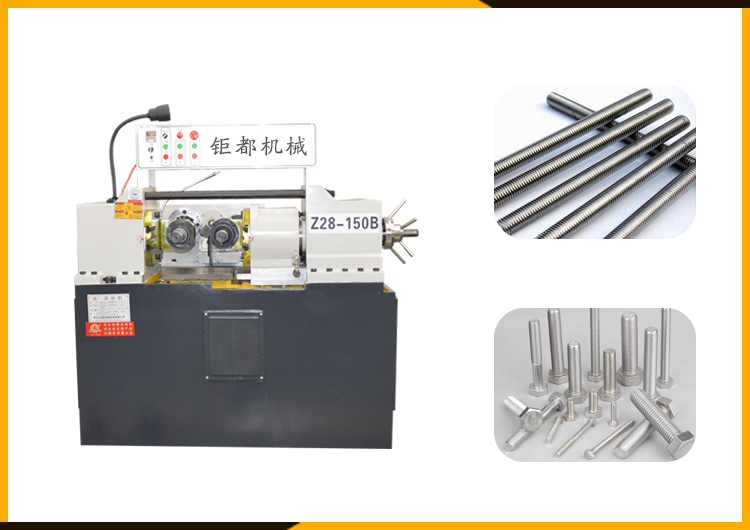

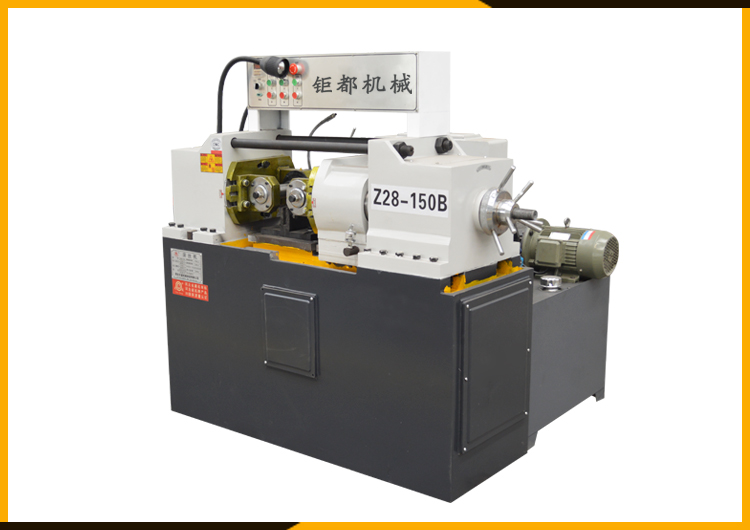

Z28-150 type roller thread roll machine make shape as follow:
We have Many models roller thread roll machine, Z28-215, Z28-150B, Z28-80B, Z28-50, Z28-40C, Z28-315, and so on.
All the diameter we can thread rolling, pls provice us the diameter and the type of your raw material, then i will recommed you the best model fit for you.
Found since 1999, Xingtai GreatCity Machinery Company has developped a category of machines that it is useful for customer in construction area. We do believe that this evolution permits us to offer you a good and high quality of machine at a lowest price for your satisfaction and in order to get a high level of efficiency.
roller thread roll machine'packaing is professional export CTN,WOODEN CASE.
Shipping is FCL,LCL,train within 3-5 days,any port
if any roller thread roll machine feel free to contact me !
