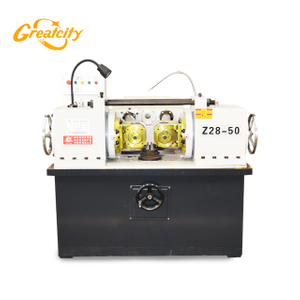

Pneumatic Automatic Reinforcing Steel Bar Thread Rolling Machine / hydraulik roll press threading machine

1.hydraulik roll press threading machine can make the thead form of good quality.And it It has the high precision.
2.It can be used to process scerw and rebar.The rebar processed by the machine has the good overall mechanical.It can make the tensile strength increased by 20%-30%,the fatigue strength increased by 40%-60%,corrosion resistance increased by 50%-200%.Mechanical properties of rebar connector reached and more than international standards.

Color:
Application:
PACKAGE:
Condition:
Place of Origin:
Quantity:
  • Z28-40C
  • Greatcity
  • 8462419000

What is the hydraulik roll press threading machine?



Mainly used for all kinds of external thread, including the common thread, trapezoidal thread and modulus thread. It also can do the rolling process, forming, slidabrading, knurling etc..

Apply for all kinds of carbon steel, alloy steel and non-ferrous metals, the elongation is more than 10%, the compressive strength is less than 100 KGF/m m2.

customer visting to order thread rolling machine

Main Features

The Z28-40 hydraulik roll press threading machine is mainly used for processing precision standard parts of thread and high strength,including regular thread,trapezoid thread and modulax thread.The objective material to be processed inchcde carbon steel ,alloy steel and nonferrous metal with elongation over 10% and tensile strength less than 100kgf/mm²

1.Two spindle of the machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Two rolling wheels make the work as required and other thread shape by rolling.

2.This machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.

3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.

4.This machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return


5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.


SPECIFICATIONS FOR GREATCITY hydraulik roll press threading machine ZP28-40

Rolled thread range

mm

Max diameter

Φ5-36

mm

Pitch of screw

0.5-4

Hobbing wheel range

mm

Outside dia

Φ120--φ170

mm

Hole dia

Φ54

mm

Max width

100

Main axis obliquity


+-5angle

Maximum rolling pressure

kn

120

Main axis revolution(exchange gears)

rpm

37,46,63,79

Main axis transmission power

kw

5.5

Hydraulic transmission power

kw

2.2

machine weight

kg

1100+-50

Dimensions

mm

1350*1210*1350


Z28-40C hydraulik roll press threading machinevideo on youtube

https://www.youtube.com/watch?v=haohXOlrokk

thread rolling machine for bolt (1)

thread rolling machine for bolt (2)

thread rolling machine for bolt (3)

thread rolling machine for bolt (4)

Why choose us?

1. Do you have any warranty?


Yes, we have. Two years warranty on host machine is given. Six months free replacement warranty for spare parts.

2. How is your after-sale service?


We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

3. What certification do you have?

All of our Thread rolling machine for making anchor bolt have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.

4. Will you teach how to use the hydraulik roll press threading machine?

Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily.  It is easy to operate by anyone with the instructions.

5. How about the shipment?

The machine will be shipped within 2-3 days after the receipt of your payment.

6. Can visit your factory?

Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term.
