JD5R
Greatcity
8462919000
Specializing in the production of barrel hook machine, head barrel hook machine, fully automatic hydraulic head barrel hook machine, head barrel hook machine, computer threading barrel hook machine, barrel hook mobile phone, beam machine, barrel hook machine, barrel hook machine, emulsified oil barrel hook machine, chemical barrel hook machine, paint barrel hook machine, 20 liter barrel hook machine, 16 liter barrel hook machine, 10 liter barrel hook machine, flattening barrel hook machine, inside (outside) hook barrel hook machine, etc All kinds of bucket hooks.

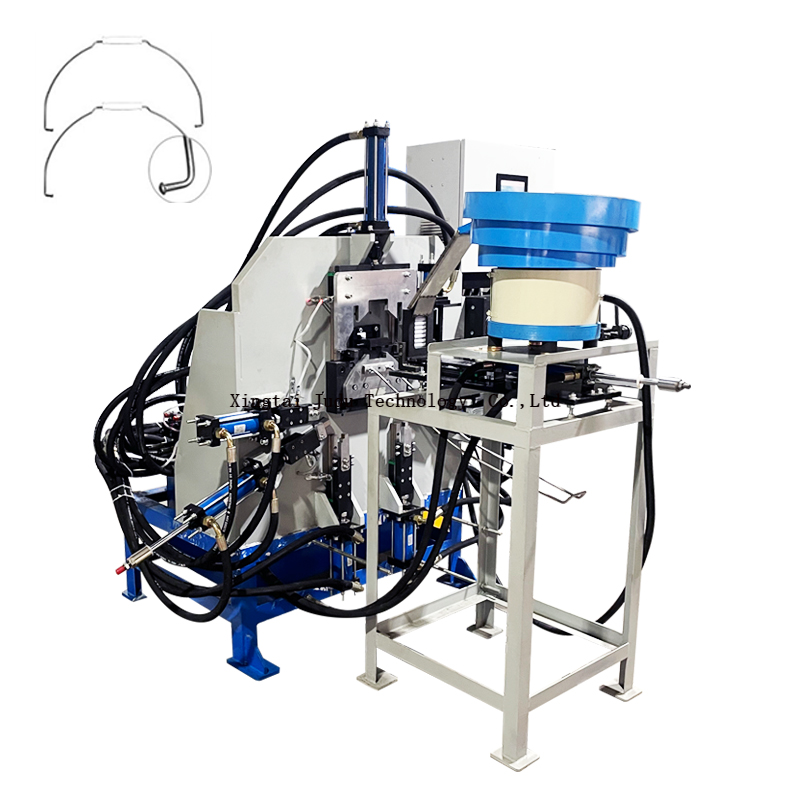

The machine adopts servo motor for feeding, the tolerance of feeding length is ± 0.3mm, the machine is advanced, easy to operate, the production speed is about 10-12 / min, the production is stable, and the cost performance is high.
Machine features:
1. The machine consists of straightening, cutting, threading rubber tube, bumping head and bending once forming;
2. In the process of production, if the material is not enough, the machine will stop automatically and give an alarm;
3. There is no rubber hose in production, the machine will stop automatically and give an alarm;
4. Automatic after production of raw materials (iron line)
price of bucket handle making machine technical parameters:
Model | JD8R | JD5R | JD5ER | JD5E | JDPF5 |
Function | Rivet end | Rivet end | Mixed end | East-west | Outward hook |
Wire size | 3.0-8.0 | 2.0-5.0 | 2.0-5.0 | 2.0-5.0 | 2.0-5.0 |
End stamping
| Yes | Yes | Yes | No, east-west end | No |
Plastic cover | Yes | Yes | Yes | Yes | No |
Feeding length | 700mm | 700mm | 700mm | 700mm | 700mm |
Production rat(pcs/minute) | 10~12 | 12~16 | 12~16 | 18~20 | 20~22 |
Motor power | 5.5kw*2 | 5.5kw*2 | 5.5kw*2 | 3.75kw*2 | 5.5kw |
Size(mm) | 1910X1100X1980 | 1910X1100X1980 | 1910X1100X1980 | 1890X1100X1950 | 1850x1100x1840 |
Weight | 1400KG | 1300KG | 1300KG | 1300KG | 1200KG |
video on youtube :
Xingtai Judu Technology Co.,LTD has more than 10 years professional production of 2d and 3d metal wire bending machine equipment, automatic wire handle making machine ,hanger production equipment experience, with high quality research and development, management and production. The team, relying on scientific and rigorous management, equipped with perfect means of production and testing conditions, is the birthplace of important metal wire and hanger equipment in China, and integrates research and development design, manufacturing and sales clothing as a whole enterprise. The company has independent research and development of a number of wire molding patents, company legal person comes to production and research and development frontline, independent research and development.
1. What is the voltage/phase for this price of bucket handle making machine?
220V 50Hz/single phase, 380V 50Hz/three phase, also can made as the clients’ need.
4. Can we use English or other languages on the display screen?
Yes, we can. The system can achieve many languages, such as English, French, Russian, Spanish, and other languages.
5. How to choose a model?
First you could check with parameters list, or advise the requirement directly, then we would help you to choose a model accordingly.
6. How about After-sales service?
We freely send technicians to your country and 24 hours on-line service.
