R8
Greatcity
8462219000
https://www.youtube.com/watch?v=tshb3dVV0mM
Features:
· This R8 rebar bending steel wire bending machine cnc stirrup steel adopts servo controlling system;
· Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc.;
· Max bending diameter of rebar is 12mm;
· Continuously bend various stirrup of plane figure;
· Widely used in construction industry and rebar manufacturing enterprise;
· High efficiency and accurate processing precision.
Advantages:
1. Mechanical cut, more stable, no failure
Not affected by the weather, bending fast.
2. Main frame material is 10*10 square steel; National standard; High stability
3. More wheels on the Straighten plate, good effect
4.Feeding device is box structure, stable wire feeding, high speed, high precision
5. Can choose forward and reverse bending
6. Free air pump (air compressor)
7. Variety of species for choose. High-end, mid-range, low-end.
Motors brand: ALPHA
Controller brand : Kinco
Electircal Components brand: CHAT and DELIXI
R8 rebar bending steel wire bending machine cnc stirrup parameter :
Model | R8 | Number of processing | 2 |
Single bar diameter (mm) | 5-12 | Power (kw) | 21 |
Double bar diameter (mm) | 5-10 | Shape processing (kinds) | 500 |
Max bending angle ( °) | 180 | Working temperature (°C) | -5 -- 40 |
Max towing speed (m / min) | 130 | Weight (kg) | 2980 |
Max bending speed ( °/ sec ) | 1460 | Dimensiion (mm) | 3510*1510*2310 |
Length accuracy (mm) | 1 | Average power(kw / h) | 7 |

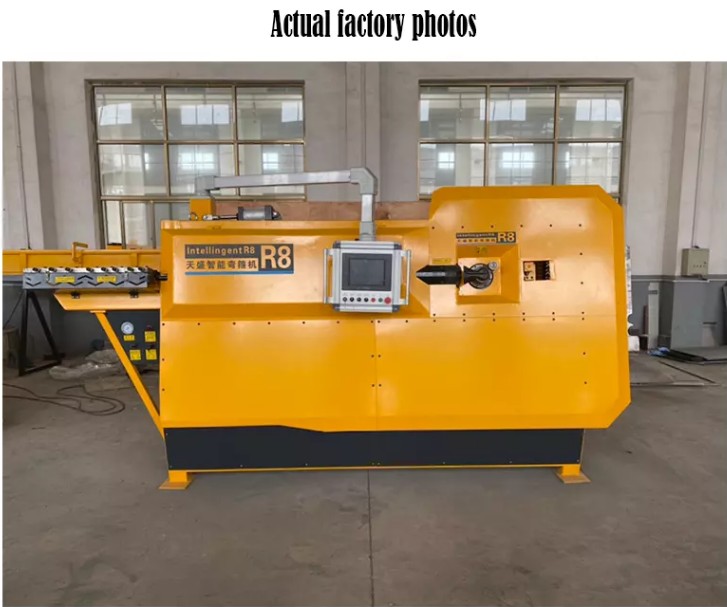

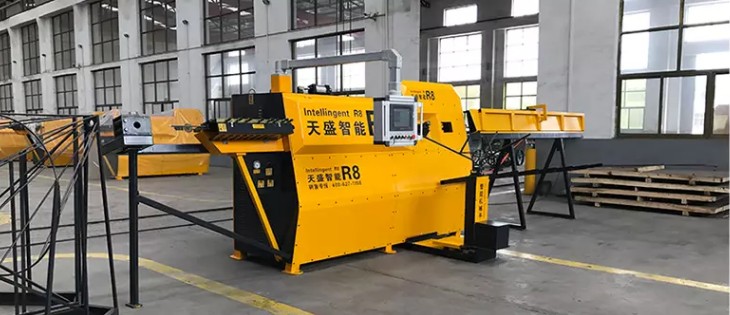

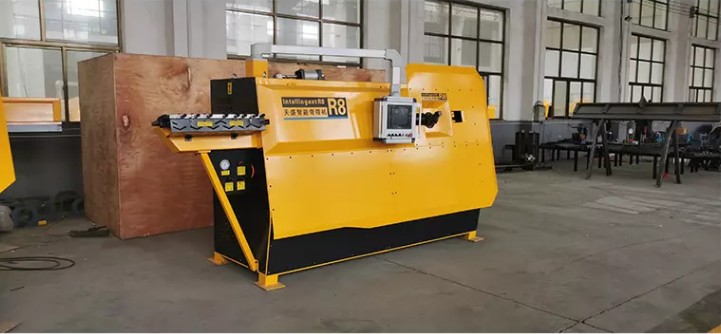

R8 rebar bending steel wire bending machine cnc stirrup picture show
The package of the rebar bending steel wire bending machine cnc stirrup is standard export wooden package
The shipping way include ship, airplane and truck etc.
why choose us r serise rebar bending steel wire bending machine cnc stirrup?
1.High power feeding Servo Motor's To Ensure Straightening, Bending & Cutting Accuracy.
2.larg storage Capacity can save 500 Processing Geometric Designs, High Degree Automation.
3.Siemens Touchable Screen & Panasonic PLC.
4.Production Capacity 280-320 Tons 10 Hours 2 shift Per Day/ 26 Days a month.
5.Different shapes can be processed continuously without stop, furthermore no need to stop
the processing while adjusting the bending angle.
