ZD-2D-308 CPD
Greatcity
8463300000

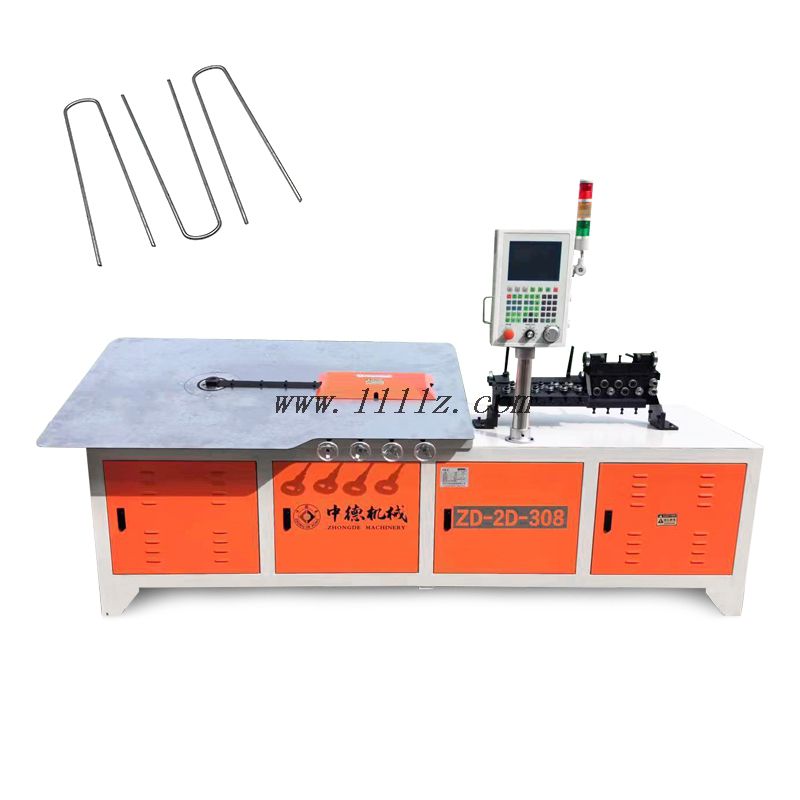

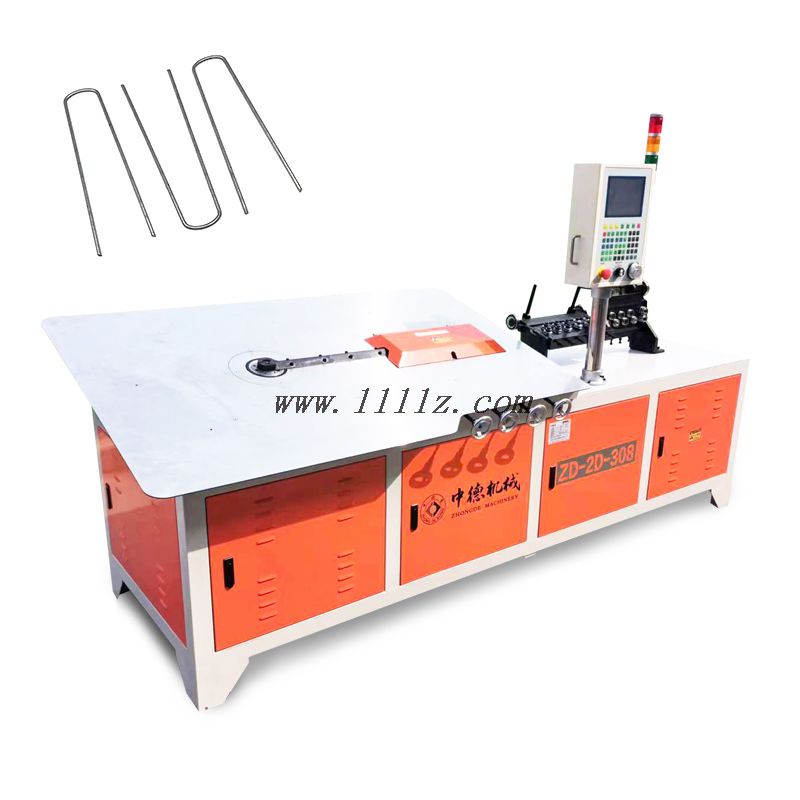

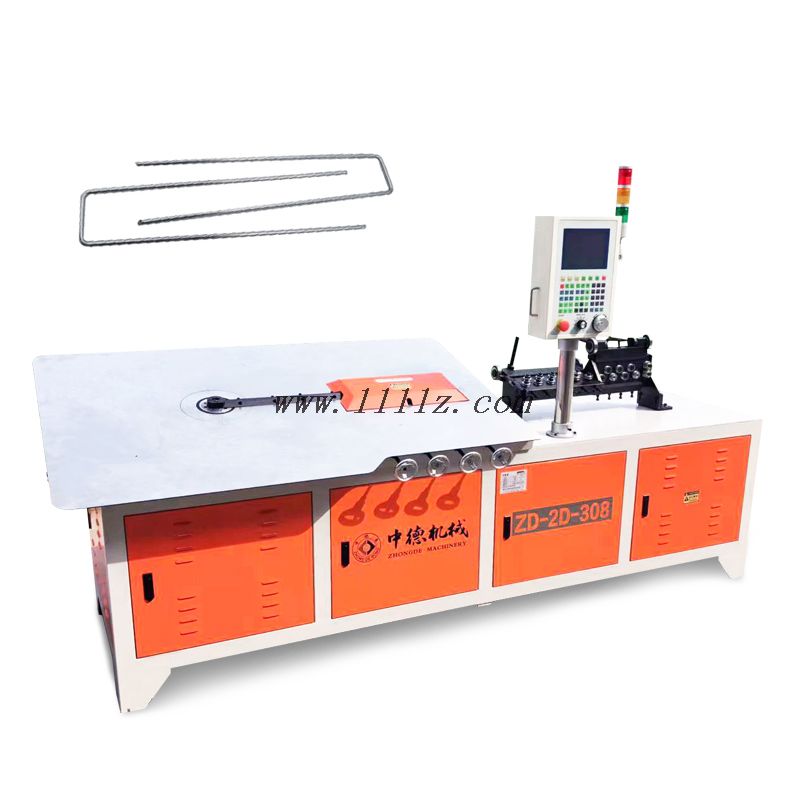

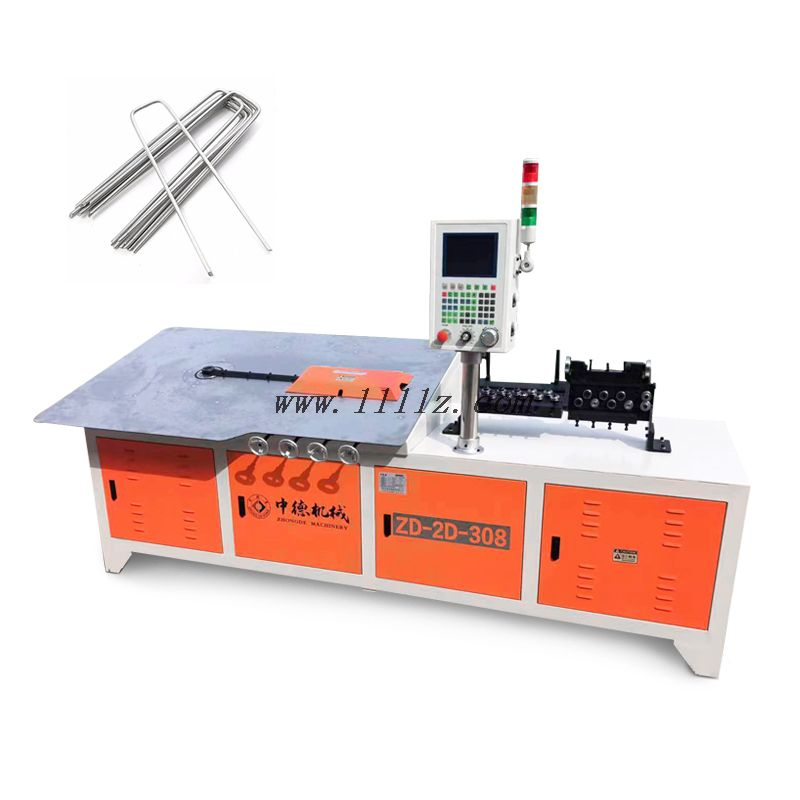

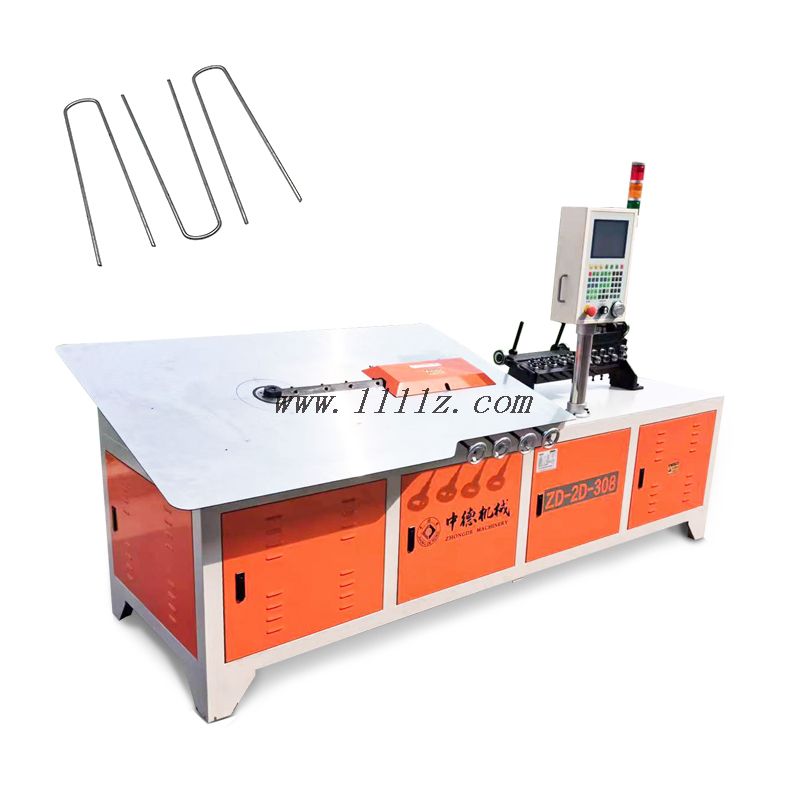

ZD 2D 308 sod staples making machine wire Bending Machine technical specification
ZD 2D 308 sod staples making machine wire bending machine video link on youtube:
sod staples making machine wire bending machine parameter
| name | sod staples making machine wire bending machine |
| Model | ZD-2D-308 |
| Number of shaft | 3 |
| Process wire diameter | Double wire mold Φ2.0 ~Φ4.0 |
| Number of wire feeder | 4 suits |
| Applicable wire | Round wire, flat wire, square wire (applicable to any wire material) |
| Data storage | 10000 data, 300 data as a group |
| Maximum wire feed speed | 100m/min |
| Speed | 120-180 pieces per minute |
| Feeding servo motor power | 3.1KW |
| Bending servo motor power | 3.1KW |
| Cutting servo motor power | 4.5KW |
| Servo motor total power | 10.7KW |
| Action direction | Both the inner and outer molds can be raised and lowered, and the positive and negative bending |
| Feeding accuracy | ±0.1MM |
| Maximum bending speed | 300 rpm, angle ±180° |
| Input power | 380V， 50HZ/60HZ |
| Machine weight | 850KG |
| Machine size | 3100*950*1500mm |
what is copper wire Bending Machine Packaging?
Automatic steel stirrup bending machine Free fumigation safe Wood case package.
Where is your factory located? How can I visit there?
Our factory is located in Xingtai City, the capital of Hebei Province, 1.5 hours way by high-speed rail from Beijing to Xingtai
3. Do you have the products in stock?
Yes , We have some model products can supply to you.
4. Can we use English or other languages on the display screen?
Yes, can. The system can achieve many languages, such as English, French, Russian, Spanish, and other languages
5. How should I do if meet some trouble while using?
we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
