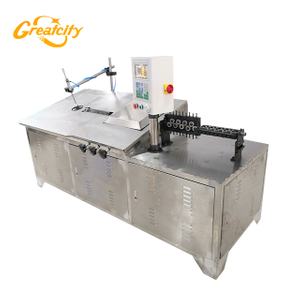

Steel 2d Wire Bending Machine Manufactures From China

Greatly improve the working efficiency of 2d wire bending machine .The steel wire bending machine is simpler to operate than the previous PLC control system, with high precision and large amount of information storage. The main machine and the butt welding equipment are perfectly combined to realize automatic forming.Butt welding, argon arc welding,welded iron wire and stainless steel wire can be realized.
Usage:
Raw Material:
Power:
Key Selling Points:
Application:
Quantity:
  • ZD-2D-206
  • Greatcity
  • 8463300000

Steel 2d Wire Bending Machine Manufactures From China


steel 2d wire bending machine from china

Adopt CNC industrial computer system with 3 years guarantee period. It is combined with 3-4 servo motors, which can make and store 2000sets programs , supporting data and parameters outlet by USB,. Stable sire feeding, and convenient programming by inputting parameters. Has the advantage of less noise and endurable quality ,comparing with traditional hydraulic bending machine.

Application field:

1. Auto Industry area
2. Metal wire industry
3. Display table and cargo shelf
4. Furniture and Kitchen
5. Hardware industry
6. Mattress, Sofa spring area
7. Architecture area

Technical parameters


steel 2d wire bending machine from china technical specification :

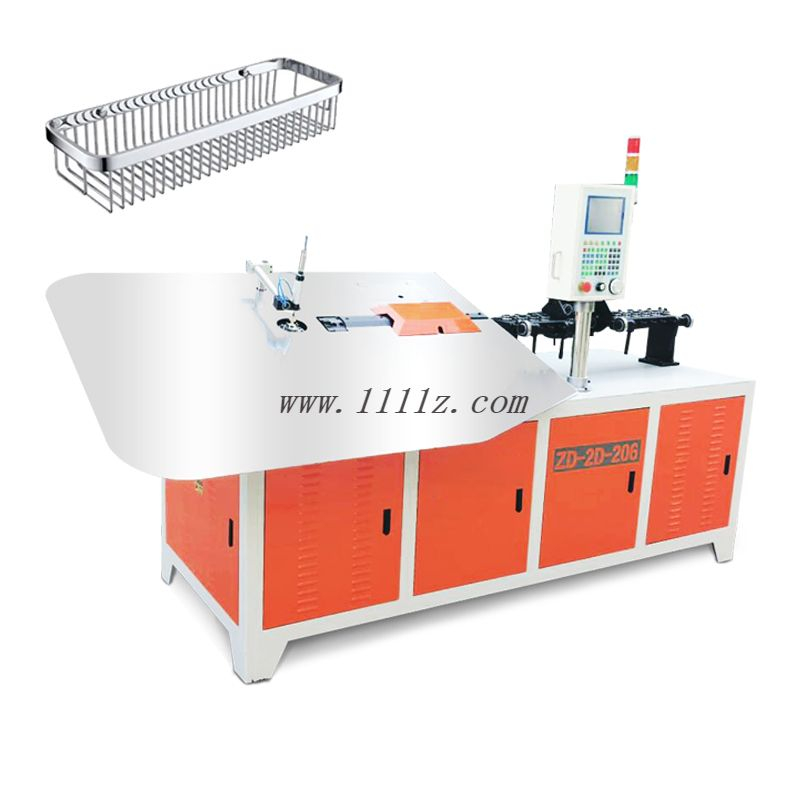

Model

ZD-2D-206

number of  axles

3

processing wire dameter range

2—6mm (iron wire )

Number of feeder wheels (group)

3

Applicable wire

Round wire, flat wire  square wire (suitable for any wire material)

Storage

10,000 data, 300 actions in a group

minimum feeding speed(m/min)

100

Servo motor power of feeding shaft(kW)

1.5

Power of Servomotor for Cutter Shaft(kW)

1.5

Power of Folded Axis Servomotor(kW)

1.5

Direction of action

Internal and external die can be lifted and bended in both directions.

Feeding  accuracy(mm)

±0.1

minimum bending speed

800rmp/min,angle±180º

Capacity

25-30pcs/min,(200*200mm square shape)

operating system

32-bit Chinese and English (with upload and download function)

Input power supply

380V,50HZ/60HZ

weight (KG)

600

Dimension (length*width*height mm)

2400×1000×1400


2d wire bending machine (10)

2d wire bending machine (11)

2d wire bending machine (1)

Greatcity Machinery Factory processing capacity display

steel wire bending machine factory

steel wire bending machine factory

2D Wire Forming Machine :Suitable for iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat), punching (bending) square, round, hexagonal, ellipse and various irregular shape of plane wire shape.

2d wire bending machine (5)

The process shapes of steel 2d wire bending machine from china

Our machine could process 500 kinds shapes

2d wire bending machine (6)

2d wire bending machine (9)

Packing of steel 2d wire bending machine from china
1. 1 pc wood cartton ,carton weight 1000kg,dimension:2800mm*850mm*1500mm.
2. The packing can do as customers' requirement.
Shipping
By sea to your nearest port;
By air to your nearest airport;
By express (DHL,UPS,FEDEX,TNT,EMS)to your door;
Ship to the warehouse in China according to the customers' requirement


2d wire bending machine (8)

1.What if the machine can't be delivered on time after purchase?

We are a high quality supplier of Alibaba. We will compensate you according to the contract stipulation for the machines that are transacted according to the credit guarantee order.

2.What about quality problems after receiving the steel 2d wire bending machine from china?

If quality problems occur within one year, we will send engineers to your company to solve them free of charge.

3.What if you don't operate the machine after receiving it?

Detailed instructions will be provided. Within a year of receiving the machine, we have a free on-site after-sales service. We can also teach you how to use it remotely. However, we would like to welcome you to visit our factory and equipment before placing your order.

4.Machine parts are damaged. What should we do if they need to be replaced?

We have presented three sets of vulnerable parts for each machine (see list above) to ensure that they last longer. You can replace them by yourself, and we will teach you how to replace them.
