You are here: Home » Products » Thread rolling machine » 150 thread rolling machine » Z28-150 Rebar Straight Thread Rolling Making Machine for Through-wall And Jacking Thread Making

Product Detail

Share to:

Z28-150 Rebar Straight Thread Rolling Making Machine for Through-wall And Jacking Thread Making

- thread rolling making machine for rolling screw thread process is used for a large production
- Work hardening process at low temperature
- High speed and high pressure on the metal
- Yield strength and tensile strength

Application:
Thread Pitch:
Scop:
Rolling tapers::
Type:
Quantity:
  • Z28-150B
  • Greatcity
  • 8462419000


Product Application

Z28-150 type thread rolling making machine is used to rolling forming straight thread, and inclined thread in cold state. It is suitable for trapezium rod thread  and jacking thread.


Features of high speed Z28-150 rebar straight thread rolling machine:
Good equipment for no hydraulic  pressure, low power cost
Reliable quality and high efficiency
Compact , reansonable structure
Avoid adjusting disoder thread and convenient adjustment



thread rolling making machine can equipped the auto feeding and loading machine. pls inquiry for details.



SPECIFICATIONS FOR GREATCITY Z28-150B thread rolling making machine
Rolled thread range
mm
Φ5-65
Hobbing wheel range
mm
outside dia:Φ120-170 hole dia:Φ75
Max width:100
Maximum rolling pressure
kn
200
Main axis
.

Obiquity +5
Hydraulic auto feeding time regulation range
s
0.1-99.9
Cease time regulation range
s
0.1-99.9
sMain axis transmission power
kw
11kw-4
Hydraulic transmission power
kw
2.2
machine weight
kg
2800kg
Dimensions
mm
2500*1450*1650


thread rolling making machine  video link on youtube


https://www.youtube.com/watch?v=MKlg0GNoPH8



Z28-150 type thread rolling making machine details show

150B thread roling machine

150B thread rolling machine spare part

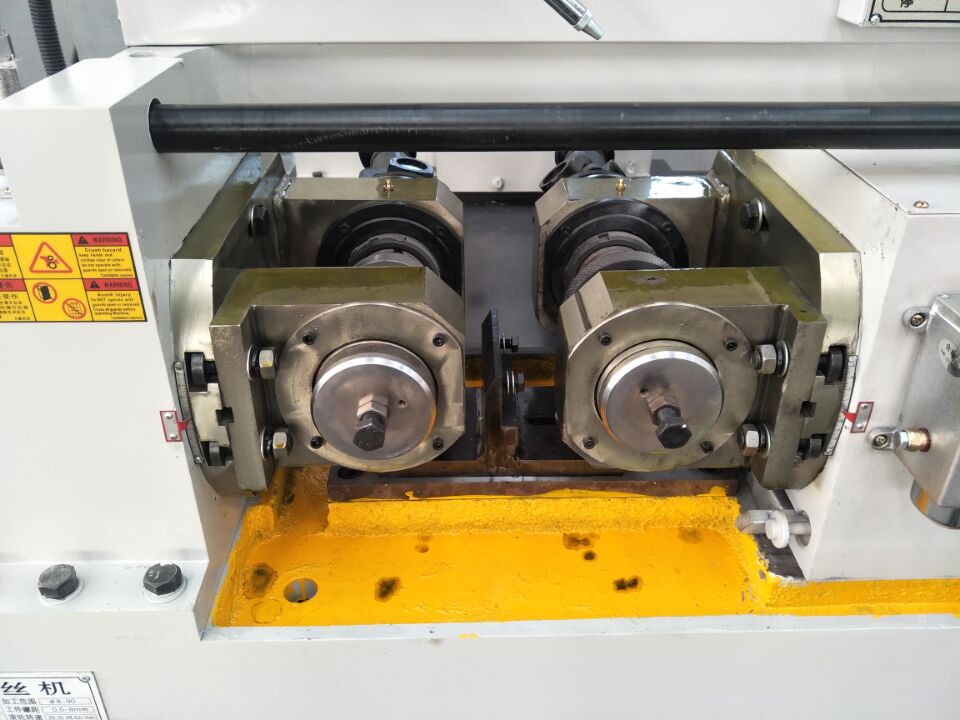

greatcity thread rolling machine details

thread rolling machine details 2

Mainly used for all kinds of external thread, including the common thread, trapezoidal thread and modulus thread. It also can do the rolling process, forming, slidabrading, knurling etc..

Apply for all kinds of carbon steel, alloy steel and non-ferrous metals, the elongation is more than 10%, the compressive strength is less than 100 KGF/m m2.

thread rolling machine processing workpiece

thread roller

1. What’s the price of threading rollers?

Re: Kindly please let me know your rod material and the detailed size, such as diameter and thread pitch, etc., so that we can check for you accordingly.



2. We have different rod diameter from 20-80mm, how to choose threading rollers?

Re: The threading roller will be suitable for various length and diameter, but for different thread pitch, it should be changed accordingly.



3. How to operate thread rolling making machine, assuming it has auto cycle and foot pedal?

Re: The thread rolling machine is equipped with button control panel and foot pedal, so the working cycle can be exchanged as automatic work or inching.



4. What’s the capacity of the thread rolling machine and whats the serve life?

Re: The speed of thread rolling machine is about 1m/min.

Generally speaking, the roller can be used for more than 1000 meters long.

Also it is relevant to the material hardness and your operation.



5. Do you have customers in our country?

We are the leader thread rolling machine manufacturer and supplier in China, also we have customers worldwide, such as UAE, India, Russia, Egypt ,Malaysis and Tunisia, etc.






thread rolling machine customer (3)

thread rolling machine Exhibition

screw thread rolling machine (5)

杨静名片(1)

if any thread rolling machine 4-10 mm  feel free to contact me !
