Z28-65
Greatcity
8462419000
hydraulic thread rolling machine pipe tube description:

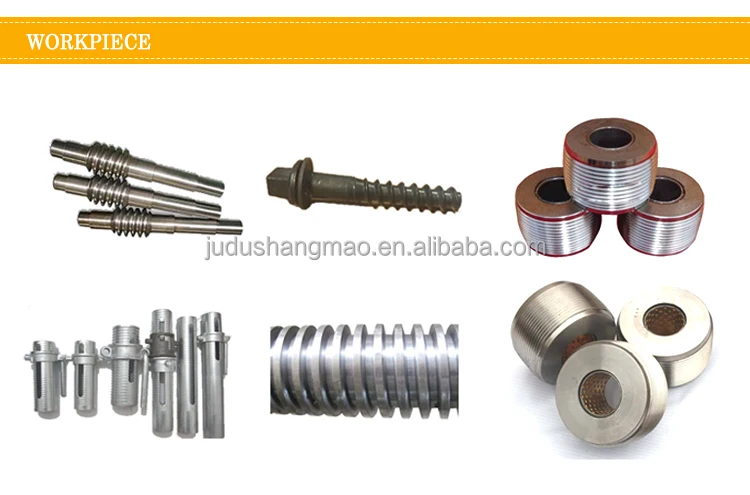

It is a multi-function cold extrusion machine. rebar thread rolling machine is in its rolling pressure range of cold, the workpiece for thread, ruled, twill and other treatment; straight, helical and oblique spline gear rolling; straightening, reducing diameter, rolling and various forming rolling. The machine has a safe and reliable electro-hydraulic execution and control system. Each work cycle can be selected in manual, semi-automatic and automatic ways.
Rolling wire cold rolling process is an advanced non-cutting processing, can effectively improve the internal and surface quality of the workpiece.
When processed, the radial compression stress generated, can significantly improve the fatigue strength of the workpiece and the reverse strength. It is an efficient, energy saving, low consumption of the ideal process.

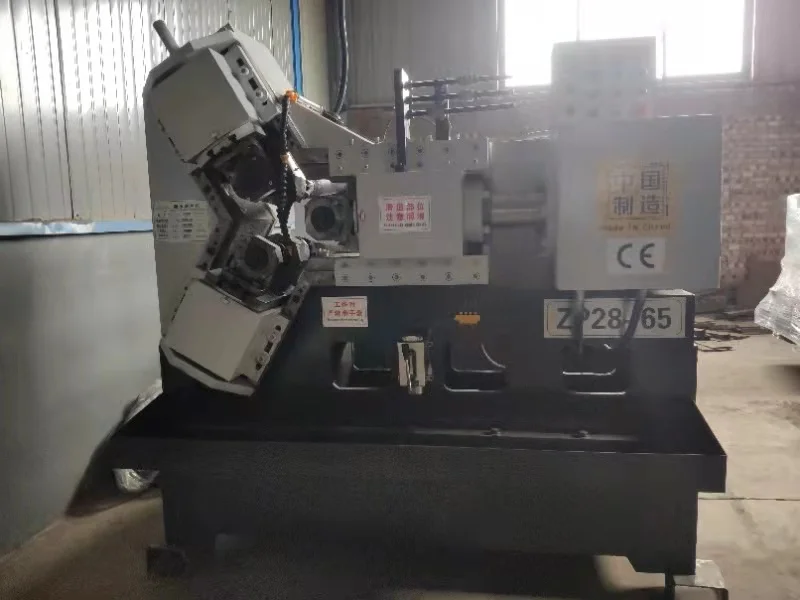

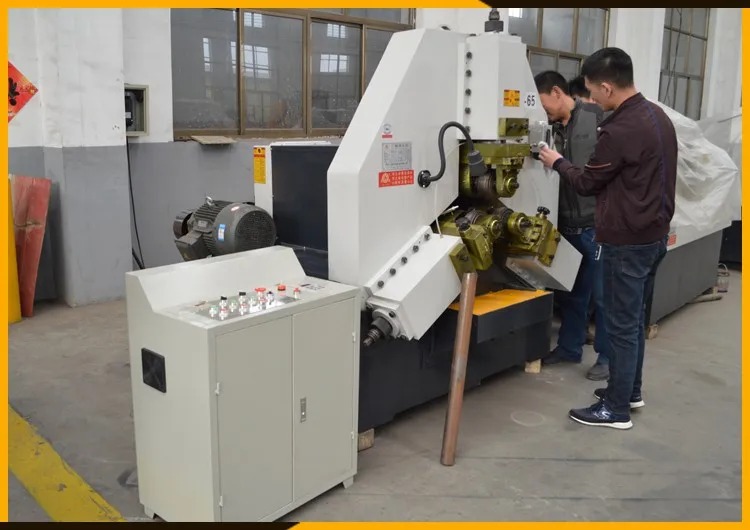

hydraulic thread rolling machine pipe tube show :
Processing principle of hydraulic thread rolling machine pipe tube :
The principle of involute spline of small modulus on cold rolling machine.
L, R is a pair of involute rolling wheels with the same parameters, respectively installed in the rolling machine on the two main shaft. And can be rotated in the same direction as the drive mechanism.
R wheel can be driven by the cylinder for radial feed movement,
The L wheel can be adjusted by the adjustment mechanism, coinciding with the indentation of the R wheel on the surface of the workpiece P.
The workpiece P is clamped with two center holes,
Adjust the fixture can move the workpiece axial, when the force can be around the fixture on the O point and the machine axis parallel to the axis of a swing angle.
To ensure that the workpiece in the cold rolling process is always maintained with the two rolling wheel in the free roll state, while easy to clamp the workpiece.
Rolling wheel structure size, shape and position tolerance and technical requirements with reference to the rolling wheel and cylindrical measuring gear development, rolling wheel of the length of the common line or across the distance between the gears in the gears to calculate the material, the required material can be used Cr12MoV (Hardness 59 ~ 62HRC).
hydraulic thread rolling machine pipe tube Technical Parameters
| Model | ZP28-65 |
| Rolling Motor | 11 KW |
| Roller diameter | Φ125-Φ160 mm |
| processing scope | Φ22- 90 mm |
| rolling pitch | 0.5-M8 |
| Speed | 0-50 r / min |
| Weight | 2900 kg |
| Dimensions | 1900 * 1700 * 1950 mm |
Packing: In standard export wooden case for hydraulic thread rolling machine pipe tube
Delivery time:within 15 days after receiveing your advanced payment.
Payment terms:. 30%T/T in advanced payment,the left payment should be paid after we finish our production.( we will take machine and packing photoes for your checking )
We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him ASAP.

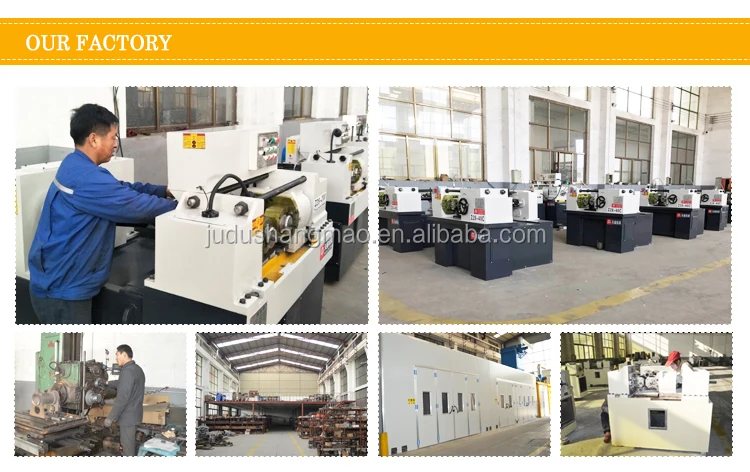

Xingtai Judu Technology CO., LTD is a leading producer , exporter and supply chain service provider located in Xingtai City,Hebei Province. We are a professional manufacturer of hydraulic thread rolling machine pipe tube for nearly 20 years. We have been manufacturing machines for some Top Construction Group from Spain, Korea and Germany since Our company has got independent import and export rights. Thus, we can distribute several kinds of machine to clients globally. Some of our products have got European CE, ISO9001:2001 and other certifications.
Our Principle: "Credibility Supremacy, and Customer First"
Our Promise: "High quality products, and Excellent Service"
Our Value: "Being Honesty, Doing the Best, and Long-lasting Development"
Our Aim: "Develop to be a leader in our industry in the world"
Choose our product is your right decision.
Export Percentage: 91% - 100%
Export Mode: Have Own Export License
Language Spoken:
English,French,Spanish,Arabic...
No. of Employees in Trade Department: 30- 50 People
1. What’s the price of threading rollers?
Re: Kindly please let me know your rod material and the detailed size, such as diameter and thread pitch, etc., so that we can check for you accordingly.
2. We have different rod diameter from 20-80mm, how to choose threading rollers?
Re: The threading roller will be suitable for various length and diameter, but for different thread pitch, it should be changed accordingly.
3. How to operate hydraulic thread rolling machine pipe tube, assuming it has auto cycle and foot pedal?
Re: The reber thread rolling machine is equipped with button control panel and foot pedal, so the working cycle can be exchanged as automatic work or inching.
4. What’s the capacity of rebar thread rolling machine and what’s the serve life?
Re: The speed is about 4-5 pcs/min depends on the diameter and length
Generally speaking, the roller can be used for more than 60000 meters long.
Also it is relevant to the material hardness and your operation.
5. Do you have customers in our country?
We are the leader thread rolling machine supplier in China, also we have customers worldwide, such as America, Argentina, Brazil, Belarus, Bangladesh, Germany, Israel, India, and Italy.
6. what is the payment term please ?
Bank transfer from bank to bank , Alibaba trade assurance order ,LC at sight
