Z28-30
Greatcity
8462419000
thread rolling making machine is widely praised for its rational price, easy maintenance and high quality. besides axial and radial process, it is used to process regular and irregular bolt, through screw etc. with optional embossing roller embossing roller. the through screw made with this machine in zhejiang standard parts base has been exported to US Canada and Europe.
Technical Parameter of Aluminium Tube Thread Rolling Machine
SPECIFICATIONS FOR GREATCITY Thread Rolling Machine ZP28-30- | |
Diameter for the threads rolled | φ4-42/mm |
Range of pitch rolled | 0.7-3.5P |
Length of thread rolled | In feed or Thru feed |
Spindle speed | 36/47/60/78rpm |
Outside diameter of rolling die | φ135mm-φ170mm |
Inside diameter of rolling die(keyway) | φ54mm |
Thickness of rolling die | 110mm |
Min.center distance between die spindles | 120mm |
Max.center distance between die spindles | 240mm |
Output(pcs/min) | 5-35 pcs/min |
Machine motor | 5.5HP |
Hydraulic motor | 3HP |
The highest feed pressure | 15T |

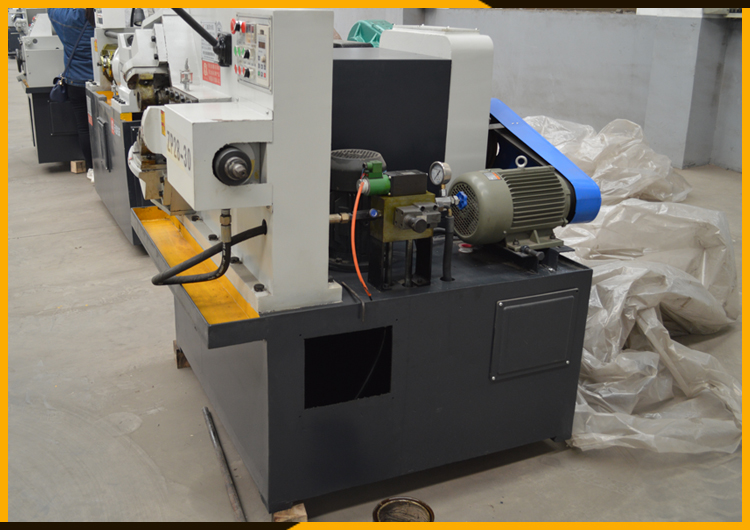

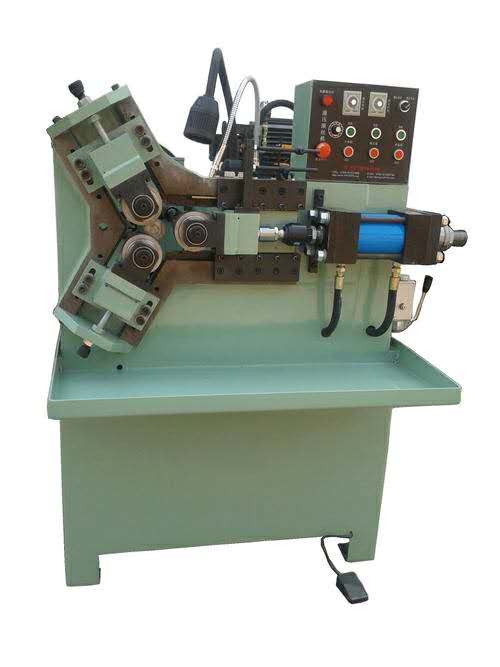

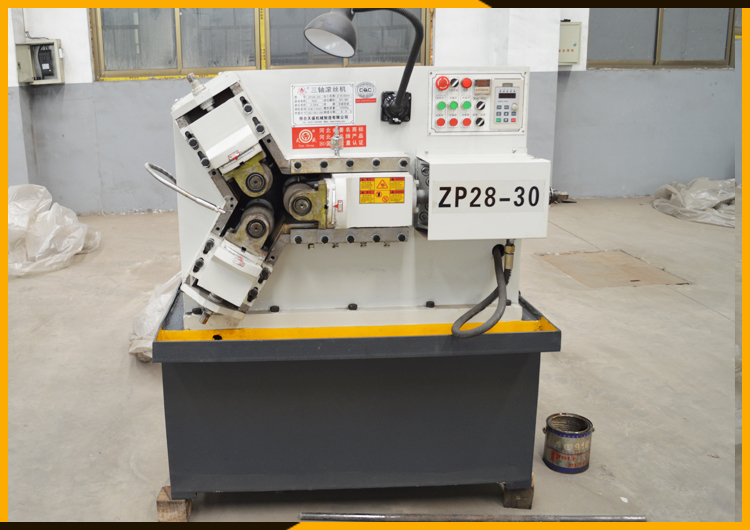

Z28-30 Aluminium Tube Thread Rolling Machine images show :
Our service :
1 Strong R&D team, OEM and ODM service.
2. If customer visit our factory and check the Aluminium Tube Thread Rolling Machine we will teach you know to install and use the machine.
3.Without visiting, we can send you user manual and video to teach you to install and oprate.
4.All the productions has 12 months warrantly, after that we can suppply the material or teach support.
1.Are you a trading company or factory?
Answer: We're factory and trading company together.
2.What's your main products?
Answer: We mainly manufacture rebar Aluminium Tube Thread Rolling Machine, wire bending machine, rebar stirrup bending machine, and other related rebar processing machinery.
3.Can you supply qualified certifications?
Answer: Yes. We can supply CE GOST certification. And we also have been passed ISO9001: 2008.
4.How long for your machine quality quarantee?
Answer: We can qualify for motor and decelerator for one year.
5.Can you change the motor for customized requirement?
Answer: Yes. We can customize motor as your requirement.
6.Can you change package fo other type?
Answer: Yes. Iron frame and wooden case are widely used for machine pack.
If any questions for Aluminium Tube Thread Rolling Machine ,welcome to contact me at any time with the following:
