fully automatic pvc double wire mesh chain link fence weaving net fencing making machine factory price

double chain link fence making machine is also known as diamond mesh machine.Our machinery can be galvanized wire, low carbon steel wire, aluminum alloy wire, PVC wire, spray wire woven into wire mesh.and the mesh surface is flat, beautiful and generous, not easy to corrode, long life, beautiful and practical.
Uses: widely used for raising chickens, ducks, geese, rabbits and zoo fences. Mechanical equipment protection, highway guardrail, stadium fence, road green belt protection net. It can also be used in handicraft manufacturing.
Marketing Type:
New Product 2021:
Production Capacity:
Key Selling Points:
Wire Diameter (mm):
Quantity:
  • GHWJ
  • Greatcity

fully automatic pvc double wire mesh chain link fence weaving net fencing making machine factory price

Overview

double chain link fence making machine: This machine is double wire feeding ,the production speed is double than single wire feeding machine,the machine is PLC control so the tolerance is very small +/-1mm,low noise,and 24 hours running the machine is ok,the machine is suitable for both galvanized wire and pvc coated wire.The following quotation sheet is the whole production line,you can produce chain link fence if you have wire.


Product Description

double chain link fence making machine Wire Pay-off stand

It can hold 230-250kg capacitySimple structure;
Low cost;
Easy to use







Chain link mesh size Common wire chain link machine Our chain link machine
40*40mm 40-50 m2/hour 110-125 m2/hour
50*50mm 60-80 m2/hour 120-130 m2/hour
60*60mm 90-110 m2/hour

120-140 m2/hour





This is more details of the motor



Servo Motor
3.8KW
Cutting Motor
1.5KW
Handflip Motor
1.5KW
Locating Pin Motor
0.75KW
Edge Wire Machine motor
1.5KW
Rolling Machine Motor
1.5KW



Weave mesh Part Width: 2-6 m
Wire diameter: 1.3mm-4.0mm
Mesh Size: 25mm-100mmChain Link Fence Machine 5

Chain Link Fence Machine 4

Chain Link Fence Machine 3

Chain Link Fence Machine 7

Electrol control box :

Remote control
Siemens PLC
Schneider electrical elements
This
 double chain link fence making machine implements a human-computer operation Interface;


You can adjust the work condition at the right moment;


It can show the work condition and production in the time exactly;


The PLC is easy to operate and easy to understand;


The PLC screen can show both English and Chinese at the same time;


All lines in the control box are marked with numbers, and make separate parts control block, you can easily recognize which wire control which place. So if machine has problem, then we can find the problem and solve the problem easily.

Chain Link Fence Machine 6

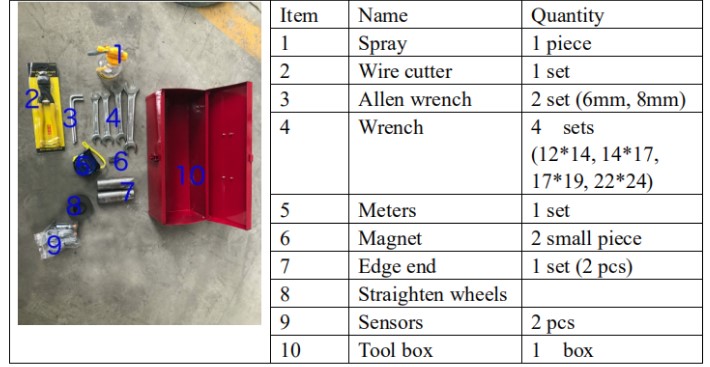

Tool box---the tool box including:
Tool kit
Meters
Oil despenser
Spare parts: wheels and sensors


tool box

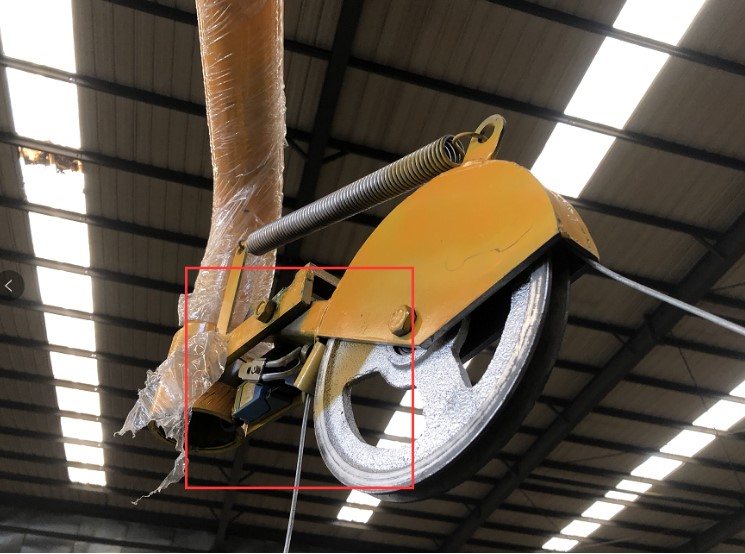

The feeder system has alarming system, so if the wire blocked, it will alarm

feeder system

Our machine can work with both knuckle edge and twister edge

knuckle edge and twister edge

Usually we using Chinese famous brand Housine serve motor, but yours we will using world famous brand Siemens motorUsually we using Japanise Mitsubishi PLC, but yours we will using Siemens brand as you requiredFor the electrical compenents, we using France Schneider Brand



We still had the Delta serve motor


Delta serve motor

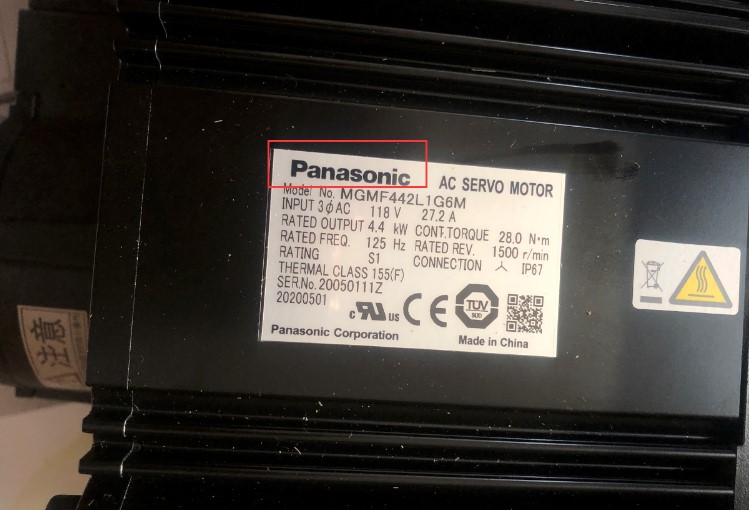

We still had the Panasonic serve motor

panasonic

Why our machine  is used well---we only choose the best quality machine parts to our client

zhiliang 1

zhiliang 2

zhiliang 3

We had export more to other country, such as Africa and India and Pakistan, Vietnam, Nepal......



Fully-automatic chain link fence machine----all the color could customizing

Double wire chain link fence machine---2m to 6m ( wire dia from 2.0mm to 4.0mm )

Semi-automatic chain link fence machine---used galvanized wire

Semi-automatic  chain link fence machine used the PVC WIRE

 wire bending machine 1
