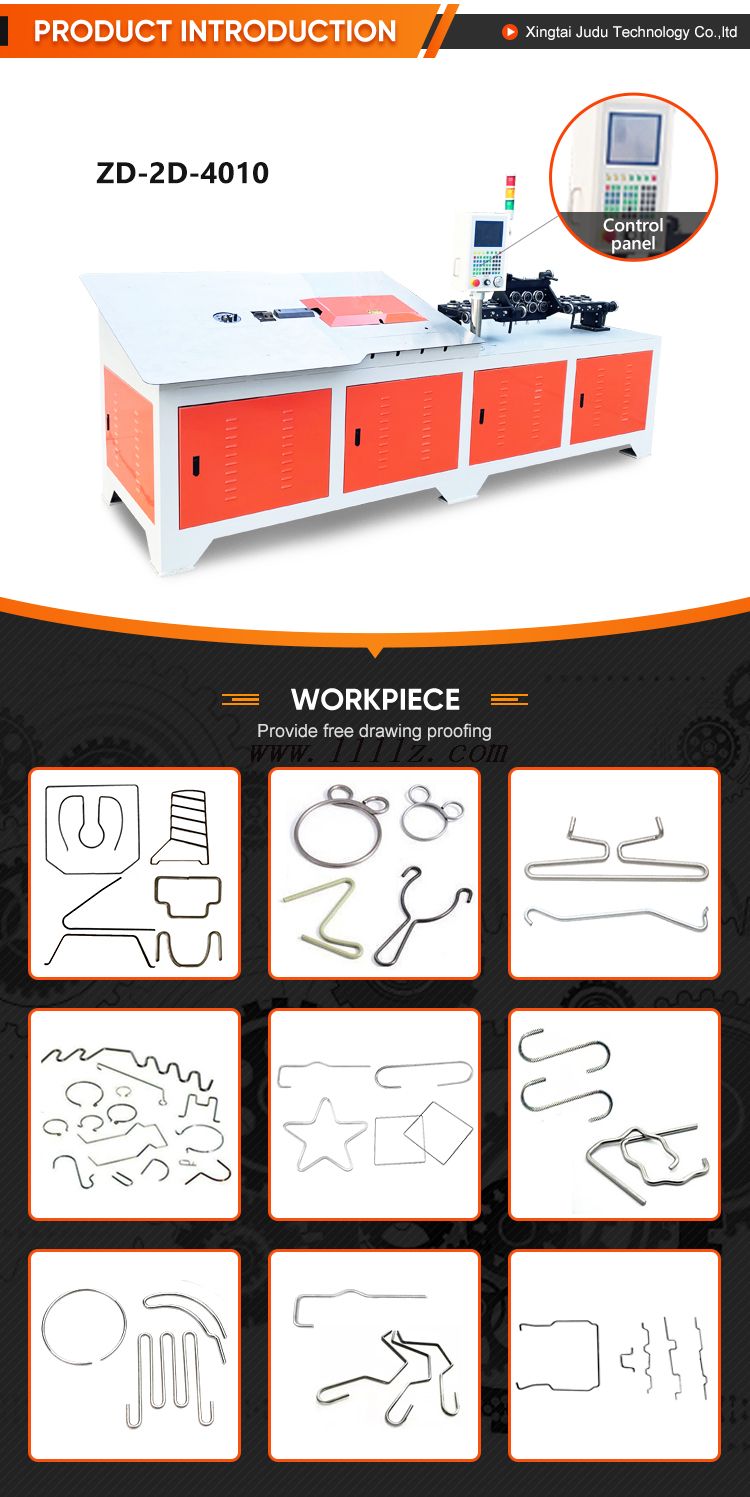

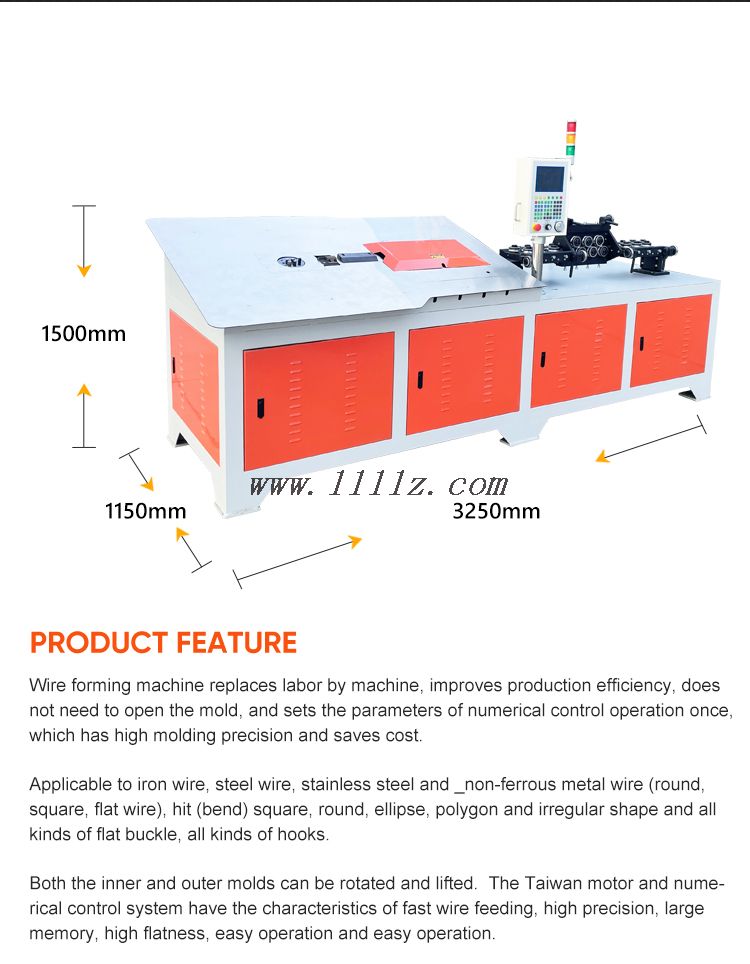

steel iron wire shaping 2d bender 2D wire bending machine
Brief description: wire bender bending machine is fully automatic production of various 2D molded parts, no need for mold, as long as the parameters are set in the electric box, you can bend out the ideal 2D shape, the wire diameter range is suitable for 4.0- 10.0mm.
Instead of manipulating the material by machine instead of manual, it can be produced without opening the mold. What shape you need to bend, as long as it is on a flat surface, our machines can meet your needs.
Applicable to iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat wire), curved, square, round, hexagonal, elliptical with irregular shape and various flat buckles, all kinds of hooks.
The application of wire bender bending machine :
1. auto parts: car seat frame, door lock lever, serpentine spring, including single snake and double snake, car cat head circlip, car seat belt circlip, car seat wire parts, motorcycle parts, bicycle Spare parts and baskets are more suitable for production with wire forming machines;
2. daily hardware products: kitchen display racks, racks, egg beaters, cabinet pull baskets, refrigerator grids, racks used in the bathroom wire products, supermarket shopping baskets, carts, display pendants and so on.
3. iron wire craft products, lighting line molding products, fishing gear accessories products, including wine racks, fruit pots in KTV, Christmas wire-formed gifts, all use different shapes of steel wire or iron wire winding Plane or three-dimensional pieces.
4. various cage processing: pet cages, bird cages, dog cages, breeding cages, trap cages, etc.
5. hangers, shoe hanging, curtain hooks, shelf hooks, display hooks and other hooks.
Advantages of wire bender bending machine :
1. Automatic straightening, automatic cutting, automatic push bending, non-interference, one-time forming, unmanned operation, the efficiency is 4-5 times of the traditional model;
2. The internal mold and external mold can rotate and lift, the programming accuracy of each axis is 0.1 unit, the control accuracy is 0.01 unit, and the operation is simple and easy to learn;
3. Adopt servo motor control as a whole, eliminate backward hydraulic system, prevent noise and oil pollution, and ensure 100% of the machine's
Quality and stability;
wire bender bending machine features:
1. The traditional manual butt welding can be completed independently with one equipment, and the Sino German welding machine can directly
Straightening, wire molding machine, to butt welding one-time molding;
2. Save manpower and material resources, save production cost and improve work efficiency;
3. The flatness of the workpiece is controlled by the positioning grip, with high production efficiency. One operator can operate multiple welding machines at the same time,
High cost performance;
4. Numerical control operation, simple and easy to learn, high precision butt welding, smooth and flat welding joint, high efficiency;
5. Bending frame welding machine, our structure is more stable and professional, increase welding yield, and its structure is small in fastening volume,
Reasonable layout, low noise, beautiful appearance, advanced control technology, stable movement performance, fast production speed,
The product size is accurate, realizing the features of power saving, high production and low cost.
After sales support:
1. Greatcity machinery has a strong after-sales service team support, first-class technology casting extraordinary Sino German machinery, if there is a problem, call after-sales phone to provide you with any door-to-door service within 24 hours;
2. When we sell wire bender bending machine , we will also provide comprehensive development suggestions for your production. For start-up customers, we can provide you with a series of consulting services;
3. All customers who buy our products enjoy one-year free warranty and lifelong maintenance, as well as related technical support, and the system is free within two years
Features of Greatcity 3D wire bender bending machine :
1. This machine is a 7-axis CNC automatic wire rod forming machine developed by our company;
2. The machine adopts many servo motors, computer operating system, reducer and screw slide rail, all of which are well-known brands, greatly improving the accuracy and performance of the machine, making the machine fast in production, good in stability, durable, low in failure rate, fast in adjustment, 7-axis linkage, etc;
3. The rotation function makes the production of wire rod more zigzag angle through the rotation of the rotation head of the shaft. It is more convenient and quick to debug the 3D products with high difficulty. The rotation angle can reach 340 °, which greatly improves the rotation angle required in the production;
4. The computer can store more than 10000 control programs through computer control;
5. The working twist can be lifted up and down, the forming space is larger, and it is more convenient for the production of 3D products;
6. Auxiliary lifting tray: it plays a supporting role to avoid possible deformation due to self weight and particularity of the product during production and ensure the stability of the product;
7. The system adopts the built-in intelligent module, which can switch the Chinese and English operation interfaces. The operation is simple and easy to learn. During production, the angle can be automatically detected, and the production quantity can be set. If there is any unqualified product, it will be shut down immediately. If there is no material, it will be automatically alarmed and shut down, and it will not empty the machine or waste product;
wire bender bending machine , also known as 2D wire forming machine, is mainly applicable to the forming of automobile parts, motorcycle parts, snake spring, bicycle parts, basket, commodity hardware, shelf, refrigerator basket, wire, handicraft, lighting, pet cage, hook, etc The quality is the pioneer management idea, which makes the wire rod forming machine more efficient and stable in the subsequent use process.
Packing ofwire bender bending machine 1. 1 pc wood cartton ,carton weight 1000kg,dimension:2800mm*850mm*1500mm. 2. The packing can do as customers' requirement.
By sea to your nearest port; By air to your nearest airport; By express (DHL,UPS,FEDEX,TNT,EMS)to your door; Ship to the warehouse in China according to the customers' requirement
Our factory products exported to Asia, Africa, and other countries and regions, we are abide by integrity and innovation, entrepreneurial spirit, relying on leading research and development capabilities efficient manufacturing, stable quality and good service to meet the needs of our customers at home and abroad, the company has now passed the ISO9001:2000 international quality management system certification.
1.Greatcity is a powerful manufacturer. We have absolute confidence in the quality of our products and provide customers with high-quality after-sales service. All customers who buy wire rod molding machine from us enjoy free service within one year and lifelong system upgrade;
2. After sales service Greatcity starts 24 hours and serves you at any time;
3. In order to ensure product quality and service, all products of greatcity. will regularly call or visit customers as part of the after-sales service of greatcity machinery. Please actively cooperate with the company's personnel to call back. We will provide timely solutions and help according to the opinions and problems raised by customers;
4. The company establishes customer training system.
