JD-2DWD
zhongde machinery
8463300000
Mechanical features and functions:

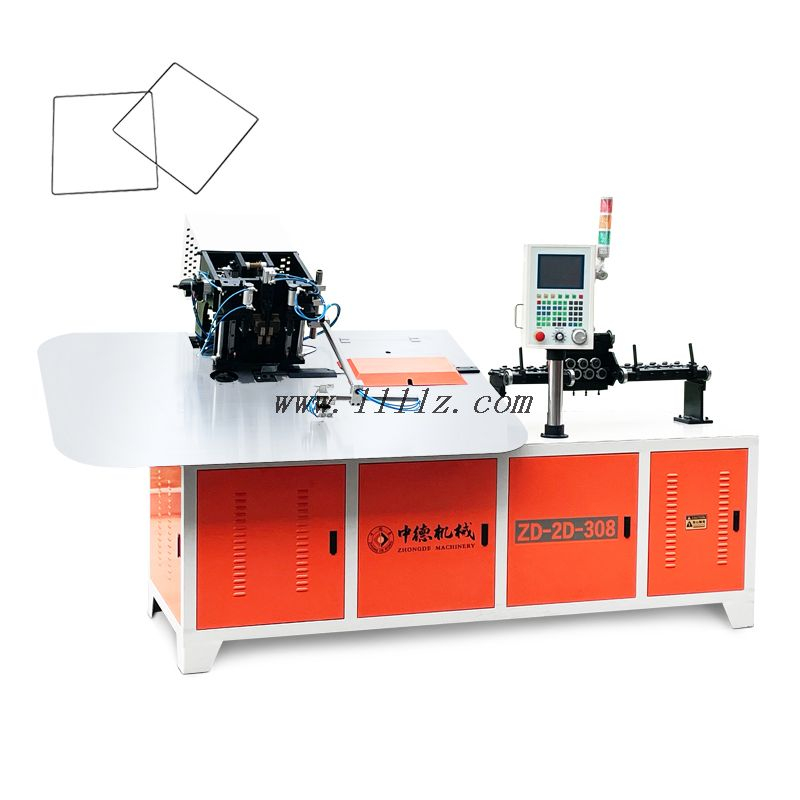

wire bending welding machine
This machine is designed for wire bending on a flat surface, Applicable to iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat wire), can bend many shapes products such as square, round, hexagonal, elliptical irregular and various flat buckles, various hooks, etc. The length tolerance is less than 1mm, Usually used in iron wire products, fan mesh, crafts, lampshades and other industries.
wire bending welding machine technical specification :
Model | ZD-2D-206 |
number of axles | 3 |
processing wire dameter range | 2—6mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 100 |
Servo motor power of feeding shaft(kW) | 1.5 |
Power of Servomotor for Cutter Shaft(kW) | 1.5 |
Power of Folded Axis Servomotor(kW) | 1.5 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 25-30pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 600 |
Dimension (length*width*height mm) | 2400×1000×1400MM |
wire bending welding machine video link on youtube
Our company promise: Reasonable prices, short production time and satisfactory after-sales service. We are confident in producing the best machinery and service, please feel free to contact with us if you are interested in any of our machinery. We are honored to have opportunity of establishing a business relationship with your esteemed company.
Packaging information: standard export wooden case packing for wire bending welding machine
We have our own farwarder. and check the delivery information timely.
You can also choose your own forwarder . We will contact with him ASAP.
Delivery time: 7-15 days after receiving the deposit
1. Q: What is the power supply of the wire bending welding machine ?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
