ZD-2D-308
Greatcity
8463300000

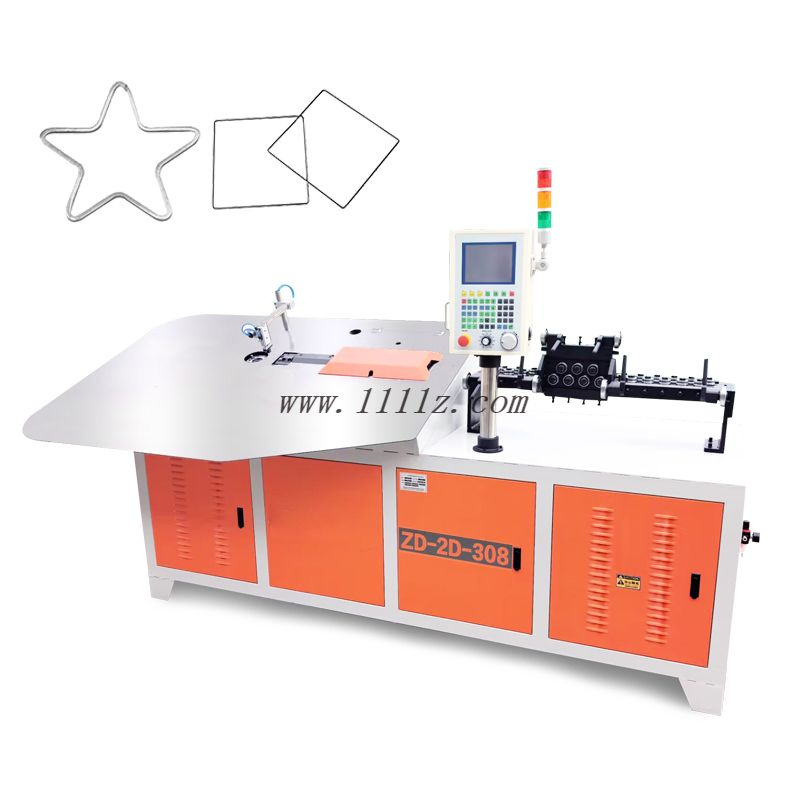

3 Axes 2D Metal Processing CNC Zigzag Metal Wire Bending Machine Supplier From China
2D CNC Steel Wire Forming Machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.
Advantages & Features:
1.3-4 pairs feeding roller , feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable.
2.Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.
High quality CNC automatic metal wire bending machine
Application field:
1. Auto Industry area
2. Metal wire industry
3. Display table and cargo shelf
4. Furniture and Kitchen
5. Hardware industry
6. Mattress, Sofa spring area
7. Architecture area
ZD-2D-308 model Zigzag Metal Wire Bending Machine technical specification:
Model | ZD-2D-308 |
number of axles | 3 |
processing wire dameter range | 3—8mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 22 |
Servo motor power of feeding shaft(kW) | 2.9 |
Power of Servo motor for Cutter Shaft(kW) | 1.0 |
Power of Bending Axis Servo motor(kW) | 1.8 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 20-24pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 800 |
Dimension (length*width*height mm) | 3000×950×1500 |
Zigzag Metal Wire Bending Machine video link on youtube :
https://www.youtube.com/embed/eeFWDMDSQjc?si=97KvVO0vICSzl9aa
Greatcity brand Zigzag Metal Wire Bending Machine and 2d Wire Bender Machine 2D Automatic CNC wire bending machine 3D/2D CNC steel wire bending machine manufacturer easy operating and cheap price Automatic cnc 2D metal steel zigzag spring wire bending forming machine
Application:
1. Auto Industry area
2. Metal wire industry
3. Display table and cargo shelf
4. Furniture and Kitchen
5. Hardware industry
6. Mattress,Sofa spring area
7. Architecture area
Zigzag Metal Wire Bending Machine
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
FAQ
1.Q:Are you Zigzag Metal Wire Bending Machine manufacturer?
A:Yes, We are manufacturer.
2.Q: What are the payment terms?
A: Pattern of pattern :we can accept L/C ,T/T , Western Union , Money Gram
3. Q: What is the whole business flow cooperation with us ?
A:1.Firstly,send your inquiry to us,make us have learned your requirement
2.We will be drawing a proforma invoice according to your requirement ,and start production after you finished to pay
30% deposit.
3.All of the goods, packing details, and B/L copy will be send to buyer after finished production. We will arrange
shipment and provide original B/L after the buyer finished to pay the balance.
4. Q: What if you encounter technical problems?
A:Please contact us as soon as possible and let us know what kind of technical problems you encounter and the
details. We will give you a solution within 24 hours.
5. Q: What advantages we have?
A: Rich experience: We have been in this line for 20 years . we can provide solution according to the problem of the buyer meet in the production process.
