| Diameter of wire: | |
|---|---|
| Machine Type: | |
| Material: | |
| Applicable wire: | |
| Control system: | |
| Quantity: | |
ZD-2D-612
Greatcity
8463300000
Product strength:
Our company makes use of advanced production equipment and testing equipment following the ISO9001 quality assurance system, which is in strict accordance with the requirements of production to ensure product quality and reliability. The production process to implement the "three inspection" (self-inspection, mutual inspection, special inspection) procedures to ensure control of product quality. The manufactured products require the "three pass" (raw material into the plant pass, semi-finished product pass, finished off the factory pass) to ensure reaching the required quality; finished product storage, transportation and sales in the market were also included in the product quality management.

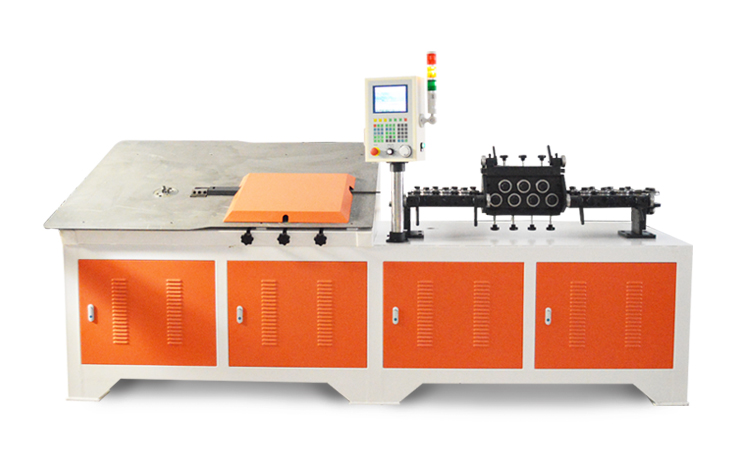

ZD-2D-612 model pneumatic wire bending machine technical specification:
Model | ZD-2D-612 |
number of axles | 3 |
processing wire dameter range | 6—12mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 22 |
Servo motor power of feeding shaft(kW) | 4.5 |
Power of Servomotor for Cutter Shaft(kW) | 2.3 |
Power of Folded Axis Servomotor(kW) | 3.8 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 20-24pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 2300 |
Dimension (length*width*height mm) | 3250×1200×1300 |
pneumatic wire bending machine video link on youtube :
https://www.youtube.com/embed/eeFWDMDSQjc?si=97KvVO0vICSzl9aa
Product strength
In each stage of process from product development, production and sales we adhere to make the strict management, control and following National Standards, which is in strict accordance with the requirements of production to ensure product quality and reliability; Resistance spot projection welding machine has passed Certification for China Compulsory Product Certification.
Standard export plywood case packing or pack with customers' request.
Payment type: T/T(Confirm contract pay 40% deposit, pay the balance before delivery).
We can offer OEM or ODM service, according to customers requirements.
Warranty: One year warranty, the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing parts and the items of wrong using), and the delivery cost will bear on the buyer’s account.
The process shapes of automatic pneumatic wire bending machine
Our machine could process 500 kinds shapes
Main accessories of wire bending machine
pneumatic wire bending machine
Packing : standardn export seaworthy wooden case
Shipment: about 3-7 days after receipt of the deposit.
By sea to your nearest port;
By air to your nearest airport;
Ship to the warehouse in China according to the customers’ requirement
FAQ:
Q1: Are you a factory or a trading company?
A1: We are a machine manufacturer for more than 20 years.Our factory is located in Foshan,Guangdong,China.
Q2: I want to produce some iron products,could you offer the corresponding machine to me?
A2: Of course,please tell me the material and the size of your products,and have better offer the photos or drawing to us,I would recommended the machines to you.
Q3: Do you offer the custom machine service?
A3: Yes,please offer the samples or the drawing of your products,then we could make a design to custom the machine for you.
Q4: Could you arrange the technicist to repair the pneumatic wire bending machine oversea?
A4: Yes.But the cost of travel need pay by customers.
Q5: Could you teach me how to use and debug the machine?
A5: Of course.We could send the videos to teach you and we have manual for you.
Q6: What is your warranty period?
A6: One year warranty, the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing the mould, wearing parts and the items of wrong using), and the delivery cost will bear on the buyer’s account.
Q7: Could you help to weld(produce) some samles for me?
A7: Yes,please sent us the raw material,I would help to weld(produce).
Q8: How many years could your machine use?
A8: More than 10 years if you have a right operation and maintain.
Product strength:
Our company makes use of advanced production equipment and testing equipment following the ISO9001 quality assurance system, which is in strict accordance with the requirements of production to ensure product quality and reliability. The production process to implement the "three inspection" (self-inspection, mutual inspection, special inspection) procedures to ensure control of product quality. The manufactured products require the "three pass" (raw material into the plant pass, semi-finished product pass, finished off the factory pass) to ensure reaching the required quality; finished product storage, transportation and sales in the market were also included in the product quality management.
ZD-2D-612 model pneumatic wire bending machine technical specification:
Model | ZD-2D-612 |
number of axles | 3 |
processing wire dameter range | 6—12mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 22 |
Servo motor power of feeding shaft(kW) | 4.5 |
Power of Servomotor for Cutter Shaft(kW) | 2.3 |
Power of Folded Axis Servomotor(kW) | 3.8 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 20-24pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 2300 |
Dimension (length*width*height mm) | 3250×1200×1300 |
pneumatic wire bending machine video link on youtube :
https://www.youtube.com/embed/eeFWDMDSQjc?si=97KvVO0vICSzl9aa
Product strength
In each stage of process from product development, production and sales we adhere to make the strict management, control and following National Standards, which is in strict accordance with the requirements of production to ensure product quality and reliability; Resistance spot projection welding machine has passed Certification for China Compulsory Product Certification.
Standard export plywood case packing or pack with customers' request.
Payment type: T/T(Confirm contract pay 40% deposit, pay the balance before delivery).
We can offer OEM or ODM service, according to customers requirements.
Warranty: One year warranty, the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing parts and the items of wrong using), and the delivery cost will bear on the buyer’s account.
The process shapes of automatic pneumatic wire bending machine
Our machine could process 500 kinds shapes
Main accessories of wire bending machine
pneumatic wire bending machine
Packing : standardn export seaworthy wooden case
Shipment: about 3-7 days after receipt of the deposit.
By sea to your nearest port;
By air to your nearest airport;
Ship to the warehouse in China according to the customers’ requirement
FAQ:
Q1: Are you a factory or a trading company?
A1: We are a machine manufacturer for more than 20 years.Our factory is located in Foshan,Guangdong,China.
Q2: I want to produce some iron products,could you offer the corresponding machine to me?
A2: Of course,please tell me the material and the size of your products,and have better offer the photos or drawing to us,I would recommended the machines to you.
Q3: Do you offer the custom machine service?
A3: Yes,please offer the samples or the drawing of your products,then we could make a design to custom the machine for you.
Q4: Could you arrange the technicist to repair the pneumatic wire bending machine oversea?
A4: Yes.But the cost of travel need pay by customers.
Q5: Could you teach me how to use and debug the machine?
A5: Of course.We could send the videos to teach you and we have manual for you.
Q6: What is your warranty period?
A6: One year warranty, the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing the mould, wearing parts and the items of wrong using), and the delivery cost will bear on the buyer’s account.
Q7: Could you help to weld(produce) some samles for me?
A7: Yes,please sent us the raw material,I would help to weld(produce).
Q8: How many years could your machine use?
A8: More than 10 years if you have a right operation and maintain.
