JD-PR-8S
Greatcity
8474802000

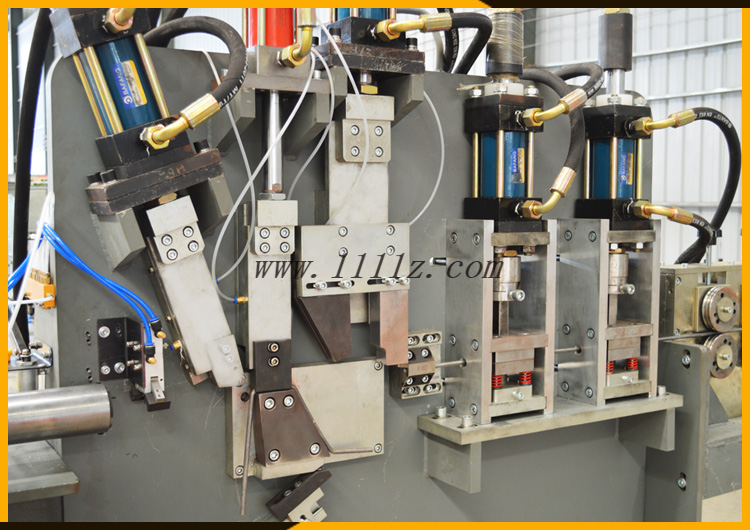

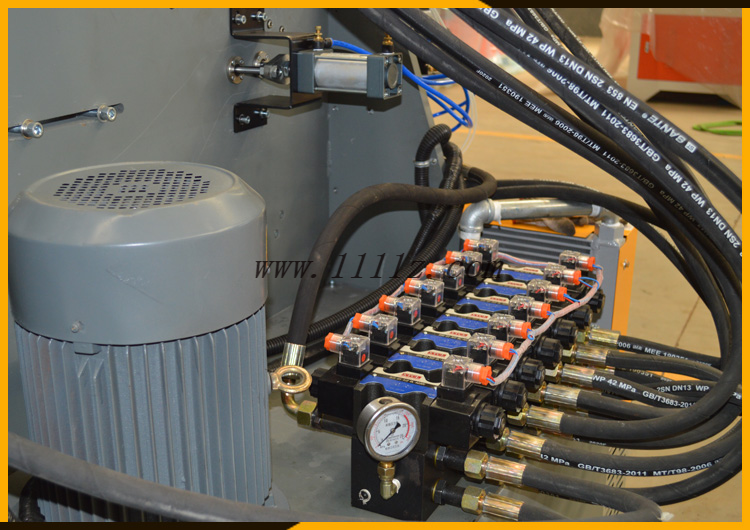

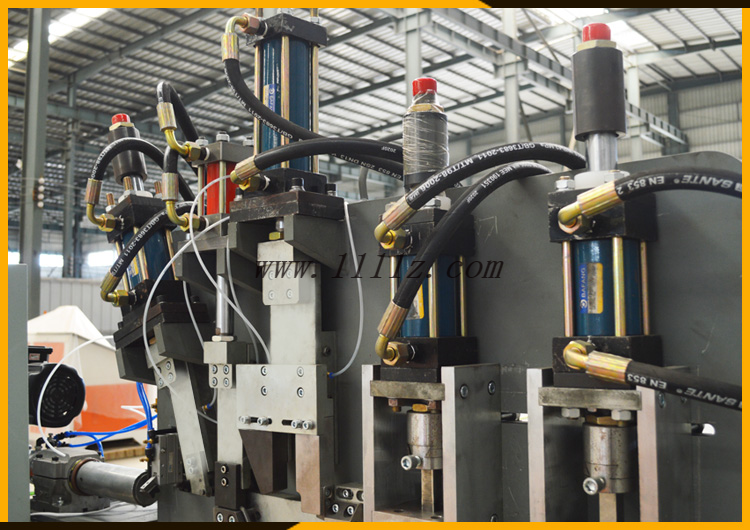

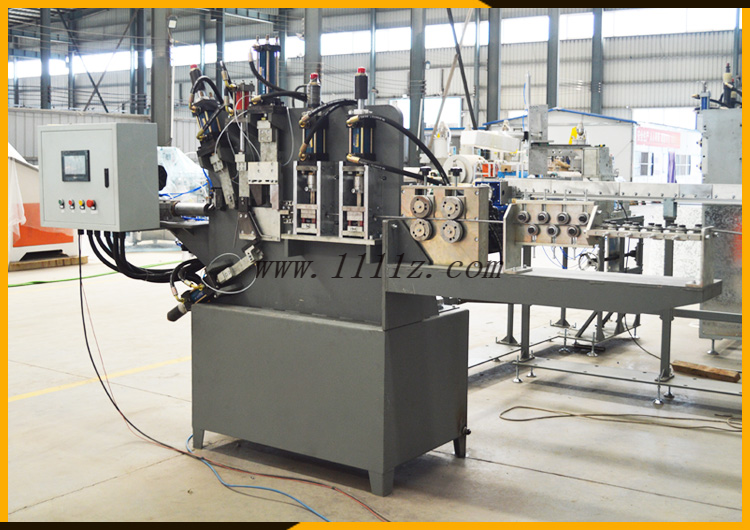

Automatic Hydraulic Machinery Making Paint Roller Handles

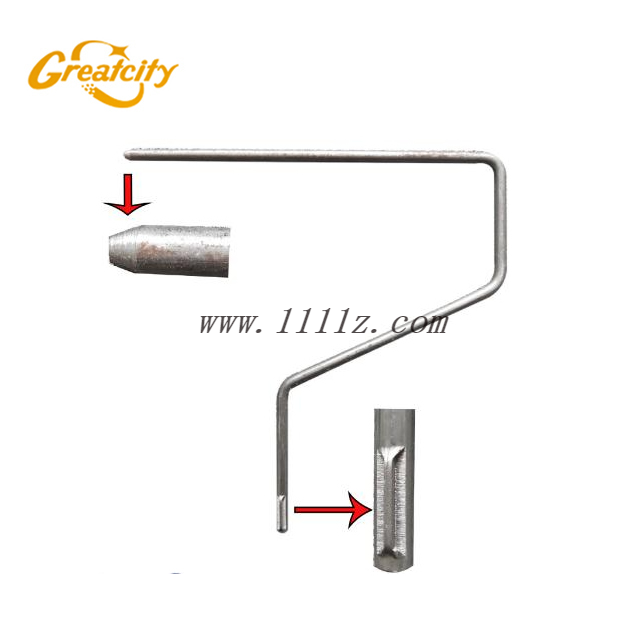

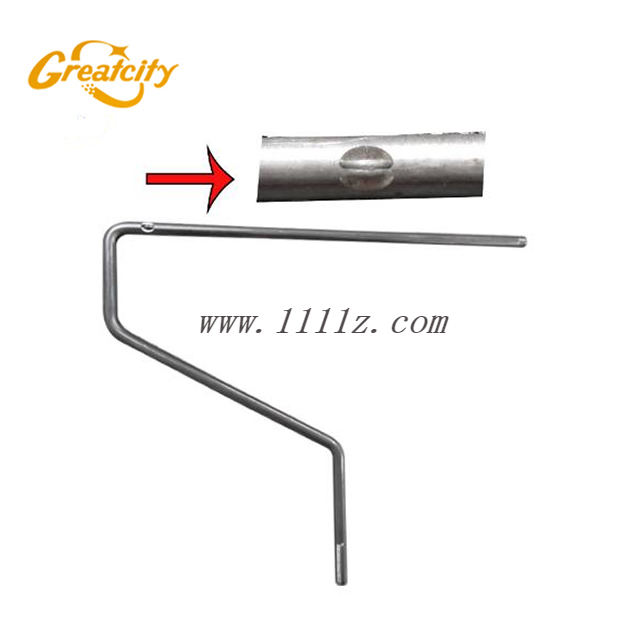

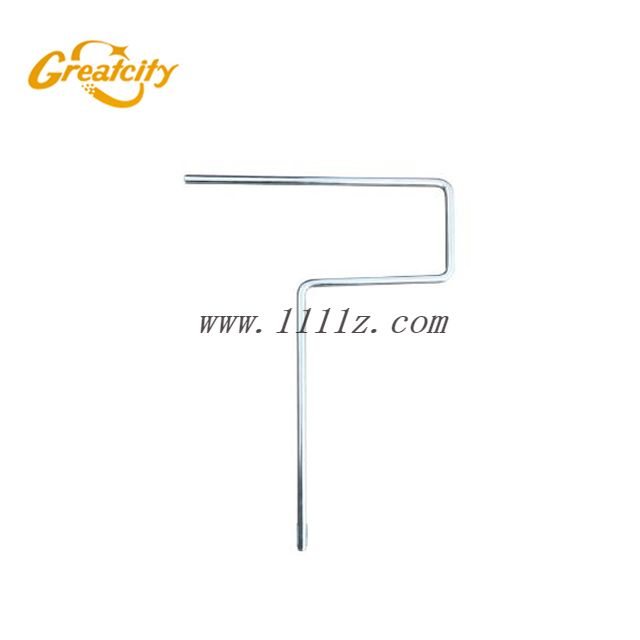

machinery making paint roller is to produce paint roller handle frame expertly. It can not only make lips stamping but also threading and end chamfering fully automatically. Plastic cover dressing device can be manual type or combined in line in automatic type for options and pin making machine is also available upon request. This is high efficient automatic machine which can save labor and electricity, and good output with high precision. Plalstic gripper was optional upon request.
Other advantages:
Fully automatic, saving in both time and labor cost
High precision, in ±0.1mm
High yield rate
machinery making paint roller Technical parameter:
| Model | JD-PR-8S | JD-PR-8RS | JD-PR-8MU | JD-PR-4 |
| Function | chamfering | chamfering +threading | overdue long type | pin punching |
| wire size | 3-8mm | 3-8mm | 3-8mm | 1.5-4mm |
| Feeding length | 0-500mm | 0-500mm | 0-900mm | 0-500mm |
| production capacity | 15pcs per minute | 12pcs per minute | 12pcs per minute | 25-30pcs per minute |
| motor power | 5.5kw | 5.5kw | 5.5kw | 5.5kw |
| dimension | 230*127*192cm | 230*127*192cm | 245*127*195cm | 180*120*178cm |
| weight | 1300kg | 1350kg | 1400kg |
machinery making paint roller video link
Xingtai Judu Technology Co.,LTD has more than 10 years professional production of Automatic Paint Roller Handles Making Machine , hanger production equipment experience, with high quality research and development, management and production. The team, relying on scientific and rigorous management, equipped with perfect means of production and testing conditions, is the birthplace of important metal wire and hanger equipment in China, and integrates research and development design, manufacturing and sales clothing as a whole enterprise. The company has independent research and development of a number of wire molding patents, company legal person comes to production and research and development frontline, independent research and development.
1. How was about your machinery making paint roller quality?
1)we have been manufacturing bending machinery for over 10 years, all of our machines with experienced fabrication and good assembling. 2)our factory are SGS, TUV inspected and machines are all CE certified.
2. If your machine got problems, how can we do that?
1).all of our machines are under one year guarantee period. and our CNC controlling system enjoy 3 years guarantee , everlasting technical support.
2).we have many distributor and local agent in your country, who can do on-site after-sale service. we can also dispatch our technician to your factory for big problem shooting in case of big problems.3. How can we learn to operate your machine?
1)you can send people to our factory to get training of how to use machine before delivering machine. or we are requested to send technician to your factory to do commissioning and basic training.
2). after commissioning , if you still not very skillful of the operation, we can give you online camera video training. 3). our sales team was 24 hours on-line for pre-sale, and after sale service. you can contact us at any time.4. What is your payment term and Incoterm ?
1)we accept payment term as L/C and TT.
2) we accept Incoterm as Ex-works, FOB ,CNF and CIF.5. What is your offer composition?
our offer include machine , decoiler , mold or tools and Export wooden case packing
