| Diameter of wire: | |
|---|---|
| Machine Type: | |
| Material: | |
| Applicable wire: | |
| Control system: | |
| Quantity: | |
ZD-2D-308
Greatcity
8463300000

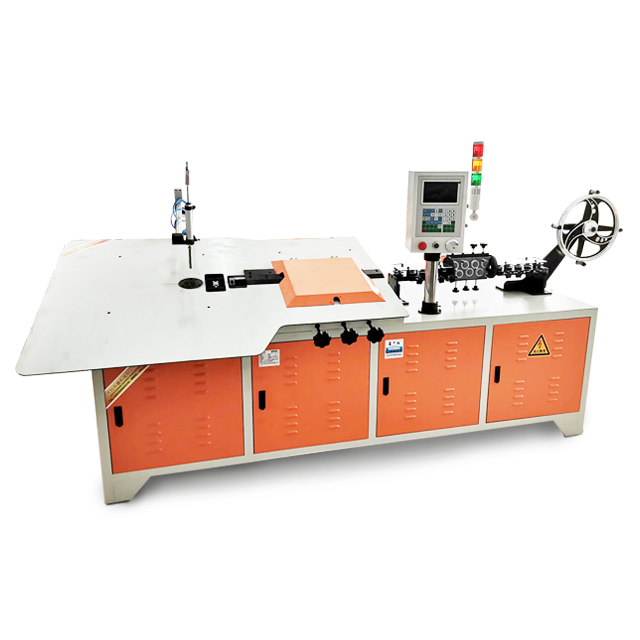

Advantages of 2D CNC bending machine:
1. Adopt dedicated computer system by Taiwan wire forming machine and imported high-density servo motor.
2. Easy to operate, accurate positioning and can store hundreds of different processing procedure, shorten the time for the next time debugging
3. According to the situation on the screen, can modify Angle at any time.
4. When there is no line, broken line or tangled lines, automatic stop designed. And the line automatic acceleration make production easier and effective.
5. Applicable to products: car seat suspension spring, visor skeleton, car lock rod, wire arts and crafts, clean tableware bracket, storage cage, shopping carts, etc
ZD-2D-308 model 2D CNC bending machine technical specification:
Model | ZD-2D-308 |
number of axles | 3 |
processing wire dameter range | 3—8mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 22 |
Servo motor power of feeding shaft(kW) | 2.6 |
Power of Servomotor for Cutter Shaft(kW) | 2.0 |
Power of Folded Axis Servomotor(kW) | 2.0 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 20-24pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 800 |
Dimension (length*width*height mm) | 3000×1000×1400 |
2D CNC bending machine video link on youtube :
https://www.youtube.com/embed/eeFWDMDSQjc?si=97KvVO0vICSzl9aa
1. A 2D CNC bending machine. The angled parts cooperate with each other to produce different products. The commissioning time is short. For new products, only simple adjustments are needed. After commissioning, the products can be produced and the delivery speed can be improved.
2. The function of the transfer line is made by the rotation of the wire itself, which makes the production of multi-angled corners more convenient, faster and faster.
Price : Give me reply, i will give you my favorable price immediately !
Payment term : 30% deposit and the balance paid against copy of B/L in 3 days .
Package : Standard exporting package .
Operation manual and video disc :
When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc .
2D CNC bending machine
Packing : standardn export seaworthy wooden case
Shipment: about 3-7 days after receipt of the deposit.
By sea to your nearest port;
By air to your nearest airport;
Ship to the warehouse in China according to the customers’ requirement
The guarantee period is one year since the date B/L. During this period, we will offer free parts for changing if machine quality problem.
Also the spare parts can be offered in original cost after that. The freight for part sending will be paid by buyer.
We offer free training here in China. Also we can send technicians oversea for whole line installation and training.
The relevant cost including Visa, insurance, round flight ticket, labor cost and accommodation should be borne by buyer.
