Z28-80 type bolt thread rolling machine introduction
1. The two main shafts of the machine are synchronized and rotated in the same direction. The right main shaft is fed in the horizontal direction under the rolling pressure. The two rolling rollers roll the workpiece to make it the required thread and other shapes.
2. The main organic body, rotating box, fixed spindle seat, movable spindle seat, hydraulic system and electrical parts.
3. The fixed spindle seat and the movable spindle seat are mainly used to adjust the tooth position adjustment of the rolling wheel and the rolling wheel.
4. The center distance between the two spindles of the machine is adjusted so that the two spindle seats are respectively adjusted to the center, that is, the workpiece is in the center of the machine when it is rolled, and the workpiece is rolled and passed through the machine. The angle between the spindle axis and the table surface can be adjusted within ±3°. The axial feed per revolution of the workpiece during rolling can be determined according to the parameters of the workpiece and the mechanical properties of the workpiece material.
5. The hydraulic system is the feed power of the machine, which mainly makes the movable spindle seat feed and retract movement.
Z28-80 type bolt thread rolling machine application
This model thin-pipe thread making machine is Large design,more stable models,large diameter,large pitch, high precision,superior performance
SPECIFICATIONS FOR GREATCITY bolt thread rolling machine ZP28-80C | ||||
Rolled thread range | mm | Max diameter | Φ60 | |
Min diameter | Φ5 | |||
mm | Outside dia | Φ120--φ170 | ||
Hobbing wheel range | mm | Hole dia | Φ75 | |
mm | Max width | 100 | ||
Maximum rolling pressure | KN | 200 | ||
Main axis obliquity | . | +-5angle | ||
Hydraulic auto feeding time regulation range | s | 0.1-99.9 | ||
Cease time regulation range | S | 0.1-99.9 | ||
Main axis transmission power | kw | 11kw-4 | ||
Hydraulic transmission power | Kw | 3 | ||
machine weight | Kg | 2600+-50 | ||
Dimensions | Mm | 2200*1450*1600 | ||

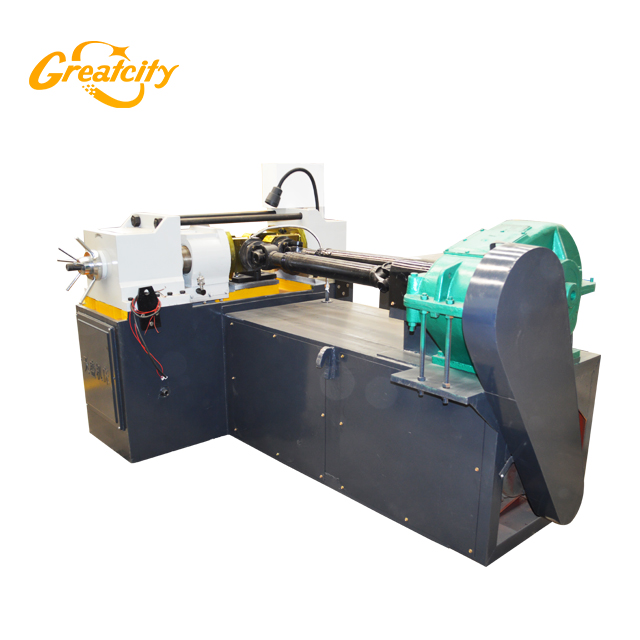

Z28-80C bolt thread rolling machine picture show
We have Many models bolt thread rolling machine s,Z28-215,Z28-150B,Z28-80B,,Z28-40C,and so on.
All the diameter we can thread rolling, pls provice us the diameter and the type of your raw material, then i will recommed you the best model fit for you.
The thread rolling scope:
Z28-215: 8mm-100mm
Z28-150B: 5mm-56mm
Z28-80B: 5mm-48mm
Z28-40C: 5mm-36mm
Our service:
1. Help you choose the most suitable bolt thread rolling machine
2. Making the machine according to your request.
3. Give you machine’s details for help you use the machine more better.
4. five years quality warranty
5. Free repair whole using life without extra charge.
bolt thread rolling machine 'packaging is professional export wooden case
Shipping is by sea,by train
Delivery time:within 5-10days
1. Do you have any warranty?
Yes, we have. five years warranty on host machine is given. 12 months free replacement warranty for spare parts.
2. How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
3. What is the Lead time of goods ?
Goods can be sent within 45 days according to our production arrangement .
4. What kinds of payment terms are acceptable to you ?
We usually accept L/C at sight and T/T ( 50% in advance and 50% before shipment ) .
5. Do you have customers in our country?
We are the leader thread rolling machine supplier in China, also we have customers worldwide, such as America, Argentina, Brazil, Belarus, Bangladesh, Germany, Israel, India, and Italy.
