Z28-80C
Greatcity
8462419000
Production introduction :
screw thread rolling machine is a multifunctional cold extrusion rolling thread machine, the workpiece in the cold rolling pressure range can be made to straight lines, twill, spur, helical and bevel gear spline rolling; straightening, necking, rolling light and various rolling forming. The machine has safe and reliable electric liquid control system and implementation, which can make each work cycle in manual, semi-automatic and automatic selection in three ways.
The cold rolling is an advanced non cutting process, which can effectively improve the internal and surface quality of workpiece, the radial compressive stress produced during processing, and can significantly improve the fatigue strength and torsion strength of the workpiece. It is an ideal process with high efficiency, energy saving and low consumption.
SPECIFICATIONS FOR GREATCITY screw thread rolling machine ZP28-80C | ||||
Rolled thread range | mm | Max diameter | Φ60 | |
Min diameter | Φ5 | |||
mm | Outside dia | Φ120--φ170 | ||
Hobbing wheel range | mm | Hole dia | Φ75 | |
mm | Max width | 100 | ||
Maximum rolling pressure | KN | 200 | ||
Main axis obliquity | . | +-5angle | ||
Hydraulic auto feeding time regulation range | s | 0.1-99.9 | ||
Cease time regulation range | S | 0.1-99.9 | ||
Main axis transmission power | kw | 11kw-4 | ||
Hydraulic transmission power | Kw | 3 | ||
machine weight | Kg | 2600+-50 | ||
Dimensions | Mm | 2200*1450*1600 | ||

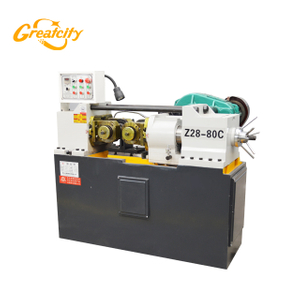

Z28-80C screw thread rolling machine picture show
1. What is the Lead time of screw thread rolling machine ?
Goods can be sent within 45 days according to our production arrangement .
2. What kinds of payment terms are acceptable to you ?
We usually accept L/C at sight and T/T ( 50% in advance and 50% before shipment ) .
3. Can you train our engineer ?
It's OK . We can provide a free training within 7 days . Teach your engineer how to operate our machine and how to maintain the machine , etc .
4. Can you offer work-piece machining ?
We can recommend work-piece lathe metal machines as per your sample pictures and drawings .
