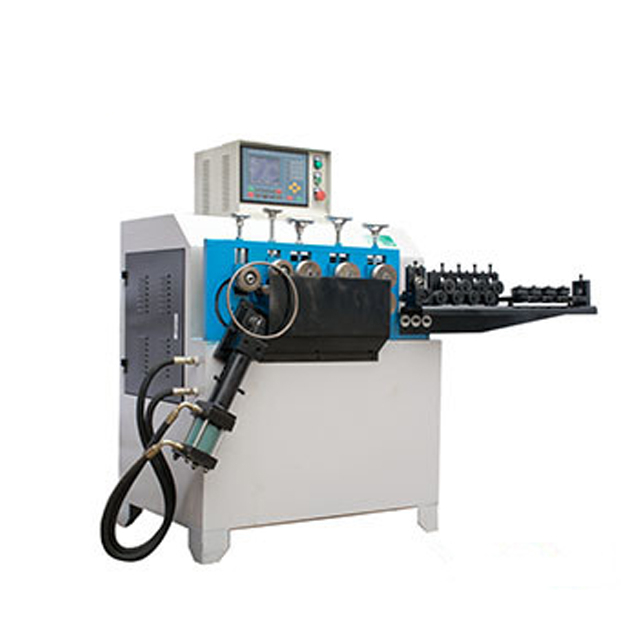

Automatic PLC round ring making forming machine

This round ring making machine adopts mechanical driven system , which is the expert machine produce rings with very fast speed.
it was widely used in Cloths and packing area. it is concentrating on open type ring making.

Product name:
Type:
Power:
Weight:
wire size:
Quantity:
  • JD-QZ6
  • Greatcity
  • 8462299000

Performance characteristics of round ring making machine :


(1) The servo looping machine is used in conjunction with the butt welding machine to realize a one-stop production line for looping and welding;

(2) Servo-driven wire coil forming and hydraulic cutting are used to make the product, and more than 95% of the servo part adopts imported electrical technology.

(3) Digital display and program control (using encoders from Japan, South Korea, etc. and preset counter controllers) with high accuracy in setting the length (circle refers to the perimeter).

(4) The control box is equipped with: fast feeding, cutting, automatic, manual, etc., complete functions and simple operation. Just set the data and work fully automatically without skilled workers.

(5) The line speed is as high as 60-70 m / min, which is more than 25% higher than the output of similar domestic models.


The main purpose of automatic round ring making machine:

This machine is widely applicable to the winding circle, semicircle or arc of any angle (concentric angle) of various wires. With special molds and adjustable rollers, it can also produce square and oval workpieces. The plate only needs to be replaced by the adjusting wheel, the feeding wheel, the pressing wheel and the cutter. It is used to improve the product quality of industries such as cement poles, expanded air ducts, environmental protection dust removal skeletons, fan net covers, lampshades, crafts, flower pot holders, luggage fasteners, daily hardware kitchen utensils (such as stove racks, wine / cup racks), Equipment that reduces production costs and increases production capacity.

round ring making machine  technical specification:

Model JD-QZ6 JD-QZ8 JD-KCM40 JD-KCM60
Wire size 2-6mm 3-8mm 40T press 63t press
Ring inner dia 20-70mm 20-130mm 20-70mm 20-70mm
Production capacity/minute 60pcs 40-50pcs 60pcs 60pcs
Motor power 1.1kw 1.5kw 1.1kw 1.1kw
Dimensions(L*W*H) 1500*630*1530 1630*700*1680 1460*1350*2150 1460*1350*2350
Weight 500kg 550kg 1800kg 2100kg

round ring making machine video on youtube

ring making machine

ring making machine

ring making machine

ring making machine

This round ring making machine  was developed in the past two years in order to meet customer needs. Once listed, it has received numerous excellent reviews, and has become the first choice for the replacement of circle machines. Adopting servo motor drive and PLC programming control, the cost has increased a lot compared with the hydraulic circling machine, but it is more precise than the hydraulic circling machine. When customers inquire about the circular machine, they often ask what is the error of our circular machine. If you have stricter requirements on circle formation, this servo circular machine is your best choice. The perimeter accuracy is ± 0.10mm. No error.

ring making machine

round ring making machine Packaging:

Stable wooden package protects machine from strike and damage.

Wound plastic film keeps machine out of damp and corrosion.

Fumigation-free package helps the smooth customs clearance.

The big size machine will be fixed in container without package.



Shipping:

For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.

For FCL, we get the container and do container loading by our skillful workers carefully.

For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
