JD-2DWD
Greatcity
8463300000
Advantages & Feature:
2d steel wire bending machine is to produce kinds of 2D wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki Servo motorand screen display with Taiwan controller.

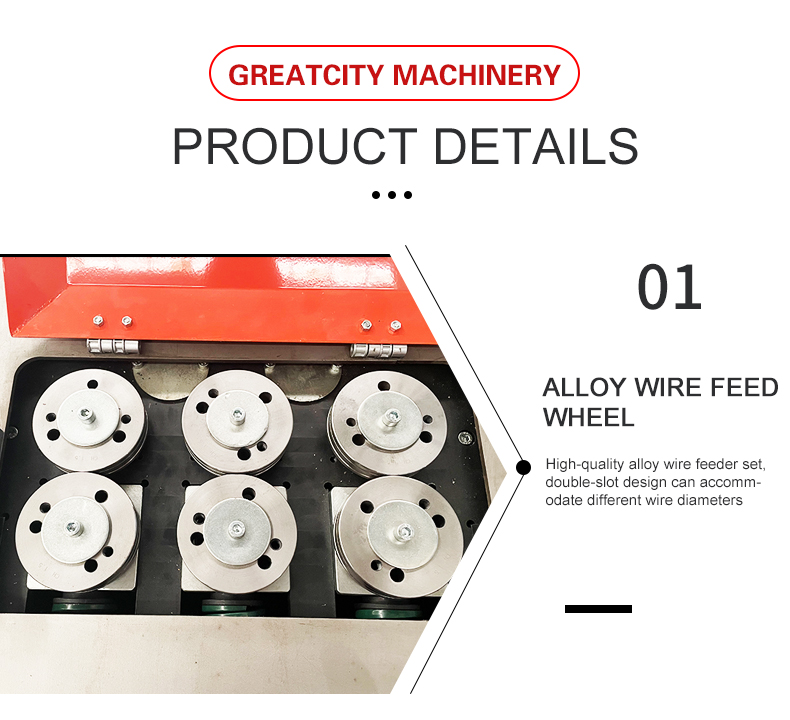

3-4 pairs feeding roller, feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotatings more fast and light, turning angle is more precise and stable.
Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.
Application Field:
1) Auto Industryarea
2) Netal wire industry
3) Furniture and kitchen
5) Hardware industry
6) Mattress, sofa spring srea
7) Architecture area
8) Hardware Artcrafe
2d steel wire bending machine technical specification :
Model | ZD-2D-206 |
number of axles | 3 |
processing wire dameter range | 2—6mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 100 |
Servo motor power of feeding shaft(kW) | 1.5 |
Power of Servomotor for Cutter Shaft(kW) | 1.5 |
Power of Folded Axis Servomotor(kW) | 1.5 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 25-30pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 600 |
Dimension (length*width*height mm) | 2400×1000×1400MM |
https://www.youtube.com/embed/rozbrffqWjo?si=v3fR8VUjz8mdo9V7
Founded in 1998, Xingtai Judu Technology Co.,ltd specialized in manufacturing all kinds of machinery. Our products now include 3D wire bending machine,2D wire bending machine, bucket handle machine, paint roller machine, thread rolling machine,CNC stirrup bending machine and so on. At the same time, we can produce according to our customers request. These products have been exported to the USA, Germany, Pakistan and Australia. We have 20 machine designer, 50 engineers and 300 workers. Our factory located in Xingtai, Hebei province, in a district known as machinery hometown, occupying an area of 30,000 square meters. We have more than 100 sets of equipments, which are operated by 300 workers. We also have a highly qualified technical team engaged in developing new items and dealing clients customized orders. Our annual export amount is over USD9,000,000. Having developed more than 500 kinds of machinery in the past 20 years, we are marketing all series under our brand. Working in line with the principle of " integrity, quality, service" we have already obtained ISO certification, meanwhile, all products meet the requirements of CE standards, with good quality, our products enjoy a high reputation among all clients, having cooperate with many famous machinery importers. Our company promise: Reasonable prices, short production time and satisfactory after-sales service. We are confident in producing the best machinery and service, please feel free to contact with us if you are interested in any of our machinery. We are honored to have opportunity of establishing a business relationship with your esteemed company.
1. Q: Are you a factory or trading company?
A: We have our own factory and have been over 10 years. Have rich experience in export
We have the improvement teams from design, manufacture....to installation, commissioning and staff training
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xingtai City, the capital of Hebei Province, 1.5 hours way by high-speed rail from Beijing to Xingtai
3. Q: How does your factory do regarding 2d steel wire bending machine quality control?
A: We test our machine before shipping. We have CE certificate.
4. Q: What shape and size can the machine make?
A: It adopt aptitude control . Can processing many size and specification shape . For example :square , rectangle , rhombus ,polygon and so on .
5. Q:What is the Mode of transportation ?
A:LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air
6. Q:How should I do if meet some trouble while using?
A:we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
