CE Professional High durability PLC automatic Bucket Handle forming Machine/wire bucket handle bending machine

bucket handle forming machine is to produce handles for bucket or pail expertly. We have 5 models for options:ordinary outer hook or inner hook type, reversing type, head type, multi-type mixed type, big blue handle heavy type for supermarket. Function includes automatic feeding - straightening - cutting - bending - hooking - wearing rubber handle - Finished product.
Availability:
Quantity:
  • JD5R

  • Greatcity

  • 8462919000


Simple introduction :

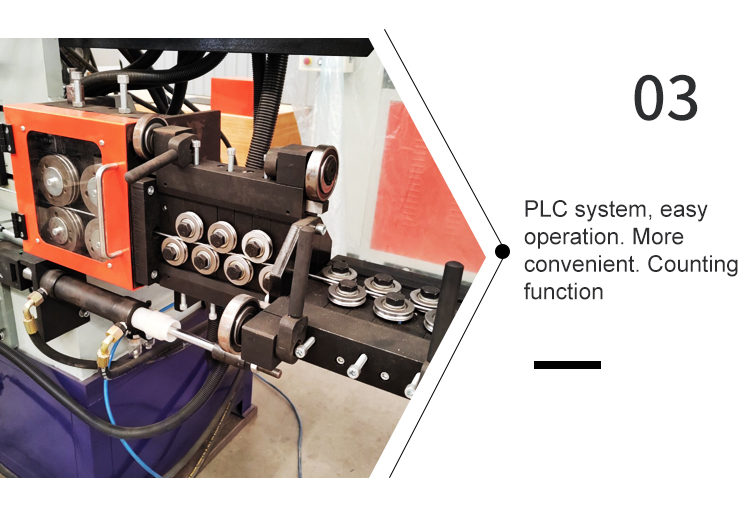

The  bucket handle forming machine uses a servo motor to feed, the tolerance of the feeding length reaches ± 0.3mm, the PLC uses Japan's Mitsubishi, and the contactors and switches use Schneider. Advanced machinery and equipment, easy and simple operation, production speed of about 10-12 per minute, stable production and high cost performance.



 Bucket Handle Forming Machine  technical parameters:

Model

JD8R

JD5R

JD5ER

JD5E

JDPF5

 Function

Rivet end

Rivet end

Mixed end

East-west

Outward hook

Wire size

3.0-8.0

2.0-5.0

2.0-5.0

2.0-5.0

2.0-5.0

End

stamping



Yes

Yes

Yes

No, east-west end

No

Plastic cover

Yes

Yes

Yes

Yes

No

Feeding length

700mm

700mm

700mm

700mm

700mm

Production rat(pcs/minute)

10~12

12~16

12~16

18~20

20~22

Motor power

 5.5kw*2

 5.5kw*2

 5.5kw*2

3.75kw*2

5.5kw

Size(mm)

1910X1100X1980

1910X1100X1980

1910X1100X1980

1890X1100X1950

1850x1100x1840

Weight

1400KG

1300KG

1300KG

1300KG

1200KG

 Bucket Handle Forming Machine video on youtube :



bucket handle forming machinebucket handle forming machinebucket handle forming machinebucket handle forming machinebucket handle forming machinebucket handle forming machine_08

wire bending machine 3pgwire bending machine 4 jpgsend inquiry 1customer good comment

Xingtai Judu Technology Co.,LTD has more than 10 years professional production of 2d and 3d metal wire bending machine equipment,  Bucket Handle Forming Machine,hanger production equipment experience, with high quality research and development, management and production. The team, relying on scientific and rigorous management, equipped with perfect means of production and testing conditions, is the birthplace of important metal wire and hanger equipment in China, and integrates research and development design, manufacturing and sales clothing as a whole enterprise. The company has independent research and development of a number of wire molding patents, company legal person comes to production and research and development frontline, independent research and development.

bucket handle forming machinegreatcity company

bucket handle forming machinebucket handle forming machineFAQ

Q.What are your normal lead times?

A.Our company typical lead times range from 3-4weeks after receipt of order.



Q.What are the terms of payments you offer?

A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.



Q.What kind of package do you offer?

A.Normally in plywood case, to make sure all goods in good condition.



Q.What is the MOQ for your bucket handle forming machine?

A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.



Q.Do you have CE certification

A.Yes, we have CE certification, machine quality is one year guaranteed.



Q.How to control the quality of the products?

A.1)we have been manufacturing bending machinery for over 10 years, all of our machines with experienced fabrication and good assembling. 2)our factory are SGS, TUV inspected and machines are all CE certified.



Q.If your machine got problems, how can we do that?

A. 1).all of our machines are under one year guarantee period. and our CNC controlling system enjoy 3 years guarantee , everlasting technical support. 2).we have many distributor and local agent in your country, who can do on-site after-sale service. we can also dispatch our technician to your factory for big problem shooting in case of big problems.



Q.How can we learn to operate your machine?



A.1)you can send people to our factory to get training of how to use machine before delivering machine. or we are requested to send technician to your factory to do commissioning and basic training. 2). after commissioning , if you still not very skillful of the operation, we can give you online camera video training. 3). our sales team was 24 hours on-line for pre-sale, and after sale service. you can contact us at any time.
