ZD-2D-612
Greatcity
8463300000
2d wire forming bending machine is to produce kinds of 2D wire forms expertly with high precision and fast speed. Adopts brand servo motor and screen display with top controller.
Advantages & Feature:
1. The error of full servo motor is smaller, the bending efficiency is higher, and the error is smaller than that of similar products of hydraulic press.
2. CNC operation is simpler and easier to learn than the same type of PLC products. Generally, the simple program can be edited by oneself within half an hour with elementary school education.
3. Because all the servo motors are used, there will be no hydraulic failure, the failure rate is lower, the scrubbing is more convenient, and the pollution caused by oil pollution will not occur.
2d wire forming bending machine Application field :
1)Auto Industry area
2)Metal wire industry
3)Display table and cargo shelf
4)Furniture and Kitchen
5)Hardware industry
6)Mattress, Sofa spring area
7)Architecture area
8)Hardware Artcraft
ZD-2D-612 model 2d wire forming bending machine technical specification:
Model | ZD-2D-612 |
number of axles | 3 |
processing wire dameter range | 6—12mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 22 |
Servo motor power of feeding shaft(kW) | 4.5 |
Power of Servomotor for Cutter Shaft(kW) | 2.3 |
Power of Folded Axis Servomotor(kW) | 3.8 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 20-24pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 2300 |
Dimension (length*width*height mm) | 3250×1200×1300 |
2d wire forming bending machine video link on youtube :
https://www.youtube.com/embed/eeFWDMDSQjc?si=97KvVO0vICSzl9aa

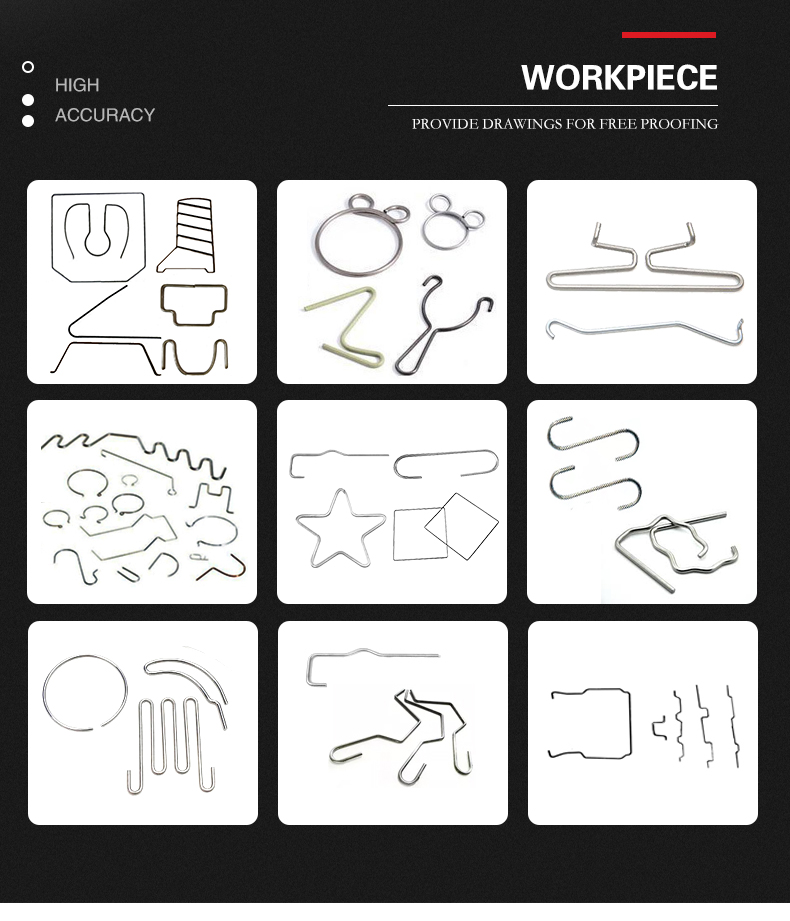

The process shapes of automatic 2d wire forming bending machine
Our machine could process 500 kinds shapes
Main accessories of wire bending machine
2d wire forming bending machine
Packaging
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
FAQ:
1. Q: Are you a factory or trading company?
A: We are a professional manufacturer with strong capability in research, development and manufacturing, you can not only get the factory price but also can enjoy the “ultra-high quality and professional design” unique to Feihong.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in xingtai City, Hebei Province, China. We have branch Office in Qingdao sea port city, which is very convenient for shipment.
All the customers, from home or abroad, are warmly welcome to visit us!
3. Q: Can you do OEM?
A: Yes, we can do OEM as client’s requirement.
4.Q: All products have a warranty?
A:YES, Our warranty term is One Year.
5.Q:What about the cnc 2d wire forming bending machine?
A:Usually 15-30 days after down payment, the exact delivery time is according to the production season and order quantity.
6. Q: What is the biggest advantage of the company?
A: Stable Better Quality and Perfect Service .
