JD-PR-8S
Greatcity
8474802000

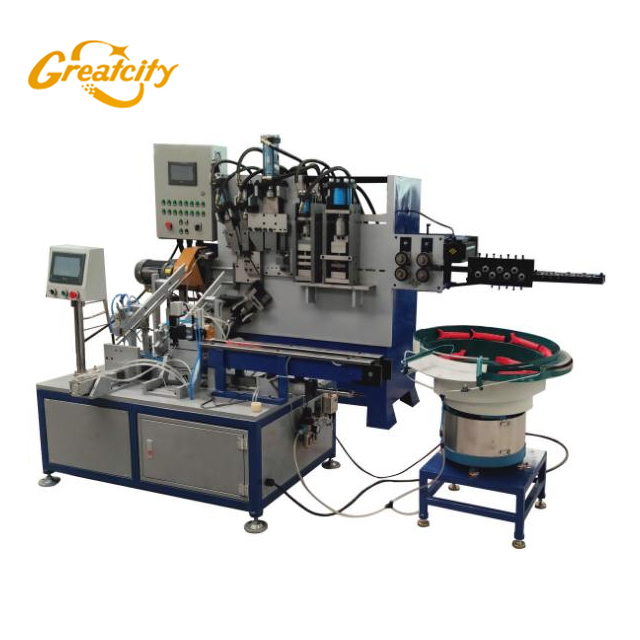

CE Certified High speed fully automatic 3-8mm Paint Roller Frame handle Making Machine
Paint Roller frame making Machine is to produce paint roller handle frame expertly. It can not only make lips stamping but also threading and end chamfering fully automatically. Plastic cover dressing device can be manual type or combined in line in automatic type for options and pin making machine is also available upon request. This is high efficient automatic machine which can save labor and electricity, and good output with high precision. Plalstic gripper was optional upon request.
Other advantages:
Fully automatic, saving in both time and labor cost
High precision, in ±0.1mm
High yield rate
Paint Roller frame making Machine Technical parameter:
| Model | JD-PR-8S | JD-PR-8RS | JD-PR-8MU | JD-PR-4 |
| Function | chamfering | chamfering +threading | overdue long type | pin punching |
| wire size | 3-8mm | 3-8mm | 3-8mm | 1.5-4mm |
| Feeding length | 0-500mm | 0-500mm | 0-900mm | 0-500mm |
| production capacity | 15pcs per minute | 12pcs per minute | 12pcs per minute | 25-30pcs per minute |
| motor power | 5.5kw | 5.5kw | 5.5kw | 5.5kw |
| dimension | 230*127*192cm | 230*127*192cm | 245*127*195cm | 180*120*178cm |
| weight | 1300kg | 1350kg | 1400kg |
Paint Roller frame making Machine video link
Note:Paint roller gripper can be interested by hand or by machine automatically,the first picture is fully automatic gripper insert mahcine ,PLC controlled and 7" touch screen .the second picture is manual gripper insert machine ,which can insert 3 grippers simultaneously,but need workers to put products into the matrix.
Xingtai Judu Technology Co.,LTD has more than 10 years professional production of Automatic Paint Roller frame making Machine , hanger production equipment experience, with high quality research and development, management and production. The team, relying on scientific and rigorous management, equipped with perfect means of production and testing conditions, is the birthplace of important metal wire and hanger equipment in China, and integrates research and development design, manufacturing and sales clothing as a whole enterprise. The company has independent research and development of a number of wire molding patents, company legal person comes to production and research and development frontline, independent research and development.
FAQ
1. How was about your Paint Roller frame making Machine quality?
1)we have been manufacturing bending machinery for over 10 years, all of our machines with experienced fabrication and good assembling. 2)our factory are SGS, TUV inspected and machines are all CE certified.
2. If your machine got problems, how can we do that?
1).all of our machines are under one year guarantee period. and our CNC controlling system enjoy 3 years guarantee , everlasting technical support.
2).we have many distributor and local agent in your country, who can do on-site after-sale service. we can also dispatch our technician to your factory for big problem shooting in case of big problems.3. How can we learn to operate your machine?
1)you can send people to our factory to get training of how to use machine before delivering machine. or we are requested to send technician to your factory to do commissioning and basic training.
2). after commissioning , if you still not very skillful of the operation, we can give you online camera video training. 3). our sales team was 24 hours on-line for pre-sale, and after sale service. you can contact us at any time.4. What is your payment term and Incoterm ?
1)we accept payment term as L/C and TT.
2) we accept Incoterm as Ex-works, FOB ,CNF and CIF.5. What is your offer composition?
our offer include machine , decoiler , mold or tools and Export wooden case packing
Packaging : standard export seaworthy wooden case packing.for Paint Roller frame making Machine
Delivery time: 10--15 days after receiving the deposit .
you can choose shipment by sea or train.
We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him ASAP.
