ZD-2D-612
Greatcity
8463300000

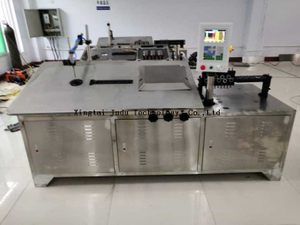

CNC controller 2d wire bending wire bending machine Made In China
Advantages & Features:
1.3 pairs feeding roller , feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable.
2.Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.
Application field:
1. Auto Industry area
2. Metal wire industry
3. Display table and cargo shelf
4. Furniture and Kitchen
5. Hardware industry
6. Mattress, Sofa spring area
7. Architecture area
ZD-2D-612 model Wire Bending Wire Bending Machine technical specification:
Model | ZD-2D-612 |
number of axles | 3 |
processing wire dameter range | 6—12mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 22 |
Servo motor power of feeding shaft(kW) | 4.5 |
Power of Servomotor for Cutter Shaft(kW) | 2.3 |
Power of Folded Axis Servomotor(kW) | 3.8 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 20-24pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 2300 |
Dimension (length*width*height mm) | 3250×1200×1300 |
Wire Bending Wire Bending Machine video link on youtube :
The process shapes of automatic Wire Bending Wire Bending Machine
Our machine could process 500 kinds shapes
Main accessories of wire bending machine
Packaging
Packaging information: standard export wooden case packing for Wire Bending Wire Bending Machine
We have our own farwarder. and check the delivery information timely.
You can also choose your own forwarder . We will contact with him ASAP.
Delivery time: 7-15 days after receiving the deposit
FAQ:
1.what is Wire Bending Wire Bending Machine Packaging?
Free fumigation safe Wood case package.
2.what is MOQ?
1set can be acceptable for trail order.
3.can we do OEM and ODM?
Can changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
4.what is the machine warranty?
Warranty 1 years
5.what time for delivery?
within 7-10 days for our own design.(motor:380v 50hz 3phases)
15-20 days for cusmoized model.
6.How to do payment?
TT, 40%-50% in advance as deposit ,60% balanced paid off when we finish the production and test well before shippment.
