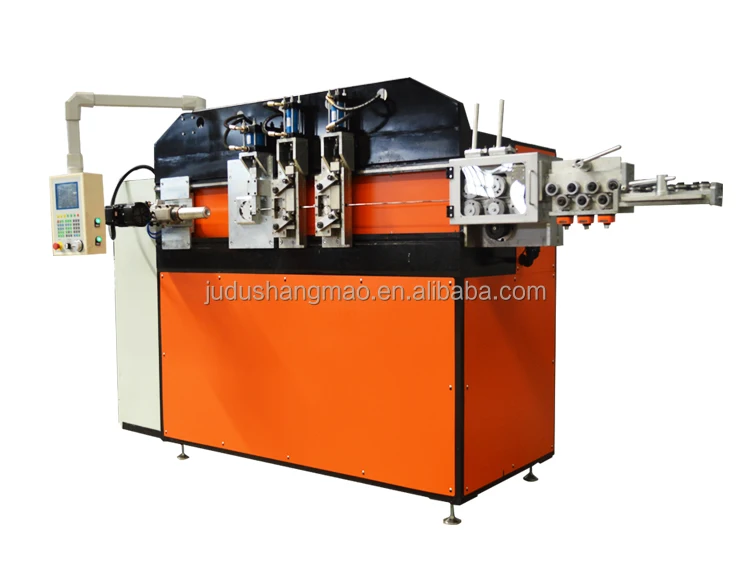

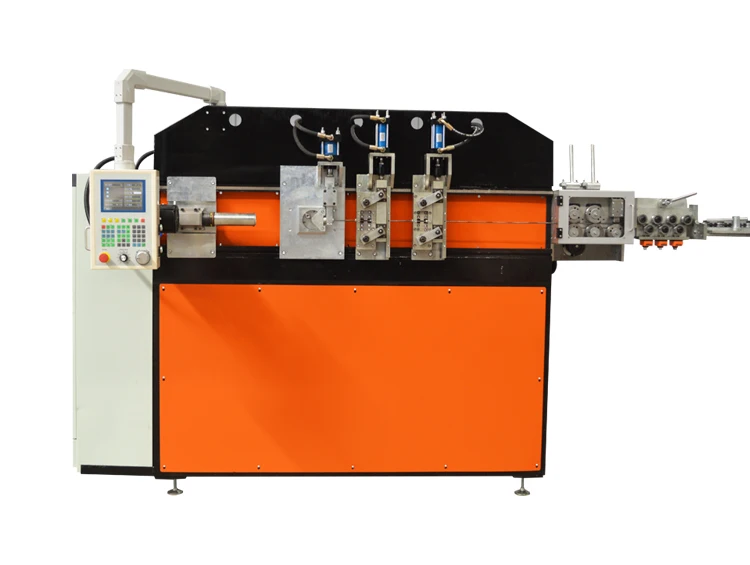

CNC paint roller handle frame forming equipment / paint roller handle frame making forming machinery automatic

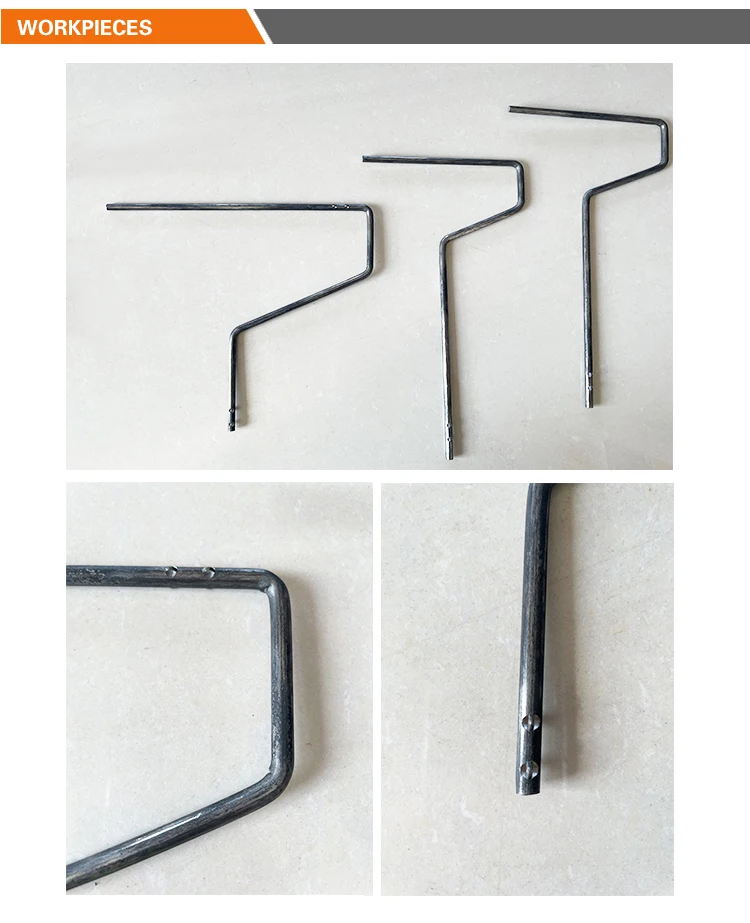

This paint roller handle making machine is with 2d wire bending machine. It is multi-functional. It can make all kinds of paint roller handle and other shapes. This machine can process wire and rebar steel. It can deal with 4-8mm diameter steel.
The multifunctional paint roller handle making machine is very easy to change mold.
Technical improvement: the multifunctional roller brush support forming machine with electric bending system uses the traditional 2D wire rod forming machine, the electric bending system is matched with the hydraulic cutter, and the forming parameters are set through the CNC controller, and the speed is adjustable to replace the existing hydraulic forming mold. The forming is no longer limited by the mold, there is no need to replace the mold, only the controller parameters can be replaced. The equipment is equipped with chamfering machine and flattening system, The molding efficiency is higher and the operation is simpler. The mold adopts mobile modular design, so that the equipment can produce all types of roller brush supports on the market.
Technical Parameter of the paint roller frame and handle machine
| model | ZD-2D-8S paint roller handle making machine |
| Voltage | Three phase 380v /can customized |
| Wire feeding servo motor | 3.8kw |
| Bending servo motor power | 3.8kw |
| Oil pump motor power | 4kw |
| Chamfer motor power | 0.75kw |
| Pressure | 0.5MPa |
| Steel wire diameter | 5-8mm |
| speed | 15-20 pcs/min |
| Spare parts | 2 set mould |
| dimension | Length:3.5m*1.5*2.1m Packaging size 2.4m*1.5*2.1m |
| weight | 1200kg |
Xingtai Judu Technology Co., Ltd. is a professional equipment manufacturer integrating scientific research, production and sales. Since its establishment, Judu Machinery has been integrated with domestic and foreign technologies, and the technical team has continued to develop and innovate products. Our company specializes in producing thread rolling machine and various metal wire bending machine series,such as 2d/3d wire bending machine, bucket handle making machine, paint roller handle frame making machine.It also provides customized production line services for customers. Judu has always been adhering to the business philosophy of "impress the market with integrity, occupy the market with quality, and win the market with service", as well as perfect pre-sales technical guidance and after-sales technical support services to show corporate image with quality! Welcome new and old customers to visit and buy!
packaging information: standard export wooden case packing or as customers' requests. You can choose by sea or by air. We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him as soon as possible.
delievery time: 20-25 days after receiving the deposit.
1. Do you have any warranty?
Yes, we have. One year warranty on host machine is given. Six months free replacement warranty for spare parts.
2. How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
3. What certification do you have?
All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.
4. Will you teach how to use the paint roller frame and handle machine?
Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions.
5. How about the shipment?
The machine will be shipped within 2-3 days after the receipt of your payment.
6. Can visit your factory?
Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term.
