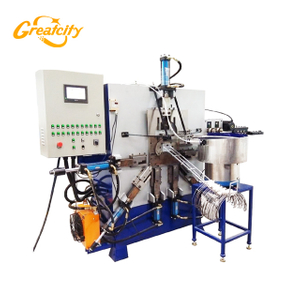

China factory industrial computer high output CNC bucket handle making machine
Hydraulic type bucket handle making machine, easier for adjusting and maintaining; Equipped with automatic gripper feeding device. We also have different machines for different kinds of handdle, so please contact with me, I can give you more professional suggestions.
Main features for cnc bucket handle making machine:
1) Hydraulic drive, simple structure
2) Gears are made by 40Cr, adjusted and quenched, HRC 52-55, shafts are made by 45# steel, adjusted
3) Feeding & straightening and forming rollers are made by good steel alloy, heat treated HRC 58-62
4) Automatic feeding plastic tubes for handles by vibrating plate.
CNC bucket handle making machine technical parameters:
Model | JD8R | JD5R | JD5ER | JD5E | JDPF5 |
Function | Rivet end | Rivet end | Mixed end | East-west | Outward hook |
Wire size | 3.0-8.0 | 2.0-5.0 | 2.0-5.0 | 2.0-5.0 | 2.0-5.0 |
End stamping
| Yes | Yes | Yes | No, east-west end | No |
Plastic cover | Yes | Yes | Yes | Yes | No |
Feeding length | 700mm | 700mm | 700mm | 700mm | 700mm |
Production rat(pcs/minute) | 10~12 | 12~16 | 12~16 | 18~20 | 20~22 |
Motor power | 5.5kw*2 | 5.5kw*2 | 5.5kw*2 | 3.75kw*2 | 5.5kw |
Size(mm) | 1910X1100X1980 | 1910X1100X1980 | 1910X1100X1980 | 1890X1100X1950 | 1850x1100x1840 |
Weight | 1400KG | 1300KG | 1300KG | 1300KG | 1200KG |
CNC bucket handle making machine video on youtube :
Package : standard export wooden case packing for this model CNC bucket handle making machine
Delivery time : about 20 days after receipt of deposit
Xingtai Judu Technology Co.,LTD has more than 10 years professional production of 2d and 3d metal wire bending machine equipment, CNC bucket handle making machine ,hanger production equipment experience, with high quality research and development, management and production. The team, relying on scientific and rigorous management, equipped with perfect means of production and testing conditions, is the birthplace of important metal wire and hanger equipment in China, and integrates research and development design, manufacturing and sales clothing as a whole enterprise. The company has independent research and development of a number of wire molding patents, company legal person comes to production and research and development frontline, independent research and development.
If any question for CNC bucket handle making machine ,please feel free to contact us !
