JD-3D-80
Greatcity
8463300000

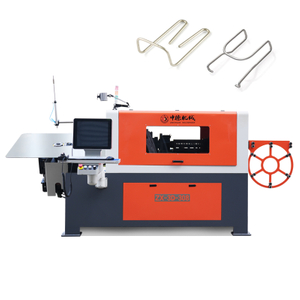

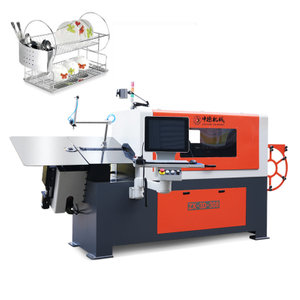

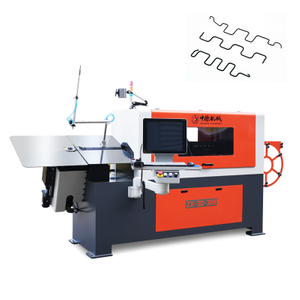

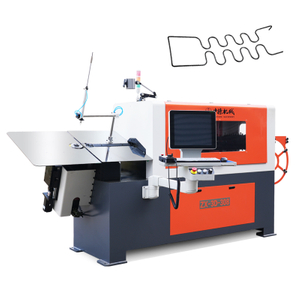

Advantages & Feature of automatic wire bending machine :
automatic wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki Servo motorand screen display with Taiwan controller.
5 pairs feeding roller, feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotatings more fast and light, turning angle is more precise and stable.
The head structure is light and flexible, the arm and the wire feeding are completely separated, really realized rotating arm does not rotate the wire, wire feeding more stable, more efficient.
Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.
Computer has Chinese and English language, easy use. All motor can be controlled together or individual.
Self checking system is included in the machine. Machine can be stoped if machine found there is unqualified wire product..
During production, operator can change any sizes on computer.
The lubricating oil supply system can make sure machine long time running.
If machine find out there is no more wire, wire break or kinking wire , machine will stop automatically. And our machine can be speed up automatically once machine is running in good condition.
The head structure is light and flexible, the arm and the wire feeding are completely separated, really realized rotating arm does not rotate the wire, wire feeding more stable, more efficient.
The machine can access to the internet, to achieve remote operation, easy and convenient handling of training and after-sale problems.
3d wire bending machine can satisficated client's needs.We will upon customer 's reqiure to make machines.
Pls contact freely, i will show more testing video 3d cnc wire forming machine as your request.
automatic wire bending machine technical specification
Model No | JD-3D-51000 | JD-3D-51200 |
No. of Axis | 5 axis | 5 axis |
input OD of Wire | hard material: 3-7mm soft material:4-8mm | hard material: 4-8mm soft material:5-12mm |
No. of Feeding Round | 4 set | 4set |
Power of Wire Feeding Motor | 5.5kw | 5.5kw |
Send shaft reducer | 1:5 | 1:10 |
Power of Turning Motor | 5.5kw | 5.5kw |
Power of Wire Cuter Motor | 1.0kw | 1.0kw |
Power of Moving Motor | 1.0kw | 1.0kw |
Power of Angle Control Motor | 2.0kw | 2.0kw |
Angular speed reducer | 1:5 | 1:10 |
Weight of Machine | 3800kg | 3800kg |
machine wight | 380V/50HZ/3PH | 380V/50HZ/3PH |
mahcine size | 3600mm X 1600mm X 2070mm | 3600mm X 1600mm X 2070mm |
automatic wire bending machine video on youtube :
https://www.youtube.com/@mengrita9445
Application Field of automatic wire bending machine:
1) Auto Industryarea
2) Netal wire industry
3) Furniture and kitchen
5) Hardware industry
6) Mattress, sofa spring srea
7) Architecture area
8) Hardware Artcrafe
Pre-sale Service
1.Supply item design,process design.
2.Help you to chose the fitest machine.
3.Making the machine according to your requirement.
Sale Service
1.Acceptance equipment together with you .
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for 2-5 years.
2.Quality problem,we will sent you the accessories.
3.within whole wanranty(without accessories charge).
The package of automatic wire bending machine : In standard export wooden case
Delivery time:within 15 days after receiveing your advanced payment.
Payment terms:. 30%T/T in advanced payment,the left payment should be paid after we finish our production.( we will take machine and packing photoes for your checking )
We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him ASAP.
Our Comopany:
Founded in 1990, Xingtai JUDU Technology Co.,LTD research and development ,product and sell 2d wire bending machine , 3d wire bendng machine and wire bending machine with butt welder around fifteen years ;
We are engaged in machinery export for more than 8 years;
Participated in domestic and international machinery exhibitions many times .
There is a research and development team;
Machine quality assurance and ability to provide OEM, personalized service.
Many model machine have CE certifacate and patent certificate;
We have our own production workshop;the factory is large in scale and strong in strength; factory direct sales ,so price have advantage.
We have our own freight agent and deliver the goods on time .
At the same time, we can produce other kinds of machinery . These products have been exported to the USA, Germany, Pakistan and Australia....
Welcome you to negotiate business!
