F14
Greatcity
8462219000

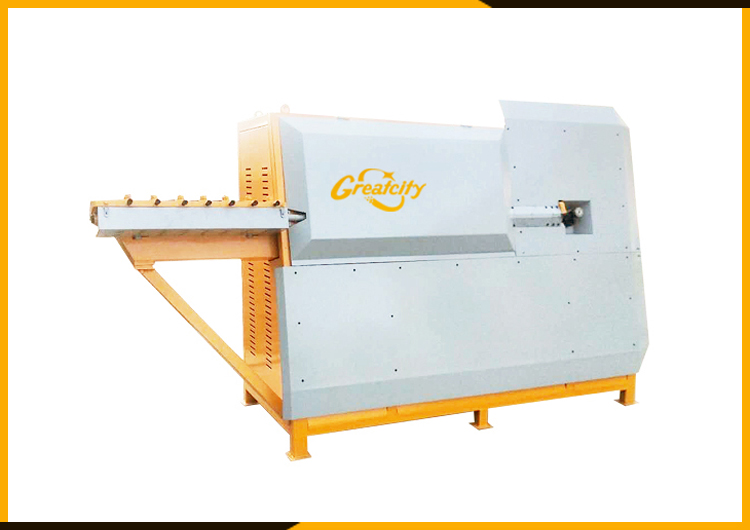

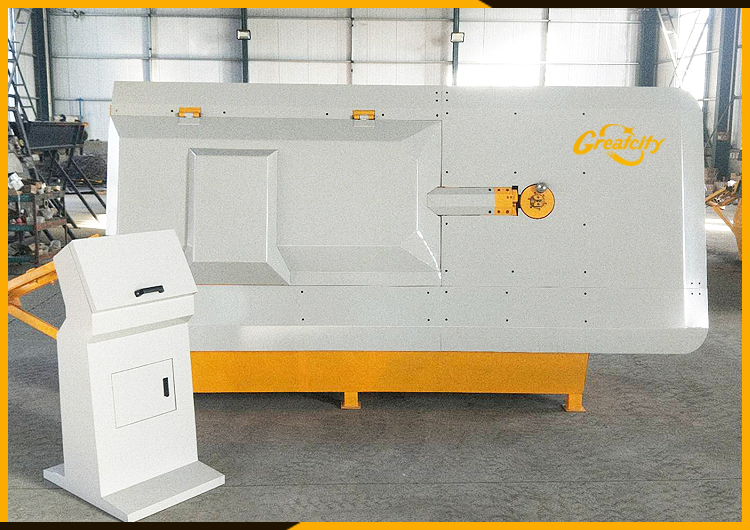

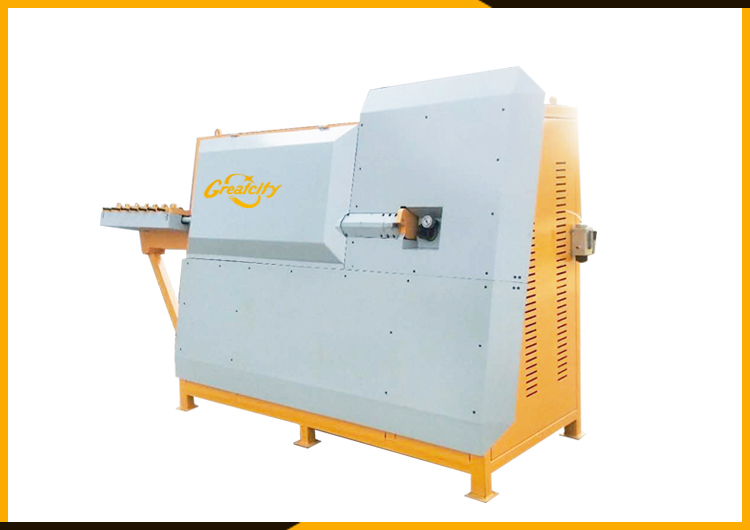

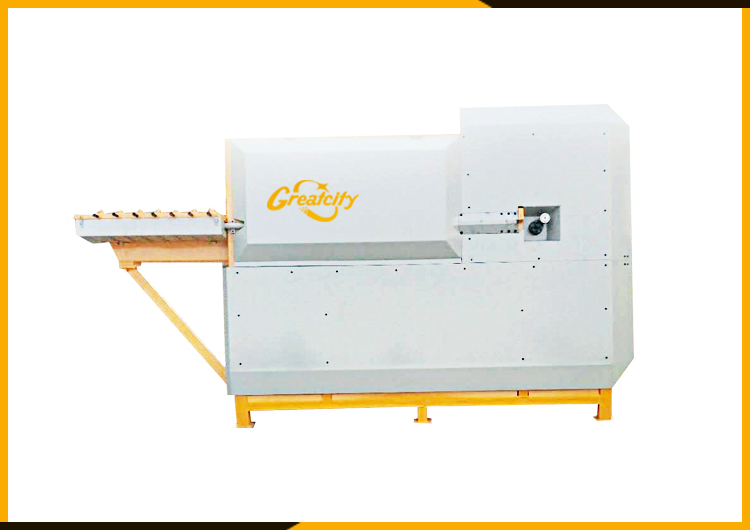

GreatCity is a Manufacturer of rebar bending and cutting machine automatic 16mm that has experience in exportation of different models of cnc 4 motors bending machine which has different series(F-series and R-series) according to the diameter of the wire.
Below will present the R-series model with its proper specification defined the aptitude of high production of different shapes adapted in architectural area as different engineers can use.
As it is a type of air brake system the machine is fully equipped with the necessary part that ables the machine to work for a long run.
We are providing you a certified machine adequate for any construction utilization.
MODEL | F14 |
process diameter of single rebar | 4-14mm |
process diameter of double rebar | 4-12mm |
max bending angle | 180 |
max towing speed | 120m/min |
max bending speed | 1000 |
length accuracy | 1mm |
angular accuracy | 1 |
processing quantity | 2 |
power | 380V |
steel processing shape | 150type |
working temperature | -5-40 |
weight | 2100kg |
dimension | 3400*1500*1800mm |
direction of processing | forward direction and opposite direction |
Type | Hydraulic |
video link of rebar bending and cutting machine automatic 16mm
https://www.youtube.com/@mengrita9445
1. What is the voltage/phase for this rebar bending and cutting machine automatic 16mm?
220V 50Hz/single phase ,380V 50Hz/three phase ,
also can made as the clients’ need
2. Can you make the logo or company name on the products or package?
Sure. customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
3. Do you have the products in stock?
Yes , We have some model products can supply to you.
4. Can we use English or other languages on the display screen?
Yes, can. The system can achieve many languages, such as English, French, Russian, Spanish, and other languages
5. How to choose a model?
First you could check with parameters list, or advise the requirement directly, then we would help you to choose a model accordingly.
6. How about After-sales service?
We freely send technicians to your country and 24 hours on-line service
