Z28-50
Greatcity
8462419000

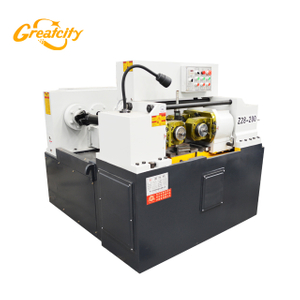

1.Two spindle of the bar thread rolling machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Two rolling wheels make the work as required and other thread shape by rolling.
2.This is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.
3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.
4.This is a hydraulic power system, it is mainly to make the active spindle seat to feed and return .
5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.
ZP28-50 model bar thread rolling machine techinical specification:
| Model | Z28-50 |
| Processing range | ∅6-12mm |
| Rolling shaft | ∅75mm |
| Rolling axis inclination angle | ±10° |
| Spindle drive power | 11kw |
| Dimensions | 1600*2200*1350mm |
| Weight | 1800kg |
bar thread rolling machine video link on youtube :
https://www.youtube.com/watch?v=keU5VcuwhEg
1. Are you a factory or trading company?
We are the factory, which in this field for more than 20 years.
2. How should I do if meet some trouble while using?
We can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
3. What’s your MOQ ?
1 set.
4. How long can we get the bar thread rolling machine?
we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport.
5. What about Payment term?
30% of wire transfer (T/T) is used as prepayment for wire transfer, and 70% of the remaining balance is paid before shipment. Western Union, letter of credit, trade guarantee, etc.
6. How long is the guarantee?
we promise guarantee as one year for non-human damage factor.
7. How does your factory do regarding quality control?
Quality is priority. Our factory has gained ISO 9001 and CE authentication.
