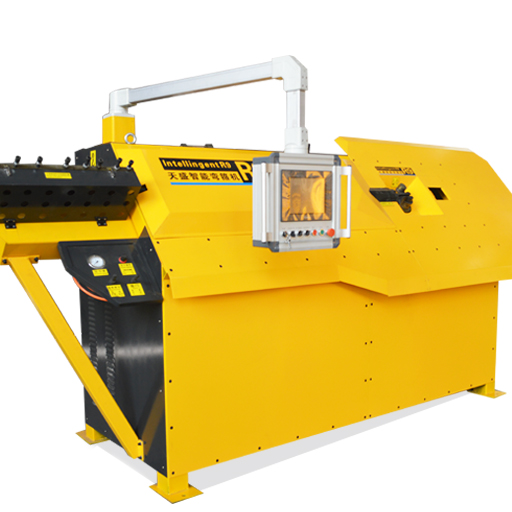

Widely Used 4-12mm Automatic Rebar Stirrup Bender Bending Machine
GreatCity is a Manufacturer of 4-12mm bar bending machine that has experience in exportation of different models of cnc 4 motors bending machine which has different series(F-series and R-series) according to the diameter of the wire.
Below will present the R-series model with its proper specification defined the aptitude of high production of different shapes adapted in architectural area as different engineers can use.
As it is a type of air brake system the machine is fully equipped with the necessary part that ables the machine to work for a long run.
We are providing you a certified machine adequate for any construction utilization.
R8 4-12mm bar bending machine parameter :
Model | R8 | Number of processing | 2 |
Single bar diameter (mm) | 5-12 | Power (kw) | 21 |
Double bar diameter (mm) | 5-10 | Shape processing (kinds) | 500 |
Max bending angle ( °) | 180 | Working temperature (°C) | -5 -- 40 |
Max towing speed (m / min) | 130 | Weight (kg) | 2980 |
Max bending speed ( °/ sec ) | 1460 | Dimensiion (mm) | 3510*1510*2310 |
Length accuracy (mm) | 1 | Average power(kw / h) | 7 |
R8 4-12mm bar bending machine video link on youtube
https://www.youtube.com/watch?v=tshb3dVV0mM
Finshed product of 4-12mm bar bending machine
Raw material is long straight ribbed bar ,to make Rectangle and square shape etc.
Also can make long bar hook ,then 4-12mm bar bending machine need add long platform:
back detailes pictures of R8 4-12mm bar bending machine:
The feeding Straightening wheel of R8 4-12mm bar bending machine:
R8 4-12mm bar bending machine with auto collector
Pay off for 4-12mm bar bending machine
4-12mm bar bending machine automatic packing in export standard wooden case
can shipping by sea or railway .
Greatcity customer visit 4-12mm bar bending machine
FAQ
1.What is the voltage/phase for this 4-12mm bar bending machine ?
220V 50Hz/single phase ,380V 50Hz/three phase ,
also can made as the clients’ need
2. Can you make the logo or company name on the products or package?
Sure. customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
3. Do you have the products in stock?
Yes , We have some model products can supply to you.
4. Can we use English or other languages on the display screen?
Yes, can. The system can achieve many languages, such as English, French, Russian, Spanish, and other languages
5. How to choose a model?
First you could check with parameters list, or advise the requirement directly, then we would help you to choose a model accordingly.
6. How about After-sales service?
We freely send technicians to your country and 24 hours on-line service
