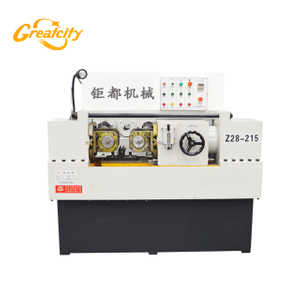

Z28-215 type automatic rebar thread rolling machine main structure,performance and features
The principle of cold rolling small modulus involute spline on thread rolling machine.L, R are the same parameters of a pair of involute rolling wheels,respectively, installed in the two spindle rolling machine,and drive in the same drive with the same direction of rotation.R wheel can be driven by the cylinder radial feed movement,L wheel can be adjusted by the adjustment mechanism and the R wheel coincides with the indentation P surface.
The workpiece P is positioned and clamped by two center holes, and the adjusting fixture can make the workpiece move axially.When the force is exerted,the workpiece can swing around an axis at a point O and the automatic rebar thread rolling machine tool spindle to ensure that the workpiece is always in the cold rolling process Keep the two rolling wheels in a free-rolling state,and at the same time facilitate the clamping of workpieces.
Rolling wheel structure size, shape and position tolerances and technical requirements with reference to the rolling wheel and cylindrical measuring gear,the normal length of the rolling wheel or cross-bar M spline data from the gear work, the required material can be used Cr12MoV (Hardness 59 ~ 62HRC).
ZP28-215 model automatic rebar thread rolling machine techinical specification:
SPECIFICATIONS FOR GREATCITY THREAD ROLLING MACHINE ZP28-215 | ||||
Rolled thread range | mm | Max diameter | Φ8-100 | |
mm | Pitch of screw | 0.5-8 | ||
Hobbing wheel range | mm | Outside dia | Φ170--φ220 | |
mm | Hole dia | Φ75 | ||
mm | Max width | 120 | ||
Main axis obliquity | +-5angle | |||
Maximum rolling pressure | kn | 300 | ||
Main axis revolution(exchange gears) | rpm | 26,35,48,62 | ||
Main axis transmission power | kw | 11 | ||
Hydraulic transmission power | kw | 5.5 | ||
machine weight | kg | 3800 | ||
Dimensions | mm | 2150*1800*1600 | ||
automatic rebar thread rolling machine video link on youtube :
https://www.youtube.com/watch?v=haohXOlrokk
https://www.youtube.com/watch?v=CKv3zy9CtPQ
Feel free to contact at any times if any automatic rebar thread rolling machine questions!
