| Production Capacity: | |
|---|---|
| Application: | |
| Fit For: | |
| Function: | |
| Color: | |
| Quantity: | |

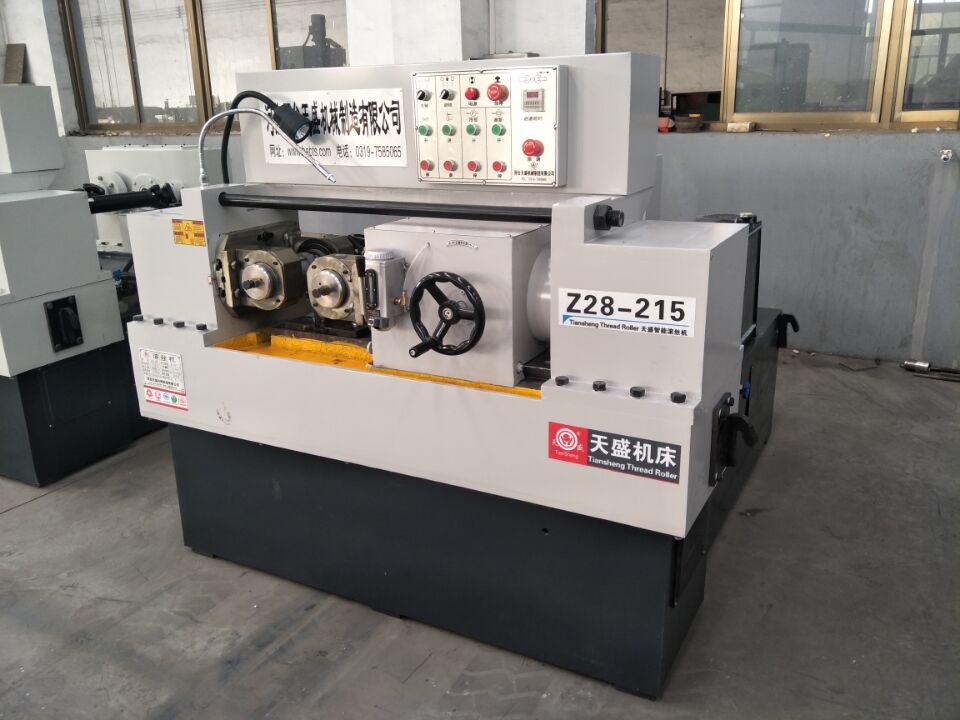

Thread Rolling machine main organism, rotating box, fixed spindle seat, movable spindle seat, hydraulic system and electrical components. The two main axes of the thread rolling machine are synchronized and rotate in the same direction. The right spindle is fed in the horizontal direction driven by the rolling pressure, and the two rolling rollers roll the workpiece to make the desired thread and other shapes. Fixed spindle seat and movable spindle seat is mainly used for installing roller wheel and rolling wheel tooth position adjustment.
ZP28-215 model thread rolling machines for sale techinical specification:
SPECIFICATIONS FOR GREATCITY THREAD ROLLING MACHINE ZP28-215 | ||||
Rolled thread range | mm | Max diameter | Φ8-100 | |
mm | Pitch of screw | 0.5-8 | ||
Hobbing wheel range | mm | Outside dia | Φ170--φ220 | |
mm | Hole dia | Φ75 | ||
mm | Max width | 120 | ||
Main axis obliquity | +-5angle | |||
Maximum rolling pressure | kn | 300 | ||
Main axis revolution(exchange gears) | rpm | 26,35,48,62 | ||
Main axis transmission power | kw | 11 | ||
Hydraulic transmission power | kw | 5.5 | ||
machine weight | kg | 3800 | ||
Dimensions | mm | 2150*1800*1600 | ||
thread rolling machines for sale video link on youtube :
https://www.youtube.com/watch?v=haohXOlrokk
https://www.youtube.com/watch?v=CKv3zy9CtPQ
what is thread rolling machines for sale ?
Mainly used for all kinds of external thread, including the common thread, trapezoidal thread and modulus thread. It also can do the rolling process, forming, slidabrading, knurling etc..
Apply for all kinds of carbon steel, alloy steel and non-ferrous metals, the elongation is more than 10%, the compressive strength is less than 100 KGF/m m2.
Packaging information: standard export non-fumigation wooden packing for this product.you can choose by sea container or air. We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him in the first time.for thread rolling machines for sale
Shipping time:within 15 days after receiving the deposit.
1. Are you a factory or trading company?
We are the factory, which in this field for more than 20 years.
2. How should I do if meet some trouble while using?
We can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
3. What’s your MOQ ?
1 set.
4. How long can we get the goods?
we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport.
5. What about Payment term?
T/T(Telegraphic Transfer ) --30% as prepayment by T/T, after seen the copy of the B/L sent by fax, the balance of 70% should be effected . Western Union ,L/C ,Trade Assurance,Etc.
6. How long is the guarantee?
we promise guarantee as one year for non-human damage factor.
7. How does your factory do regarding quality control?
Quality is priority. Our factory has gained ISO 9001 and CE authentication.
