Z28-30
Greatcity
8462419000
machine tube thread rolling is a multifunctional cold extrusion rolling thread machine, the workpiece in the cold rolling pressure range can be made to straight lines, twill, spur, helical and bevel gear spline rolling; straightening, necking, rolling light and various rolling forming. The machine has safe and reliable electric liquid control system and implementation, which can make each work cycle in manual, semi-automatic and automatic selection in three ways.
The cold rolling is an advanced non cutting process, which can effectively improve the internal and surface quality of workpiece, the radial compressive stress produced during processing, and can significantly improve the fatigue strength and torsion strength of the workpiece. It is an ideal process with high efficiency, energy saving and low consumption.
SPECIFICATIONS FOR GREATCITY machine tube thread rolling price ZP28-30- | |
Diameter for the threads rolled | φ4-42/mm |
Range of pitch rolled | 0.7-3.5P |
Length of thread rolled | In feed or Thru feed |
Spindle speed | 36/47/60/78rpm |
Outside diameter of rolling die | φ135mm-φ170mm |
Inside diameter of rolling die(keyway) | φ54mm |
Thickness of rolling die | 110mm |
Min.center distance between die spindles | 120mm |
Max.center distance between die spindles | 240mm |
Output(pcs/min) | 5-35 pcs/min |
Machine motor | 5.5HP |
Hydraulic motor | 3HP |
The highest feed pressure | 15T |

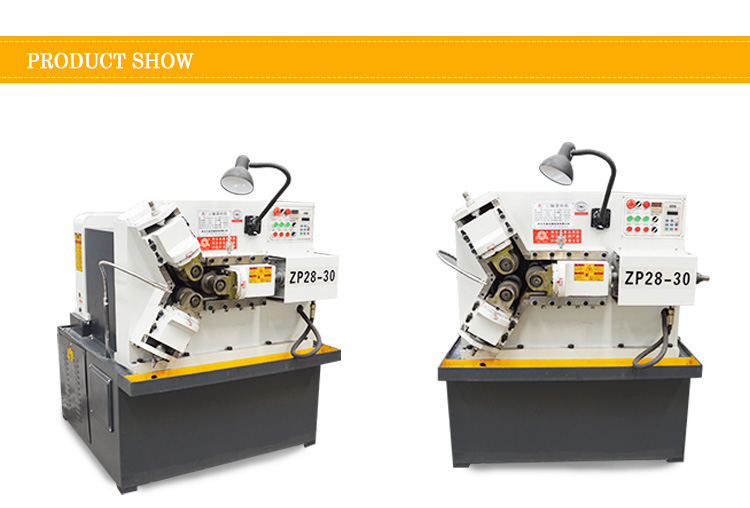

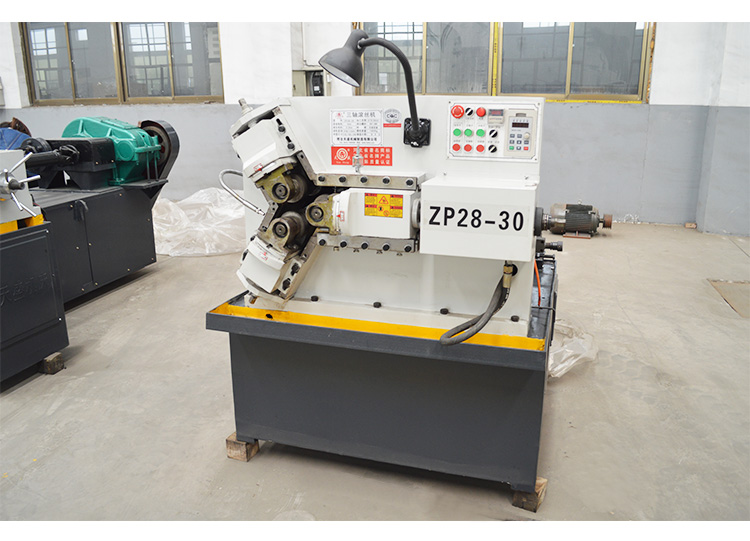

Z28-30 machine tube thread rolling images show :
Classification:
this machine is divided into two axis rolling machine and three axis thread rolling machine
1, two axis wire rolling machine has very strong superiority in hardware building, automobile and motorcycle fittings, traffic power, standard parts.
2, three axis machine tube thread rolling is triangle support in the pipe thread processing industry, true fidelity roundness, concentricity and perpendicularity
if any machine tube thread rolling question ,feel free to contact me !
